RME Multiface II

A compact state-of-the-art 36-channel 96KHz Audio Interface.




The Multiface II is not only multi because of the many different interface formats supported, but also multi-Channel. The small box using half the space of a 19" rack includes outstanding power and extensive features.

Based on RMEs award-winning Hammerfall technology and equipped with the latest circuit designs of the Fireface 800, the Multiface II offers ADAT optical I/O, SPDIF I/O, MIDI I/O, word clock I/O and a separate hi-power monitor output.

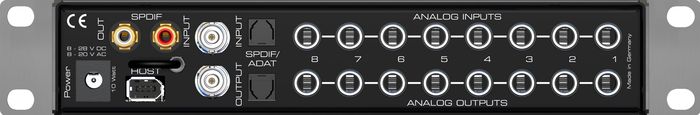

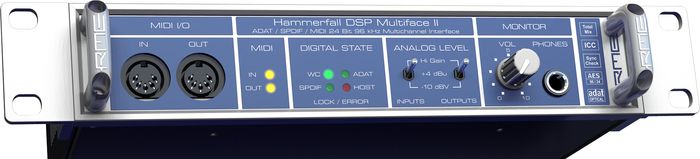

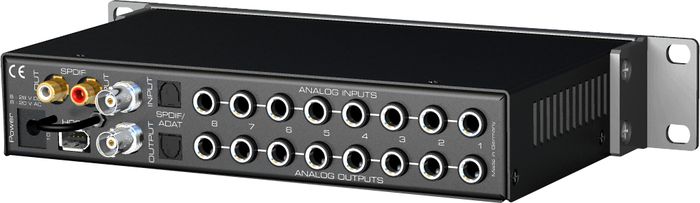

On top there are 8 analog inputs and outputs, balanced and 24-bit/96kHz. All this can be used on laptops as well as on desktop computers with lowest latency and minimal CPU load. The front panel hosts some useful status LEDs, like MIDI state, lock state of the digital inputs and error state of the host-bus. Additionally there's a high-quality 24-Bit/96kHz analog line output, also usable with headphones, and one MIDI I/O. The rear of the Multiface II shows unrivalled connectivity: 8 analog line I/Os on 1/4" TRS jacks (balanced, 24-Bit/96kHz), ADAT optical I/O (switchable to SPDIF optical), SPDIF I/O coaxial, word clock I/O and MIDI I/O. The headphone output in hi-power technology offers high levels, even with low level headphones. Hence the headphone is direct usable with ASIO Direct Monitoring.

Digital I/Os: One ADAT optical I/O provides eight more channels. The coaxial SPDIF I/O is AES/EBU compatible. The Multiface II can be used with laptops as well as desktop computers. The connection to laptops is achieved via a CardBus card or an ExpressCard, the connection to desktops via a PCI card or PCI Express card. These interfaces are sold separately.



Features

8 x analog line I/O, 24-Bit/96kHz, SNR 111 dBA, 1/4" TRS jacks
1 x ADAT digital I/O
1 x SPDIF digital I/O
1 x Word clock I/O (BNC)
1 x MIDI I/O, 16 channels high-speed MIDI
1 x hi-power analog line/headphone output, separate output for independent submix
Hardware level calculation: freely scalable level meters, peak and RMS calculation without CPU load
DIGICheck, RMEs unique metering - and analyse tool
TotalMix: 720 channel mixer with 40 bit internal resolution. MIDI remote controllable.
S/MUX poured in hardware: 4 channels 24-Bit/96kHz for record and playback via ADAT optical
