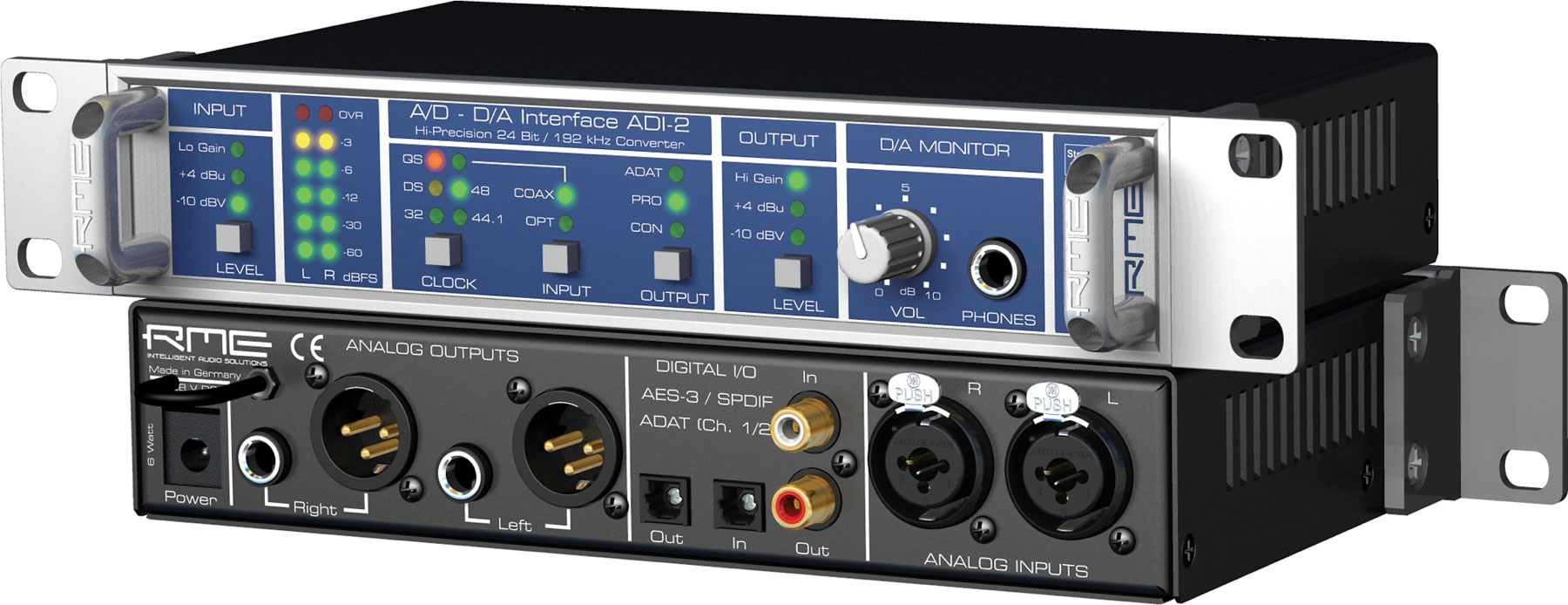

RME ADI-2

Extraordinarily Flexible 2-channel High-end AD/DA Converter

The RME ADI-2 is a both compact and extremely flexible 2-channel
Hi-End AD/DA-converter. The small 9.5" RME ADI-2 offers top notch
AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192kHz. Its
ability to use SPDIF, AES and ADAT format provides outstanding
compatibility.


RME ADI-2 at a Glance:


Balanced inputs and outputs, and monitoring via headphone out.

SteadyClock for optimal converter quality, 24-bit/192kHz.

Digital Connectivity

Clear layout makes the ADI-2 easy to use out of the box.

Runs on a wide range of power supplied.


Balanced inputs and outputsThe ADI-2 is equipped
with a balanced stereo line input via two Neutrik XLR/phones combo
jacks, a balanced stereo line output with XLR plus separate and
simultaneously active phone jacks, as well as an adjustable headphone
output.


SteadyClockThe analog inputs and outputs use the
same circuit design as RME's famous ADI-8, guaranteeing outstandingly
low noise and distortion. Three different settings for the input and
output levels each provide perfect compatibility on analog domain. A
further highlight is SteadyClock, a proprietary clock technology for
maximum jitter suppression. SteadyClock guarantees superb sound quality
completely independent from the quality of the current reference clock.
The ADI-2 uses the latest generation of AD/DA-converters capable of up
to 192kHz sampling frequency at a S/N ratio of 110dB.


Digital ConnectivityThe RME ADI-2 has more to offer
than tremendous sound, it also gives you exciting digital connectivity.
The RME ADI-2's transformer-balanced coaxial (RCA) SPDIF I/O has
switchable Channel Status to make it fully AES/EBU compatible. The
optical TOSlink I/Os can handle up to 192kHz and also serve as ADAT I/Os
with up to 96kHz sample rate. You can even use the RME ADI-2's SPDIF
input and ADAT output or vice versa in AD/DA mode.


Clear Layout and Distinct LabelingThe clear layout
and the distinct labeling of the RME ADI-2's front panel with its
functional buttons, the informative status displays, a six-LED level
meter as well as the tidy functional back panel make the RME ADI-2 easy
to operate the ADI-2 right out of the box. Protective rack handles and a
strain-relief for power cord and audio cables are further useful
details that make the ADI-2 even more unique.


Wide Range Of PowerFollowing the 'Universal Power
Supply' philosophy of RME's Digiface, Multiface, QuadMic and OctaMic,
the ADI-2 comes with an external switching power supply. Its additional
internal switching power supply has been specially designed and
optimized for audio applications. It accepts any voltage from 7 to 30 V,
be it AC or DC, and even runs on batteries and rechargeable batteries.


RME ADI-2 Features:


192kHz sampling frequency at a S/N ratio of 110dB.

Balanced inputs and outputs

Monitoring via headphone out

SteadyClock for optimal converter quality

3-stage hardware input and output level control

Runs on a wide range of power supplied.

3-stage hardware input and output level control.

Neutrik XLR/phones combo jacks

Balanced stereo line output with XLR

Separate and simultaneously active phone jacks

Transformer-balanced coaxial (RCA) SPDIF I/O

AES/EBU compatible.

Six LED level meter

Protective rack handles

External switching power supply

Accepts any voltage from 7 to 30 V, AC or DC, runs on batteries and rechargeable batteries.


Whatever it is - simply get connected with the RME ADI-2!


Tech Specs



Channels
2


A to D
Yes


D to A
Yes


Sample Rate
192kHz


Bit Depth
24-bit


Analog Inputs
2 x XLR/TRS combo


Analog Outputs
2 x XLR, 2 x TRS, 1 x Heaphones


Digital Inputs
1 x S/PDIF, 1 x ADAT optical


Digital Outputs
1 x S/PDIF, 1 x ADAT optical


Clock Inputs
No clock inputs


Clock Outputs
No clock outputs


Other I/O
No other I/O


Expansion Slots
No expansion slot


Rack Spaces
1/2U


Height
1.75"


Depth
6.1"


Width
8.6"


Weight
3.3 lbs.


Manufacturer Part Number
ADI2
