dbx 234s Stereo 2/3 Way Mono 4-Way Crossover

Great performance, ultra low-noise, and rugged reliability.

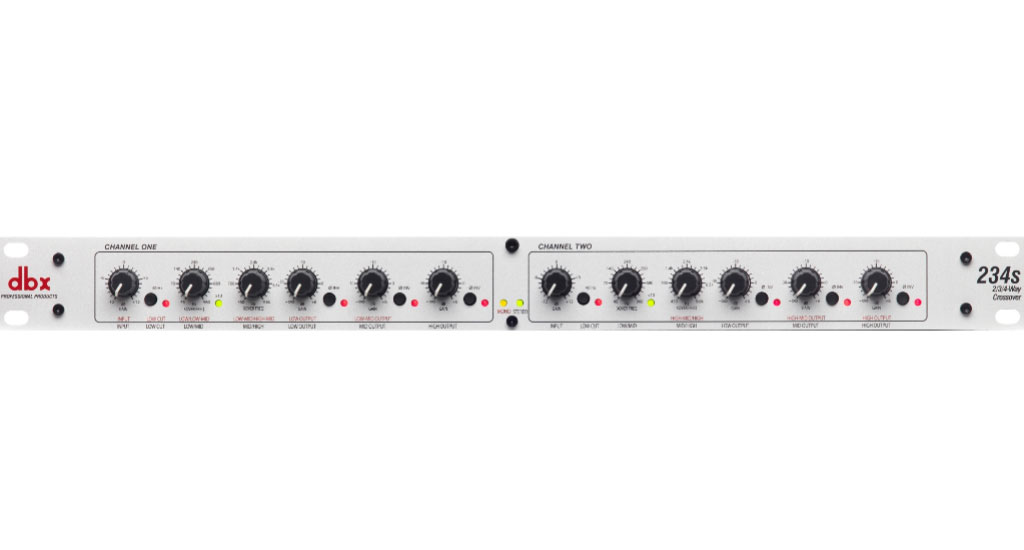

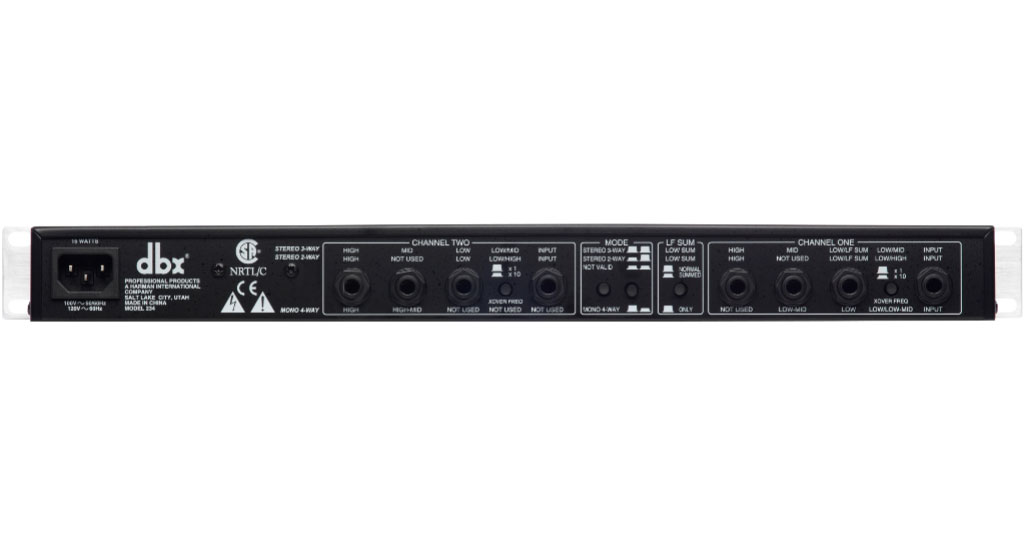

The dbx 234s Stereo 2/3 Way Mono 4-Way Crossover
is a dual channel crossover with all the features you would expect from a
professional product. It features Linkwitz-Riley 24dB per octave
filters, independent output gain controls for level matching, output
phase inversion, 40 Hz low cut filter, and optional mono summing of the
low frequency (subwoofer) output. Everything in the design exudes great
precision from the solid "click" controls to the high quality 1/4" TRS
inputs and outputs.

The 234s uses precision filters to separate
the audio signal and direct the correct frequencies to your loudspeaker
drivers. By directing only the specific frequency bands to each speaker
driver the 234s leaves your amplifiers free to use their full power on
the usable signal eliminating distortion and giving your PA system a
cleaner and better sound.




Features

TRS differentially balanced ins and outs
Mode switches for mono 4-way or stereo 2-way/3-way operation
Low frequency summed (subwoofer) output
x10 range switch on both channels
40Hz high pass (low cut) filter both channels
Phase reverse switch on all outputs
Individual level controls on all outputs
24dB per octave Linkwitz-Riley filters (the professional standard)
Stereo/Mono status LEDs indicate the selected mode
dbx 2 year parts and labor as standard
CSA NRTL/C approved
CE compliant
Connectors: 1/4" TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 50k ohm, unbalanced 25k ohm
Max Input Level: +22dBu balanced or unbalanced
CMRR: 40dB, typically 50dB at 1kHz




Get more sound to your amps and speakers!

234s Stereo 2/3 Way Mono 4-Way Crossover Specifications:

OUTPUTS
Connectors: 1/4" TRS
Type: Impedance-balanced/unbalanced, RF filtered
Impedance: Balanced 200 ohm, unbalanced 100 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k or greater

CROSSOVER FREQUENCIES
Stereo Mode: Low/High 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low/Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High: 450Hz to 9.6kHz (x10 setting)
Mono Mode: Low/Low-Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low-Mid/High-Mid 450 Hz to 9.6 kHz
High-Mid/High 450 Hz to 9.6 kHz
Filter type: Linkwitz-Riley, 24 dB/octave, state-variable

FUNCTION SWITCHES
Front Panel (Low Cut): Activates 40Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
Phase Invert: Inverts the phase at the output, one switch per output
Rear Panel: x10: Multiplies crossover frequency range by 10, one switch per channel
Mode: Selects stereo/mono and 2/3/4-way operation
LF sum: Selects normal (stereo) or mono-summed low frequency operation

INDICATORS
Stereo Operation: Green LED
Mono Operation: Yellow LED
Low Cut: Red LED per channel
x10 Green LED per channel
Phase Invert: Red LED per output (3 per channel)

SYSTEM PERFORMANCE
Bandwidth: 20Hz to 20kHz, +0/-0.5dB
Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
Dynamic Range: > 106 dB, unweighted, any output
Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
THD + Noise: < 0.004% at +4 dBu, 1 kHz
< 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk: < -80 dB, 20Hz to 20 kHz
Common Mode Rejection: Ref (+4dBu, 22kHz measurement bandwidth): Stereo Mode >94dB (Low Output); >93dB (Mid Output); >90dB (High Output) Mono Mode: >94dB (Low Output); >94dB (Low/Mid Output); >92dB (High/Mid Output); >88db (High Output)

POWER SUPPLY
Operating Voltage: 100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz
Power requirements: 15W
Operating Temperature: 32°F to 113°F (0°C to 45°C)

PHYSICAL
Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm)
Weight: 4.0 lb. (1.8 kg); Shipping Weight: 5.8 lb. (2.6 kg)
