Synthmonger Micro Fuzzmonger

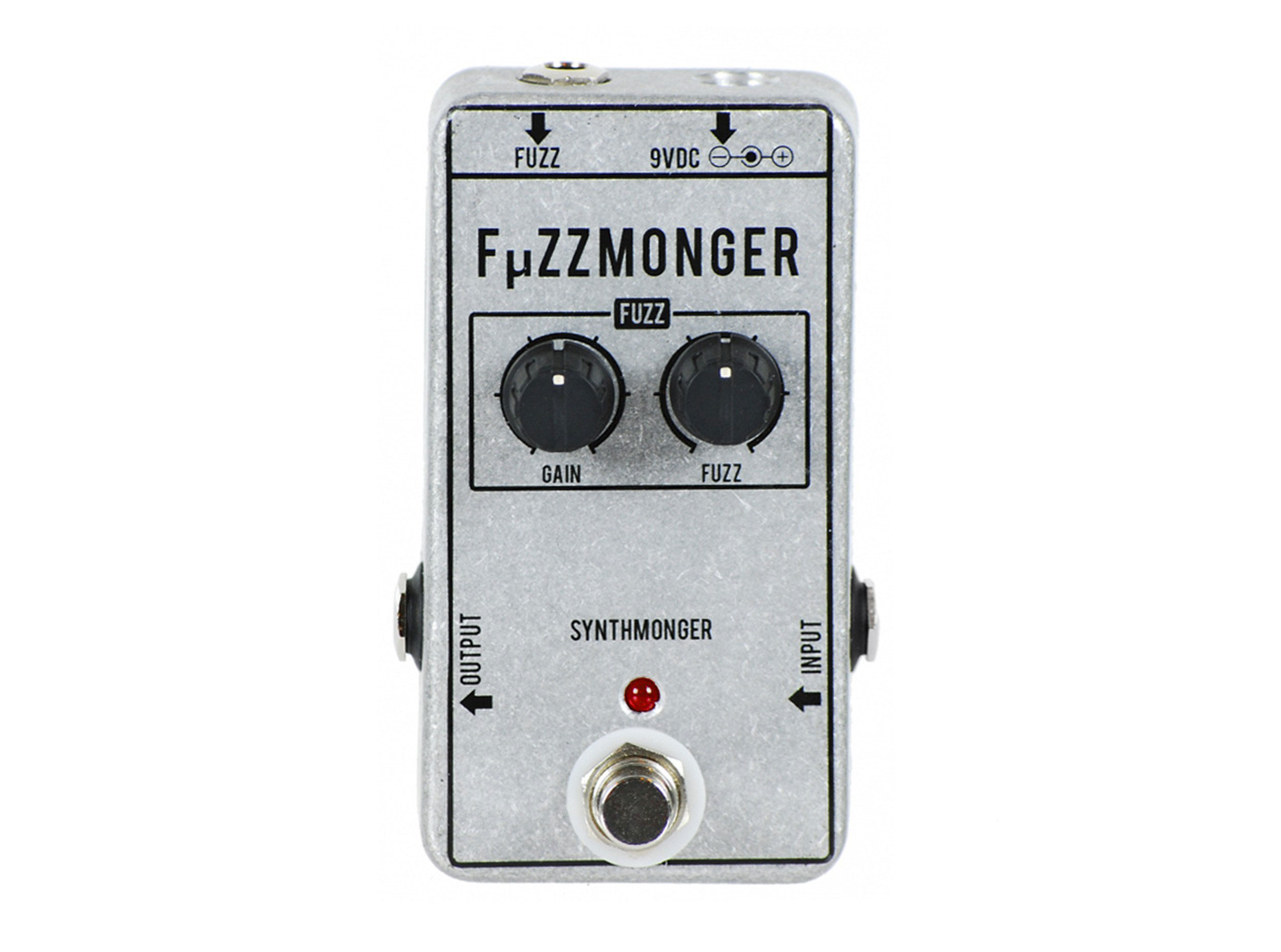

Micro FμZZMONGER


The micro Fuzzmonger (Fμzzmonger) is a synthesizer wave folding
circuit converted for guitar level signals. The first of its kind, the
voltage controlled fuzz section will allow any player to expressively
control the amount of fuzz via the expression pedal or CV input jack.


Controls:


INPUT - Guitar, modular synth
OUTPUT - The goes to your mixer or amplifier
FUZZ CV - Stereo expression pedal input or mono cv input for Fuzz
control. Voltage range is 4V to 9V. Standard modular synth voltages
won't hurt but may eliminate the sound going below 4V.
9-VDC INPUT - Center negative 9VDC power adapter input.
FUZZ - Bias control for the Fuzz circuit. Also controls the drive and tone control.
GAIN - Sets the maximum output level. When the Gain position is
beyond 25% the diodes will turn on and being to smooth out the signal.
Take care beyond 30% as the pedal will start to get LOUD!
TRUE BYPASS
