Wharfedale KMD7

Wharfedale Pro are proud to bring you their all new drum microphone package, the KMD-7 pack.


All of the KM Series share the same rugged cast zinc
construction, unidirectional polar responses, exceptional feedback
rejection, gold plated XLR connectors and dent resistant steel grilles.

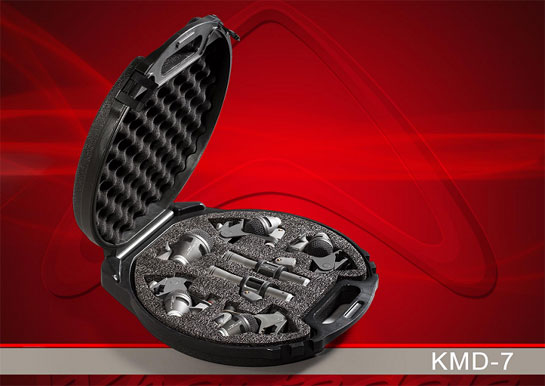

The KMD-7 pack is presented in a heavy duty foam lined plastic case.


The KMD-7 pack consists of two KM3's, a KM4 and four
KM5's to provide a one stop drum microphone solution suitable for live
and home studio use.


The KM3 is an end address small diaphragm condenser intended for use
as a drum overhead microphone however it is equally suited to many other
applications such as stringed instruments and piano. Two KM3's are
supplied for stereo overhead coverage and come complete with a
rubberized shockmount to ensure handling noise is minimized.


The KM4 like the other dynamic models in the range utilize a
neodymium magnet to provide exceptional low distortion at high output
levels. Primarily designed for kick and tom applications it is also at
home when used on bass, brass and amplifier cabinets.


The four KM5 microphones have a spring loaded adjustable drum-rim
mounting bracket that ensures perfect positioning for snare and tom
applications. The intelligent rim mounting ensures that the microphone
will operate effectively and safely out of the range of sticks and
beaters; in addition there is a cable tidy to ensure wiring is neat,
tidy and safe.















KM-3
KM-4
KM-5


Transducer Type
Condenser
Dynamic
Dynamic


Polar Pattern
Cardioid
Super-cardioid
Super-cardioid


Frequency Response
30-20,000Hz
30-12,000Hz
50-16,000Hz


Load Impedance
<1000 Ohms
250 Ohms
250 Ohms


Sensitivity (@ 1000Hz)
-46 dBV/Pa
-54 dBV/Pa
-54 dBV/Pa


Off Axis Rejection
>18dB
>20dB
>22dB


Maximum SPL
>120dB
>135dB
>130dB


S/N Ratio
more than 70dB
-
-


Current Consumption
4.6mA
-
-


Power Supply
11-52V phantom power
-
-


Connector
3 pin gold plated male XLR
3 pin gold plated male XLR
3 pin gold plated male XLR


Polarity
Positive voltage on pin 2 relative to pin 3 of output connector
Positive voltage on pin 2 relative to pin 3 of output connector
Positive voltage on pin 2 relative to pin 3 of output connector


Housing
Zinc Alloy
Zinc Alloy
Zinc Alloy


Dimensions
Ø30x154xØ21
Ø58.6x77.8xØ27
Ø45.2x61.3xØ24


Weight
120g (4.2oz)
240g (8.5oz)
170g (6.0oz)
