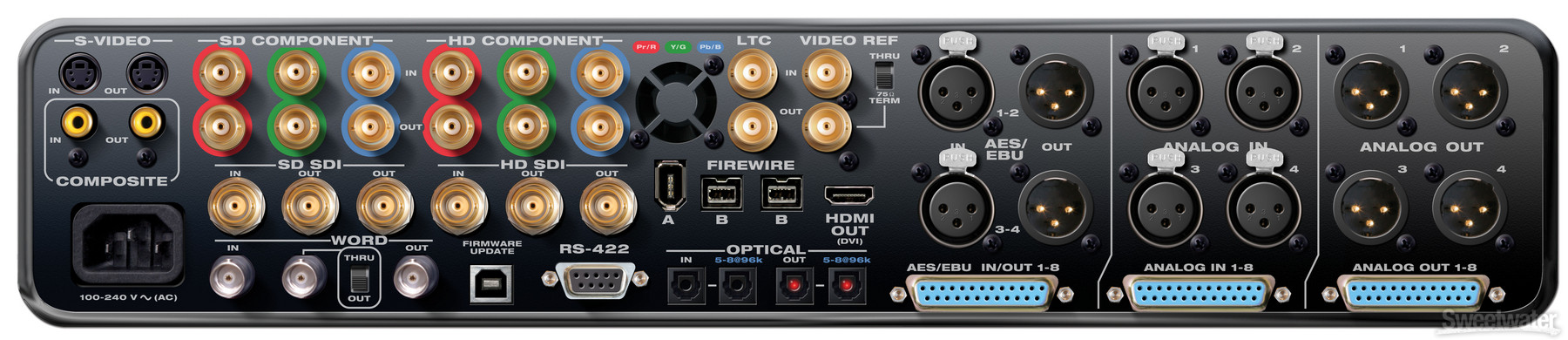

MOTU V4HD

Turn Your Computer into a Full Video Production Studio!

The MOTU V4HD video interface updates the V3HD, providing a
versatile plug-and-play hub for your video production operation with
ProRes support within Final Cut Pro! FireWire connectivity and a host of
video and audio I/O options on the V4HD give you the power to turn your
desktop or laptop computer into a full-blown HD/SD production
workstation. What's more, you get MOTU's Video Console software, for
control over all programmable features, as well as CueMix Console
software (which gives you control of all 32 channels of audio I/O). The
MOTU V4HD puts you in complete control!


MOTU V4HD Video Interface at a Glance:


Great connection and monitoring options

Incredible audio and video editing and mixing capabilities

Streamline your workflow


Great connection and monitoring options
Connect all your
gear, from SD camcorders and CRT monitors to today's latest professional
HD cameras, video decks, LCD reference monitors and plasmas - all at
the same time, with no cable swapping. Choose your input source, then
log and capture HD and SD clips directly into Final Cut, converted on
the fly and ready for fast, CPU-efficient editing in pristine native
DVCPro HD quality, without the costly overhead required for uncompressed
HD. Monitor simultaneously in HD and SD with real-time SD-to-HD
up-convert, HD-to-SD down-convert and real-time pull-down insertion or
removal.


Incredible audio and video editing and mixing capabilities
As
you edit, watch your creation take shape in a variety of display
formats simultaneously, from the pixel-for-pixel accuracy of a large
plasma screen, to the color-corrected balance of an LCD reference
monitor, to the real-world look of a consumer display. Use 32 channels
of audio to capture, monitor, mix and master multichannel surround sound
for your productions at sample rates up to 192kHz. Use time code,
machine control, video reference and word clock to keep everything
frame-accurate.


Streamline your workflow
From start to finish, the V4HD
streamlines your video production workflow, with unified control over
all your video gear from your computer desktop.


MOTU V4HD Video Interface Features:


HD/SD FireWire video interface for Mac and Windows

Plug-and-play connectivity via FireWire

Supports Apple Final Cut Pro on the Mac and Adobe Premiere Pro on Windows

Capture and play back all standard HD and SD formats up to and including 1080p30 (720p, 1080i, 1080p, and 1080PsF)

Supports full-raster capture and playback (1920x1080 and
1280x720) in Apple's ProRes 422 HD codec in both standard and HQ modes.
Work with ProRes clips pixel for pixel in full 10-bit 4:2:2 resolution.

Capture and play back uncompressed 10-bit SD from all formats

HDMI output

Broadcast quality hardware-based real time SD-to-HD up-convert

Broadcast quality hardware-based real time HD-to-SD down-convert

Real-time 2:3 or 2:3:3:2 pull-down insertion and removal

Comprehensive zoom modes for up/down conversion

Simultaneous HD/SD operation

Two rack space form factor with dedicated connectors

Stand-alone operation


Included software and compatibility


Includes MOTU Video Console and CueMix Console software

Mac OS X (Windows XP, Windows Vista forthcoming)

Supports Final Cut Pro 5.x or higher on the Mac

Supports Adobe Premiere Pro CS3 3.x or higher on Windows


The MOTU V4HD video interface turns your computer into a full-blown production studio!


Tech Specs



Manufacturer Part Number
4026
