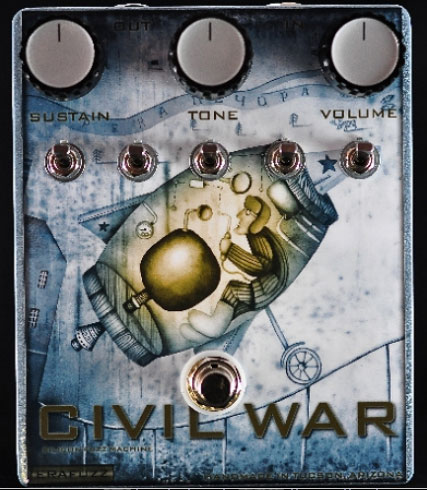

ERA FUZZ Civil War

Civil War

The Erafuzz Civil War was built to recreate David Gilmour guitar’s
signature fuzz sound from The Division Bell era. This handmade unit
includes multiple switch configurations to give you a superior control
over your fuzz tone with great alternatives.


The first three toggle switches give you access to some of the Gilmour’s
special tone modifications, and the last two toggle switches control
the mids EQ tones from scooped mid tones, to flat mids, to inclining mid
tones. The true-bypass footswitch preserves the guitar sound, and the
extra point to point soldering wiring connection on the copper
stripboard ensures a full circuit performance. It operates with a 9V
carbon-zinc battery or with a standard (negative pin) 9V external power
supply.


Specifications:
* 4 Fairchild 2N5088 Silicon Transistors
* 4 Fairchild 1N914 Diodes
* 3PDT Push Button Footswitch / True-Bypass
* Neutrik Input/Output Jacks
* D/C Power Jack
* 5 NKK Toggle Switches / M Series - Miniature Toggles / Mechanical Life: 100,000 Operations Minimum, high sound performance
* 1790NS Aluminum Pedal Enclosure / 5.70” x 4.70” x 1.50”D
* Aluminum Preventive Primer
* Gloss Hammered Blue Paint
* Super Gloss Clear Coat
* Civil War front vinyl face with a clear-shield laminate
* 3 Eagle-Plastic-Devices Control Knobs, / Sustain, Tone, and Volume
* 3 Alpha Potentiometers / Rotational Life: 15,000 cycles
* 2 Vishay Sfernice Trimpots / 2 Bias Controls
* Alpha Wire - Solid Single Conductor 22 AWG / Jacket Material: PVC, 300V
* Belden Shielded Cable - Jacket Material: PVC, Tinned Copper
* Ohmite Carbon Composition Resistors 5% Tolerance, ½ Watt
* Xicom Polystyrene Film Capacitors 5% Tolerance, 50V
* Vishay Sprague “Orange Drop” Polyester Capacitors 10% Tolerance, 400V
* Mylar Film Capacitors 5% Tolerance, 400V
* Nichicon Muse KZ Series top Audio Grade Aluminum Electrolytic Capacitor 20% Tolerance, 50V
* Copper Stripboard with Point to Point Soldering Wiring Connections
* Qualitek Silver Rosin Core Solder
* 9V Carbon Zinc Battery Included


The large enclosure is sized 5"x6" and is super nicely packaged so I
have to charge shipping on this because of the size and weight. If the
cost of shipping seems to high, please e-mail me at
contact@stompthatbox.com and I will look into it!
