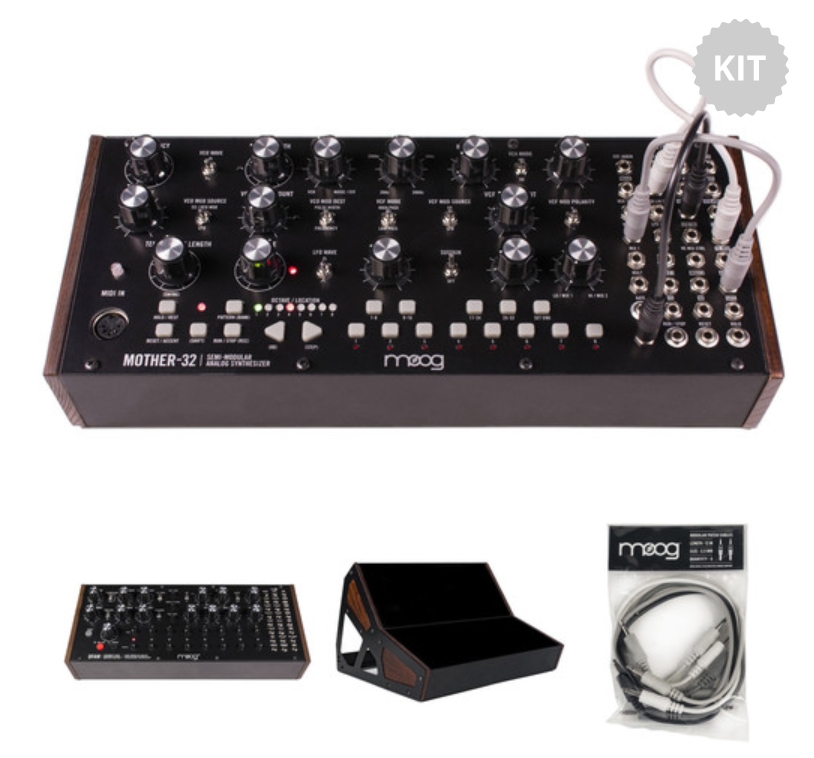

Moog Semi-Modular Kit with Mother-32 and DFAM

Moog Mother-32 Semi-Modular Analog Synthesizer






The Mother-32 from Moog is a semi-modular analog synthesizer with an integrated 32-step sequencer and 32-point patchbay with Eurorack compatibility. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI. The single oscillator is switchable between saw and square waveforms and offers pulse width modulation. The on-board LFO is capable of generating frequencies at audio levels and can be routed to the VCO, pulse width, filter cutoff. The classic 24 dB ladder filter is switchable between low-pass and high-pass with controls for cutoff and resonance. The envelope offers controls for attack and decay with sustain available via toggle switch.The on-board sequencer offers 32 steps and can be saved into 64 sequencer preset slots. Each step can record note, glide, gate length, accent, rest, and ratchet information, while the sequencer itself can clock to MIDI and offers a global swing. The on-board 13-note keyboard can record into the sequencer in real-time or be used to step-record data. Additionally, the keyboard can transpose a running sequence in real-time.The front panel of the Mother-32 can be removed from the chassis and placed within a standard Eurorack enclosure, making it fully compatible with a variety of Eurorack modules. The patch-bay offers 32 input and output points for signal routing including VCO waveform output, voltage control over resonance, LFO rate control, external audio input, keyboard CV tracking, and connections for controlling the sequencer. The Mother-32 ships with a power supply and 5 patch cables




General Features



32-step sequencer (real-time and step-record)
Sequence notes, gate length, accent, glide, and ratchet per step
Transpose sequence in real-time with keyboard
64 slots to save sequences (sequences- not patches)
5-pin Midi input
32x modular patchbay
White noise
2x Voltage control mixers
Definitive Moog oscillator w/ pulse and sawtooth wave output
Main Module can be transferred into any Eurorack skiff
Both Low Pass and high pass modules





Patchbay Inputs



External Audio
Mix CV
VCA CV
VCF Cutoff
VCF Resonance
VCO 1V/Octave
VCO Linear FM
VCO Modulation
LFO Rate
Mix 1
Mix 2
VC Mix Control
Mult
Gate
Tempo
Run/Stop
Reset
Hold





Patchbay Outputs



VCA
Noise
VCF
VCO Saw
VCO Pulse
LFO Triangle
LFO Square
VC Mix
Mult 1
Mult 2
Assign
EG
KB
Gate





Patchbay Assignable Output



Accent (Default)
Sequencer Clock
Sequencer Clock / 2
Sequencer Clock / 4
Sequencer Step ramp
Sequencer Step saw
Sequencer Step triangle
Sequencer Step random
Sequencer Step 1 trigger output
MIDI velocity
MIDI pitch bend
MIDI channel pressure
MIDI CC 1
MIDI CC 2
MIDI CC 4
MIDI CC 7










Moog DFAM - Drummer from Another Mother - Semi-Modular Analog Percussion Synthesizer


Building upon the success of the Mother 32 semi-modular synthesizer, the Moog Drummer from Another Mother (DFAM) is a Eurorack-compatible, semi-modular analog percussion synthesizer with a highly interactive interface, designed to effortlessly create a wide range of sounds and rhythms from gently evolving undulations and cyclical breathing patterns to hammering basses and clangorous cacophony.The 100% analog instrument features two voltage-controlled oscillators, a white noise generator / external audio input, and a classic Moog ladder filter with selectable low-pass or high-pass options, which allow you to dynamically sculpt your sound. What's more, there are three envelope generators dedicated to the VCO, VCF, and VCA. The VCO and VCF EG feature voltage-controlled decay and a bipolar amount knobs for creating rising and falling pitch and filter effects, while the VCA EG offers a voltage-controlled decay and a selectable fast/slow attack time.The on-board, 8-step analog sequencer offers velocity and pitch controls for each step, and the sequencer's clock can run at audio rates, creating a complex oscillator with tons of character. The semi-modular design requires no patching to generate sound; however, the unit is equipped with a 24-point patchbay, which lends itself to tactile exploration and experimentation. The DFAM is fully compatible with Eurorack systems and ships with a set of five patch cables and a power supply.







Semi-Modular: No patching required. Anyone can create unique and impactful analog rhythms
100% Analog: Unbridled sonic flexibility for a lifetime of percussive inspiration
Two Oscillators: Ultra-wide range sound generation; craft everything from subtly pulsing cadences to clangorous cacophony and floor-splitting bass
Selectable Analog Filters: Dynamically sculpt your sound with a low-pass or high-pass ladder filter
Three Envelopes: Interact dynamically with velocity to impart “human” variation to your sound

VCO EG: Voltage-controlled decay and bipolar amount control
VCF EG: Voltage-controlled decay and bipolar amount control
VCA EG: Voltage-controlled decay and selective fast/slow attack times


Eight-Step Analog Sequencer with Velocity: Vibrantly continuous control over each note
24 Patch Points: Explore modular patching or connect to a Mother-32 to create a 3-oscillator leviathan

Patchbay Inputs: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1→2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock
Patchbay Outputs: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch


Link Multiple Units: Rack up multiple DFAM and Mother-32 units for evocative analog compositions
External Audio Input: Process other sounds through DFAM’s analog circuitry
Eurorack Compatible: Easily remove DFAM from its case and mount it into a Eurorack system (requires an optional 10- to 16-pin Eurorack cable)










Moog Mother Ecosystem 2-Tier Rack Stand

The Moog Mother Ecosystem 2-Tier Rack Stand allows you to mount any combination of Mother-32 and DFAM synthesizers vertically for increased modularity and synthesis capabilities. The unit is also compatible with the 60HP Moog Eurorack cases for integrating other third-party modules.

www.music-blvd.com $1,199
