Behringer iNUKE NU1000DSP Power Amp

Ultra-lightweight, high-density 1000W power amplifier with DSP control and USB interface.




BEHRINGER's iNUKE NU1000DSP, just like the rest
of the iNUKE Series power amplifiers, packs massive amounts of output
power into an exceptionally lightweight, rackmountable package.
Behringer's revolutionary high-density Class-D technology, combined with
an ultra-efficient switch-mode power supply, ensures this feather-light
powerhouse will drive your rig effortlessly for many years to come.

Superb transient response
BEHRINGER
spent years fine-tuning the high-density Class-D technology that gives
the iNUKE Series its oomph. Because they are created with carefully
selected transistors with extremely high slew rates and optimizing other
proprietary parts of the circuitry, the iNuke NU1000DSP amp reacts
instantly to even the most-demanding electronic bass impulses.

When
this amplifier technology is combined with BEHRINGER's switching-mode
power supply, it gives the iNUKE NU1000DSP amplifier its tremendous
punch. Just like the rest of the iNUKE Series, they are so much more
efficient than conventional designs, so they run cooler, and don’t
require the massive heat sinks and heavy toroid transformers typically
associated with their conventional counterparts.

Sublimely simple operation

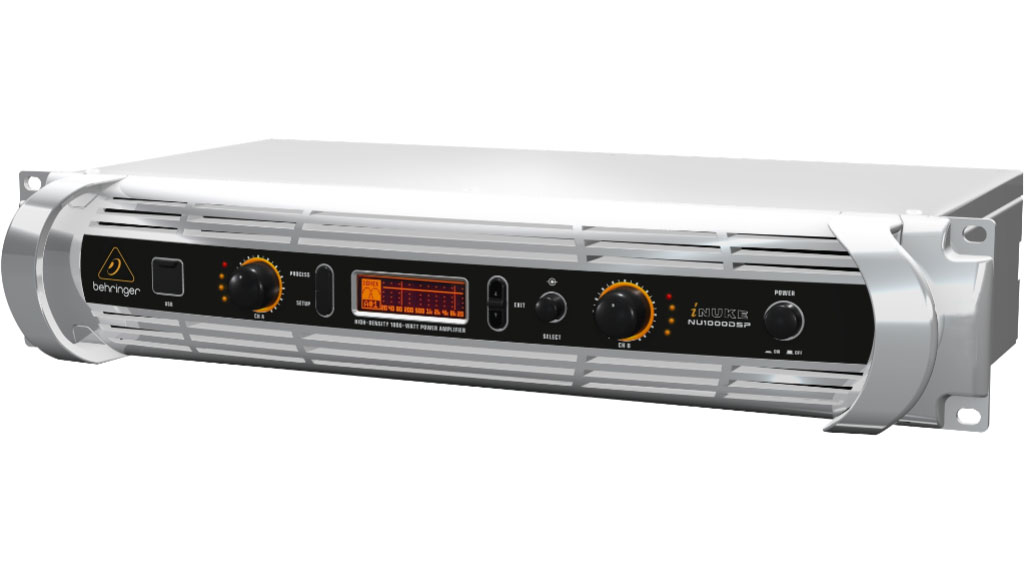

The
front panel controls and indicators provide your system's vital signs
at a glance. After pressing the Power button, the Power LED lights to
show the amp is ready for action. All channels feature positive-detent
Gain controls with signal LEDs that light when a signal is present, as
well as clip LEDs to indicate when the signal is distorted and you need
to reduce the input signal.

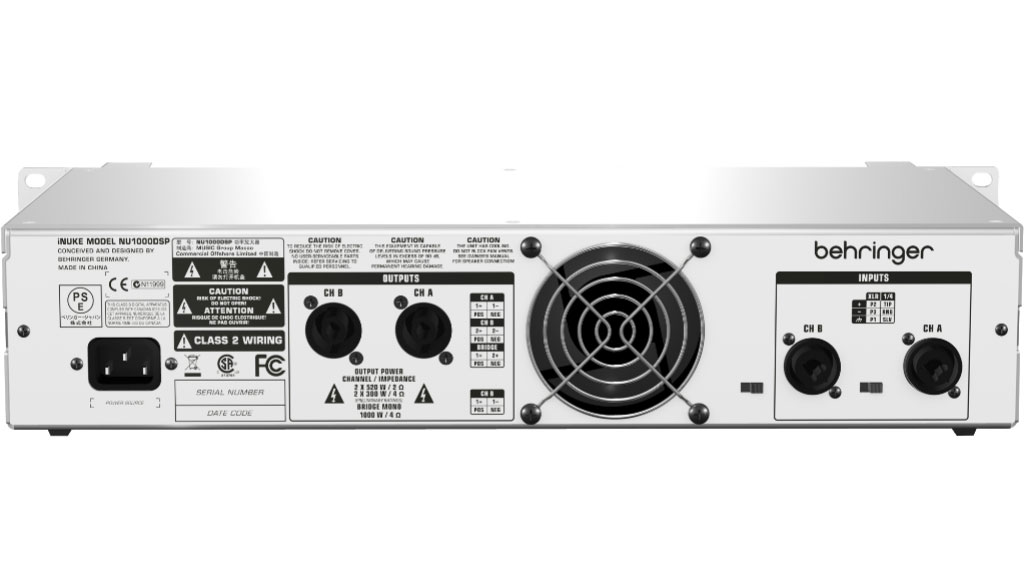

The rear panel is just as elegant,
with combo XLR and 1/4" TRS input connectors. This makes the iNUKE
NU1000DSP compatible with virtually any source, balanced or unbalanced.
Professional twist-lock speaker sockets are provided to ensure every
drop of output power gets to your loudspeakers. The rear panel is also
where you'll find the switches that enable the iNUKE NU1000DSP to work
in either dual mono, stereo, or mono bridge mode. A built-in CROSSOVER
switch enables the amp to operate in biamp mode, sending low-frequency
content to passive subwoofers, while the high-frequency output is
channeled to full-range loudspeakers (CH1>100 Hz/CH2<100 Hz, or
FULLRANGE).

iNUKE DSP
For sound engineers
requiring high-level control capability, the iNUKE DSP Series amplifiers
come ready for action right out-of-the-box. The built-in DSP and
24-bit/96 kHz converters ensure the ultimate signal integrity with an
extremely broad dynamic range. DSP functions include a sophisticated
delay for delay-line loudspeakers, crossover, EQ (eight parametric, two
dynamic), and dynamics processing with lockable security settings. A
convenient front panel LCD display allows you to setup and make
adjustments directly at the amplifier, without the need for a PC. The
iNUKE NU1000DSP, just like all iNUKE DSP models, can also be set up,
controlled, and monitored via the front panel USB connector.

Value
Sporting
a massive output rating, lightweight Class-D technology, an equally
lightweight price tag, and all the amenities a professional audio
engineer could ask for, the iNUKE NU1000DSP amp is a serious amp for
demanding applications.




Features

Delivers 2 x 500W into 2Ω; 2 x 300Ws into 4Ω; 1000Ws into 4Ω (bridge mode) and weighs less than 8lb. / 3.5kg
Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup
Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low-power consumption
High-performance DSP and 24-bit/96kHz converters deliver ultimate signal integrity and extreme dynamic range
DSP section features sophisticated delay, crossover (3 filter types,
up to 48dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing,
and lockable security settings
Front panel LCD display enables setup and adjustment without PC
Can be set up, controlled and monitored via front panel USB connector (Powerful remote software downloadable at vendor website)
"Zero-Attack" limiters offer maximum output level with reliable overload protection
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
Detented and illuminated gain controls for precise level setting
Precise 4-segment Signal and Limit LEDs to monitor performance
XLR and 1/4'' TRS combination input connectors for compatibility with any source
Professional twist-lock speaker connectors for ultimate reliability
Independent DC, LF and thermal overload protection on each channel
automatically protects amplifier and speakers without shutting down the
show




Let loose the juice within this amp to ramp up your equipment's perfromance levels. Order today!








iNUKE NU1000DSP Power Amp Specifications:


Output Power
Stereo
8Ω per channel, stereo: 160W
4Ω per channel, stereo: 320W
2Ω per channel, stereo: 530W
Bridged Mono
8Ω: 570W
4Ω: 1050W
RMS
Stereo
8Ω per channel, stereo: 110W
4Ω per channel, stereo: 210W
2Ω per channel, stereo: 380W
Bridged mono
8Ω: 430W
4Ω: 750W
System
Controls
Front: Power switch, Gain controls (channels A and B) DSP section rotary push-encoder, Buttons for Process, Setup, Up/Down, Exit
Indicators
Power: Amber backlit illuminated gain controls
Limit (per channel): 0dB, full scale
Signal (per channel): -24, -12, -6dB
Digital Signal Processing (DSP)
Display: LCD 128 x 32, amber backlit
Digital delay function (per channel): 0-300ms
Digital crossover function: 3 filter types, up to 48dB/octave
Digital EQ function (per channel): 8-band parametric, 2-band dynamic equalizer
Digital dynamics function (per channel): Zero attack limiter (peak)
Presets: 20 total presets, 19 user-definable
Connectors
Inputs: 2 x combo jacks
Input impedance: 10 kΩ unbalanced, 20 kΩ balanced
Outputs: 2 x locking-style professional speaker connectors
Output circuit type: Clase D
Distortion: <0.1%
Frequency response: 20Hz to 20kHz, +0 / -1dB
Damping factor: >155 @ 8Ω
Signal-to-noise: >98dB
USB: Front-panel USB connector type B for remote control of DSP section
Circuit Protection
Cooling: Continuously variable speed fan, Back-to-front air flow
Amplifier protection: Thermal and DC protection, Stable into reactive or mismatched loads
Load protection: On/off muting, DC-fault power supply shutdown
Power
Power Supply: 120 V~, 60Hz (T 6.3 A H 250V)
Power consumption@2Ω: 150W
Power consumption@4Ω: 70W
Mains connector: Standard IEC receptacle
Dimensions/Weight
(HxWxD): Appr. 3.7" x 19" x 9.1" / 94mm x 482mm x 230mm
Weight: Appr. 6.4lb./2.9kg






*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
