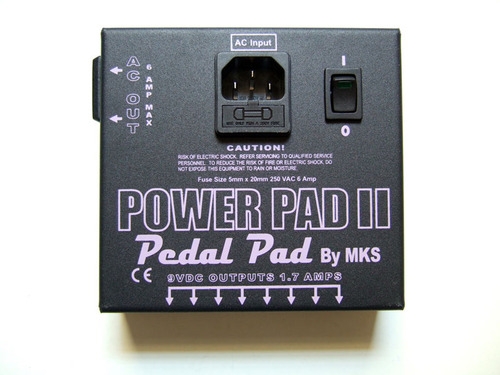

Pedal Pad Power Pad II

POWER PAD II -
Switching Power Supply for guitar effects pedals works anywhere in the
world! This power supply cycles so far above the range of human hearing
that ripple-based buzz (60 cycle hum) is eliminated. At 1.7 (1700mA)
amps of current, the Power Pad II will deliver 9 volts every time and
can power an unlimited number of pedals. AC and DC power is circuit
protected. While there are 8 x 9V center tip negative type outputs (Boss
style), you can also use an optional daisy chain cable to add more
pedals up to the 1.7 Amp maximum if necessary (available at your local
music store).


It also includes a courtesy AC outlet with 6 amps (6000mA) of power in
addition to the 1.7 Amps above. This solves the problem of different
voltages and reversed polarities because you can plug those type devices
into the AC outlet or a power strip for several different type adapters
or AC type pedals.


Included Accessories: The Power Pad II 2 includes (8) x 2.1MM 9VDC (Boss
style) power connector cables in 2 lengths (4 x 22" & 4 x 36") and a
world-universal IEC inlet with a 10 Foot AC power cable. Also included
are mounting brackets designed to fit MKS's patented modular systems
which may also be adapted to other drop-in, surface mount type boards.


Basic Info About Effects Pedals: For those not familiar with how much
power the average effects pedal uses, or what their correct current or
future requirements may be, here is some pedal basics to understand. The
average Boss style pedal typically uses between 35-50mA of power. At
1.7 amps (1700mA) of available power which the Power Pad II has, you
could theoretically power at least 34-40 pedals! Bear in mind, that you
won't typically be using all of your effects at the same time. Since the
Power Pad II is a "switching" power supply, it only delivers the
necessary power to each pedal as it is being used. Most Boss style stomp
box pedals are center tip negative. If you have any pedals that are
not, you would want to run them via the AC outlet with their own
dedicated adapter or by 9V battery since those are typically Fuzz or
Octave type pedals that sound best with a battery. Also, If you have a
few high current draw effects such as Line 6 Modeler pedals, or multi
effects units, whose adapters are rated at upwards of 2000mA, you could
plug 2-3 of those dedicated adapters or AC cables into the courtesy AC
outlet (or power strip-not supplied) and then plug all your stomp box
pedals into the 8 other outputs and you would be set! You can use L6
Modeler converter cables and EHX style cable adapters and attach them to
any of the included Boss style cables and they will work (provided that
they are running at 9v center tip negative),





www.music-blvd.com
