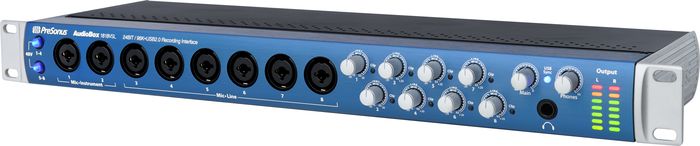

PreSonus Audiobox 1818VSL 18-Channel USB Interface

An 18-channel audio interface with the power of a PreSonus StudioLive digital mixer.




The flagship in PreSonus' new generation of USB 2.0 audio/MIDI interfaces, the AudioBox 1818VSL takes hardware/software integration to the next level and delivers a combination of features, audio quality, and value that is unprecedented in this product category. Using your computer CPU and PreSonus Virtual StudioLive (VSL) software, AudioBox VSL-series interfaces provide reverb and and delay effects and the same Fat Channel compression, limiting, semi-parametric EQ, and high-pass filter, as the PreSonus StudioLive 16.0.2 digital mixer— all with inaudible latency. It's a great choice for project studios, performing bands, school music labs, and a wide variety of corporate installations and other contractor applications.

This is a pro product all the way, with high-end 24-bit, 96 kHz converters; Class A XMAX preamps; ADAT optical I/O; S/PDIF coaxial I/O; word-clock output; and MIDI I/O, housed in a heavy-duty, rack-mount metal chassis.

Furthermore, thanks to the power of VSL, the AudioBox 1818VSL includes a 26x8 software mixer. As a result, with just an AudioBox 1818VSL and your laptop or other computer, you can mix a studio session or live show featuring a full band—all while monitoring and recording with or without real-time processing! And you can do it simply and easily, with no hardware mixer, no outboard effects rack, and minimal wiring, thanks to the tight integration between PreSonus hardware and software.

What's so great about effects and processing on monitors?
Tracking without hearing effects and signal processing is like playing a video game with your eyes closed. Musicians rely on aural cues when performing, and their performance can vary depending on what they hear in their monitors. Adding just the right amount of compression, EQ, and reverb can make a huge difference in their ability to hear themselves clearly and to experience their performance as if it occurred in a natural space rather than in the artificial sonic environment of the studio. The result is a better performance and ultimately a better recording.

You have plenty of effects plug-ins for your DAW, but processing audio with a DAW takes more time than you might think. True, we're talking milliseconds, but it's long enough that if you put DAW effects in your studio monitors, you'll hear the original sound slightly before the processed signal, which is very disorienting. That much delay might be acceptable for live gigs, where the band is playing together in an ambient space that has natural delay. But you can't record that way in the studio.

Fortunately, PreSonus' engineering wizards have dramatically reduced processing delay in the AudioBox VSL series. The result: dynamics processing, EQ, reverb, and effects that feel real, with no audible delay.

And if you like what you hear, you can record with AudioBox VSL-series effects, too! These are the same high-quality StudioLive 16.0.2 Fat Channel dynamics processors and EQs that professional musicians, engineers, and producers record with every day.

Great processors are a PreSonus tradition
PreSonus didn't invent the first audio interface with effects. They simply did it better and for less money. Sure, some interface manufacturers that don't normally make signal processors have added a compressor, EQ and a few effects to their interfaces. But the AudioBox VSL series provides all that, plus a separate limiter, expander, and high-pass filter—and PreSonus has been making high-quality signal processors since 1995. The AudioBox VSL-series' Virtual StudioLive (VSL)-based effects and Fat Channel processing have been extensively field-tested and proven popular by tens of thousands of StudioLive-series mixer users, including many top professionals.

Of great importance, thanks to VSL's drag-and-drop convenience, adding processing and creating and loading presets is easy. Pro-level processing and superior ease of use mean you'll get better results and have more fun!

High-end sound in a versatile, roadworthy interface
Versatile and portable, the AudioBox 1818VSL offers 2 convenient front-panel mic/instrument combo inputs and 6 front-panel mic/instrument combo inputs, true 48V phantom power (switchable in 2 banks), and 8 line-level outputs. ADAT optical I/O provides 8 more channels of input and output (at 44.1 or 48kHz; 4 channels at 88.1 or 96kHz). S/PDIF coaxial digital I/O adds 2 more channels, bringing the total to 18 audio input channels and 18 output channels.

The sound is pure PreSonus, with the same high-headroom, Class A solid-state XMAX preamps found in StudioLive mixers and high-quality, 24-bit, 96 kHz converters with 114 dB dynamic range for clear, clean audio. And it boasts PreSonus' legendary 150mW headphone output, which is loud enough to explode the oysters in a Po'-Boy sandwich. (Be careful with your level control!)

The superior sound of PreSonus preamplifiers has long been a major reason that so many audio professionals prefer PreSonus interfaces. The XMAX is the finest solid-state preamplifier we make, offering three key advantages:

* 1. High Voltage. The XMAX preamplifier runs on power rails of 30V. Most off-the-shelf, op-amp-based designs run on power rails of 10V to 18V. Higher-voltage power rails deliver more headroom, deeper lows, smoother highs, and a richer overall sound.
* 2. Discrete components — not op-amps. PreSonus only uses genuine transistors, resistors, and capacitors for ultra-low noise and transparency. Op-amps add noise, coloration, and harshness to a signal.
* 3. Class A circuitry. Class A circuits have no crossover distortion and deliver purer, clearer, and more musical results than the Class AB designs that are found in many preamps.

The net result of the XMAX preamp design is high headroom, low noise, wide dynamic range, extended frequency response, and—most important—musicality and transparency, with smooth highs; solid, deep lows; and everything in between.

Pause and ponder this for a moment: a great-sounding 18x18 interface with a computer-based mixer and full complement of dynamics processing and EQ, with reverb and delay effects on dedicated buses, plus MIDI and word clock, all in a single rackspace! And there's more.

The flexibility and power of software
VSL enables you to easily manage the processing and mixing from your Mac or Windows PC and provides editor/librarian functions, making it simple to create and use a library of presets. To get you started, PreSonus included the same library of more than 50 Fat Channel presets that comes with StudioLive mixers. These presets were created by professional musicians and engineers and let you instantly set up dynamics processing and EQ for vocals, guitar, and much more.

Seamlessly integrated with the included Studio One Artist DAW and VSL, the AudioBox 1818VSL interface works with virtually all Mac and Windows audio-recording software. And unlike most things nowadays, it's very easy on your budget.

So check out the AudioBox 1818VSL: the next-generation USB 2.0 interface that gives you extensive I/O, including eight analog inputs and outputs; ADAT optical and S/PDIF digital input and outputs; real-time, low-latency processing and effects; word-clock output; rock-solid construction; software mixing; and high-end audio—all for a price you have to see to believe!



Features

Next-generation 24-bit/96 kHz, 18x18, USB 2.0 recording interface and computer-controlled mixer
8 Class A XMAX mic / instrument preamps
2 instrument inputs
6 balanced line inputs
Balanced main L/R outputs
8 balanced line outputs
Near-zero-latency monitoring with full effects and processing thanks to…
VSL (Virtual Studio Live): 26 x 18 ultra-low latency DSP mixer with StudioLive 16.0.2 Fat Channel dynamics processing and EQ for each analog input and its DAW return plus two stereo effects buses with reverb and delay
Over 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
Headphone amplifier
Clip lights for each channel
USB Sync LED
Dual LED Level ladders (meters)
MIDI I/O
ADAT I/O
Word Clock I/O
S/PDIF I/O
Globally switchable phantom power
Rugged metal chassis
Rack-mountable in one rack space (1U)
External 12 VDC power supply included
Includes Studio One Artist software with unlimited track count and over 4GB of third-party resources




The AudioBox 1818VSL interface lets you record and mix a whole band with effects. Order today!

Audiobox 1818VSL 18-Channel USB Interface Specifications:


Minimum computer-system requirements:
Windows
Windows Vista, Windows 7 (32- and 64-bit)
Intel Pentium 4 1.6GHz processor or AMD Athlon 64 3000+ (Turion) (2.8GHz or faster recommended)
1GB RAM (2GB or more recommended)
Macintosh
Mac OS X 10.6 (Snow Leopard) or later (32- and 64-bit)
Intel Core 1 Solo 1.5GHz processor (Intel Core Duo or Intel Xeon processor recommended)
1GB RAM (2GB or more recommended)
Windows and Macintosh Systems
USB 2.0 Port
Internet connection recommended
DVD-ROM drive (required to install Studio One Artist)
Microphone Inputs
Connector Type: Combo, XLR, female, balanced
Mic Preamp EIN: -133dB, 20kHz BW, max gain, Rs=40 ohm, A-wtd
Frequency Response: 20Hz - 20kHz, ±0.25dB, unity gain
THD+N: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-wtd
S/N Ratio: 97 dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-wtd
Gain Control Range: -15dB to +65dB
Input Max Headroom: +16dBu, < 0.5% THD
Input Impedance: 1.7k ohm
Phantom Power: +48VDC, 10mA total
Line Inputs
Connector Type: Combo, 1/4" TS, female, unbalanced
Frequency Response: 20Hz - 20kHz, ±0.25dB, unity gain
THD+N: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-wtd
S/N Ratio: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-wtd
Gain Control Range -20dB to +20dB
Input Max Headroom +21dBu, < 0.5% THD
Input Impedance 10k ohm
Instrument Inputs
Connector Type: Combo, 1/4" TS, female, unbalanced
Frequency Response 20Hz - 20kHz, ±0.25dB, unity gain
THD+N: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-wtd
S/N Ratio: 89dB, 0dBu, 1kHz, unity gain, 20kHz BW, unwtd
Gain Control Range: -30dB to +50dB
Input Max Headroom: +21 dBu, < 0.5% THD
Input Impedance: 1M ohm
Analog Outputs
Connector Type: 1/4" TRS, female, impedance balanced
Frequency Response: 20Hz - 20kHz, ±0.25dB
THD+N: 0.003%, 1kHz, 22kHz BW, A-wtd
S/N Ratio: 109dB, 1kHz, 22kHz BW, A-wtd
Output Level: +10dBu, <0.5% THD
Output Impedance: 51 ohm
Headphone Outputs
Connector Type 1/4" TRS, female, stereo
Maximum Power 120mW/ch @ 60 ohm load
Frequency Response: 20Hz - 20kHz, ±0.5dB, max gain
THD+N: 0.01%, 1kHz, max gain, 20kHz BW, A-wtd
S/N Ratio: 96dB, 1kHz, max gain, 20kHz BW, A-wtd
Power
External Power Adapter +18VDC, 2.6A, center-positive
Connector Type 5.5 mm OD, 2.1 mm ID, 9.5 mm length
Digital
ADC Dynamic Range: 114dB, 48kHz, A-wtd
DAC Dynamic Range: 114dB, 48kHz, A-wtd
Host Interface: USB 2.0 high-speed
Bit Depth: 24-bit
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Latency: 2.8 ms - 6 ms, analog in to out
ADAT: Optical I/O Toslink connectors, ADAT/SMUX formats
S/PDIF: I/O RCA female connectors
Word Clock: Output BNC connector, 4.5 Vpp @ 75 ohm load
MIDI I/O: 5-pin DIN connectors
Physical
1U rack-mountable
Road-rugged construction with all-metal chassis and metal knobs
Weight 4.6 lb. (2.1 kg)
18VDC external power supply (included)
