Shure SLX124/85/SM58 Dual System

Shure


Smart, hardworking wireless.

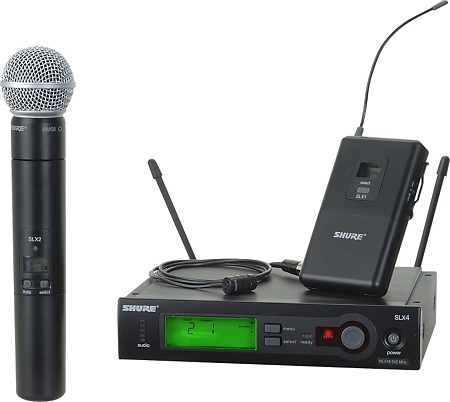

This Shure SLX Wireless Handheld/Lavalier Microphone Combo System includes a Shure SLX4 Diversity Receiver, a Shure SLX2/58 Handheld Transmitter with SM58 Microphone, a Shure WL185 Cardioid Lavalier Microphone, and a Shure SLX1 Bodypack Wireless Transmitter.

Shure SLX4 Wireless Receiver
The Shure SLX4 wireless receiver is a breeze to use with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, the SLX4 wireless receiver is ready for immediate installation right out of the box.

Shure SLX2/58 Handheld Transmitter with SM58 Microphone
The Shure Wireless Microphone consists of the SLX2 handheld transmitter with the Beta 58A Dynamic Supercardioid Microphone. The Shure SLX2 Handheld Transmitter includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality. The SLX2 transmitter design allows for interchangeable microphone cartridges. The Beta 58A microphone accentuates the warmth and clarity of lead and backup vocals. Its supercardioid design provides maximum isolation from other onstage sounds.

Shure WL185 Cardioid Lavalier Condenser Mic
The WL185 Lavalier Condenser Mic is recommended for general-purpose sound reinforcement applications that require good rejection of ambient noise. The use of a windscreen is highly recommended, especially for outdoor events. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. It includes a tie clip that can be rotated in 90-degree intervals for placement flexibility.

Shure SLX1 Bodypack Transmitter

The SLX1 bodypack transmitter is designed to hold up to the most adverse conditions. Whether used with headworn, Lavalier, instrument microphones, or with guitars or basses, the Shure SLX1 is the definition of reliability. SLX Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.




Features
SLX4 Wireless Receiver:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs

Beta58A Vocal Microphone

Supercardioid pickup pattern for maximum noise reduction
Frequency response: 50 to 16,000 Hz
Neodymium magnet for high signal—to—noise output

SLX2 Handheld Transmitter

Frequency response: 50 to 15,000 Hz
Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
518 - 782 MHz operating range

WL185 Cardiod Lavalier Condenser Mic

Cardioid pickup pattern for good noise rejection
Pickup angle: 130-degrees
1.2 meter (4 ft.) cable
Miniature 4-pin mini connector
Includes a 90-degree rotational tie clip

SLX1 Bodypack Transmitter

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use




Order today and enjoy Shure quality.




SLX124/85/SM58 Dual System Specifications:


SLX4 Wireless Receiver:
Audio Output Level (ref. ± 38kHz deviation with 1kHz tone): XLR connector (into 600 Ohm load): —13dBV; 1/4" connector (into 3000 Ohm load): —2dBV
Output Impedance: XLR connector: 200 Ohms; 1/4" connector: 1kohms
XLR output: Impedance balanced; Pin 1: Ground; Pin 2: (+); Pin 3: (-)
Sensitivity: —105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Power Requirements: 12—18 Vdc at 150 mA, supplied by external power supply
Operating Range Under Typical Conditions: 300 ft. (100m)
Note: Actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/— 2 dB): Minimum: 45 Hz: Maximum: 15 kHz
Note: Overall system frequency depends on microphone element.
Total Harmonic Distortion (ref. +/— 38 kHz deviation, 1 kHz tone): 0.5%, typical
Dynamic Range: >100 dB A-weighted
Operating Temperature Range: —18 degree C (0 degree F) to +50 degree C (+122 degree F)
Note: battery characteristics may limit this range
Dimensions (H x W x D): 1.65 x 7.76 x 5.28 in., (42 x 197 x 134 mm)
Weight: 1 lb. 13 oz. (816 g )
Housing: Galvanized steel
Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with
respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
Logic Connections: Pin 1: Logic output, Transmitter Mute Status. Mute=low (0 V). Sinks up to 100 mA. Absolute maximum -0.7 to 5.5V DC; Pin 2: Logic ground; Pin 3: Logic output, Battery Status. Good=low (0 V). Sinks up to 100 mA; Absolute maximum -0.7 to 5.5V DC
SLX2/58 Handheld Transmitter with SM58 Microphone
Audio Input Level: +2dBV maximum at -10dB position; -8dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions (including SM58 cartridge)(Length x Diameter): 10 x 2 in. (254 x 51 mm)
Weight: 10.2 oz. (290 grams) without batteries
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: >8 hours (alkaline)
WL185 Cardiod Lavalier Condenser Mic
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000 Hz
Output Impedance: 1800 ohms
Sensitivity (1 Pa = 94 dB SPL): -45.5dBV/Pa
Maximum Sound Pressure Level: 130.5dB SPL
Output Noise (A-weighted): 28.0dB SPL
Dynamic Range: 102.5dB
Polarity: Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
SLX1 Bodypack Transmitter
Audio Input Level: -10 dBV maximum at mic gain position, +10 dBV maximum at 0 dB gain position, +20 dBV maximum at -10 dB gain position
Gain Adjustment Range: 30dB
Input Impedance: 1 Mohms
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations
Dimensions (H x W x D): 4.25 x 2.50 x 0.75 in. (108 x 64 x 19 mmD)
Weight: 81 grams (3 oz.) without batteries
Housing: Molded ABS case
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: >8 hours (alkaline)






*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
