Shure SLX24/BETA87A Handheld Wireless Condenser Microphone System

Shure


High-end pro wireless with easy setup.




Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX24/Beta87A Hand-Held Wireless System exceeds these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, exceptional wireless clarity, and legendary Shure sound.

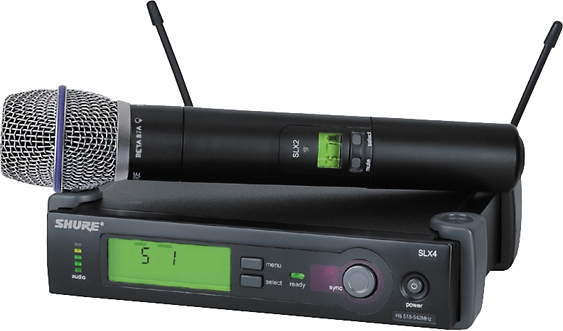

The Shure SLX24/Beta87A Hand-Held Wireless System for vocalists includes an SLX2 hand-held microphone transmitter fitted with a Beta87A capsule and the SLX4 diversity receiver.

Beta 87A Vocal Microphone
Leading the field for studio-quality sound in live performance, the Shure Beta 87A condenser element has a tailored response for warm, accurate sound. Its supercardioid design provides maximum isolation from nearby vocalists or instruments.

SLX2 Wireless Handheld Transmitter
SLX Wireless Handheld Transmitter with timed backlit LC display, frequency and power lockout, and "Mute" functionality

SLX4 Wireless Receiver
SLX Wireless Diversity Receiver with PS20 (120V AC) Power Supply, 1/4 Wave Antennas, and Rack Mounting Hardware




Features

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs




Takes the work out of sounding great. Order today.



SLX24/BETA87A Handheld Wireless Condenser Microphone System Specifications:


General
Frequency Range and Transmitter Output Level
Band, Range, Transmitter output
H5: 518—542 Mhz, 30 mW
J3: 572—596 Mhz, 30 mW
L4: 638—662 Mhz, 30 mW
P4: 702—726 Mhz, 30 mW
R13: 794-806 Mhz, 20 mW
R5: 800—820 MHz 20, mW
S6: 838—865 MHz 10, mW
JB: 806—810 MHz 10, mW
Q4: 740—752 MHz 10, mW
User guideNOTE: This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies for wireless microphone products in your region.
Operating Range Under Typical Conditions: 100m (300 ft.) Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/— 2dB): Minimum 45 Hz, Maximum 15 kHz
(Overall system frequency depends on microphone element.)
Total Harmonic Distortion (ref. +/— 38kHz deviation, 1kHz tone): 0.5%, typical
Dynamic Range: >100dB A-weighted
Operating Temperature Range: —18°C (0°F) to +57°C (+135°F) note: battery characteristics may limit this range
Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
SLX2 Handheld Transmitter
Audio Input Level: +2 dBV maximum at -10dB position , -8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country
regulations)
Dimensions (including SM58 cartridge). 254mm x 51mm dia. (10" x 2")
Weight: 290grams (10.2oz.) without batteries
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life : >8hours (alkaline)
SLX4 Receiver
Audio Output Level (ref. +/— 38kHz deviation with 1 kHz tone): XLR connector (into 600 Ohms load): —13dBV, 1/4inch connector (into 3000 Ohms load): —2dBV
Output Impedance: XLR connector: 200 Ohms, 1/4inch connector: 1k Ohms
XLR output: impedance balanced pin 1: ground (cable shield), pin 2: audio, pin 3: no audio
Sensitivity: —105dBm for 12dBSINAD, typical
Image Rejection: >70dB, typical
Power Requirements: 12—18Vdc at 150mA, supplied by external power
supply
Dimensions: 42mmH x 197mmW x 134mmD (1.65 x 7.76 x
5.28in.)
Weight: 816g (1lb. 13oz.)
Housing: Galvanized steel






*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
