Shure SLX24/BETA87C Wireless Microphone System

Shure


Smart, hardworking wireless.

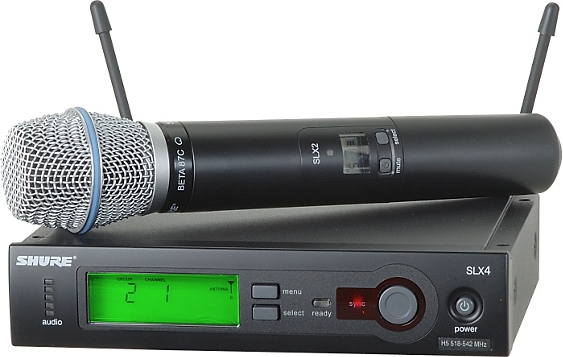

This Shure SLX Wireless Microphone System includes a Shure SLX4 Diversity Receiver, and a Shure SLX2/Beta87C Wireless Handheld Transmitter Microphone. It's a wireless system that offers the warm frequency response preferred by in-ear users.

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX Wireless Systems exceed these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, and exceptional wireless clarity. Supporting 20 compatible systems across multiple UHF frequency bands, Shure SLX wireless systems smoothly integrate into houses of worship, lecture halls, conference rooms, and mobile gear cases. SLX Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless.

SLX4 Wireless Receiver
The Shure SLX4 wireless receiver is a breeze to use with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.

Shure SLX2/Beta87C Wireless Transmitter Microphone

The Shure SLX2/SM87C consists of the SLX wireless handheld transmitter fitted with the SM87C microphone capsule. The Shure SLX2 Wireless Handheld Transmitter includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality. The SLX2 transmitter design allows for interchangeable microphone cartridges. The Beta 87C offers an extremely smooth, tailored response for a warm, natural sound. Cardioid polar pattern compensates for the isolation often associated with the use of personal monitors.




Features
SLX4 Wireless Receiver:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs

SM87C Cardioid Microphone

Cardioid, Condenser
Frequency response: 50 to 20,000 Hz
Highly consistent cardioid pattern offers excellent rear rejection

SLX2 Handheld Transmitter Microphone

Frequency response: 50 to 15,000 Hz
Automatic Transmitter Setup
518 - 782 MHz operating range
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge




Order today and enjoy Shure quality.




SLX24/BETA87C Wireless Microphone System Specifications:


SLX4 Wireless Receiver:
Audio Output Level (ref. ± 38kHz deviation with 1kHz tone): XLR connector (into 600 Ohm load): —13dBV; 1/4" connector (into 3000 Ohm load): —2dBV
Output Impedance: XLR connector: 200 Ohms; 1/4" connector: 1kohms
XLR output: Impedance balanced; Pin 1: Ground; Pin 2: (+); Pin 3: (-)
Sensitivity: —105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Power Requirements: 12—18 Vdc at 150 mA, supplied by external power supply
Operating Range Under Typical Conditions: 300 ft. (100m)
Note: Actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/— 2 dB): Minimum: 45 Hz: Maximum: 15 kHz
Note: Overall system frequency depends on microphone element.
Total Harmonic Distortion (ref. +/— 38 kHz deviation, 1 kHz tone): 0.5%, typical
Dynamic Range: >100 dB A-weighted
Operating Temperature Range: —18 degree C (0 degree F) to +50 degree C (+122 degree F)
Note: battery characteristics may limit this range
Dimensions (H x W x D): 1.65 x 7.76 x 5.28 in., (42 x 197 x 134 mm)
Weight: 1 lb. 13 oz. (816 g )
Housing: Galvanized steel
Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with
respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
Logic Connections: Pin 1: Logic output, Transmitter Mute Status. Mute=low (0 V). Sinks up to 100 mA. Absolute maximum -0.7 to 5.5V DC; Pin 2: Logic ground; Pin 3: Logic output, Battery Status. Good=low (0 V). Sinks up to 100 mA; Absolute maximum -0.7 to 5.5V DC
SLX2/Beta87C Wireless Transmitter Microphone
Audio Input Level: +2 dBV maximum at -10dB position; -8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions Length x Diameter): 10 x 2 in. (254 x 51 mm)
Weight: 10.2 oz. (290 grams) without batteries
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: >8 hours (alkaline)
