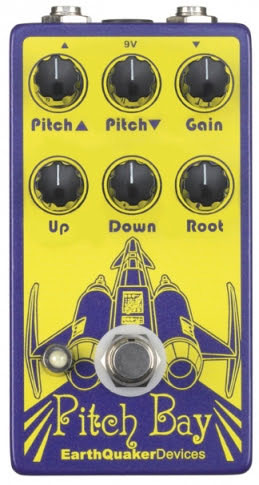

Earthquaker Devices Pitch Bay Harmonizer

The Pitch Bay is
a three part polyphonic harmonizer and distortion generator in one
compact enclosure. It features two voices of adjustable polyphonic pitch
shifting, one above the root and one below.

Each voice can be adjusted by stepped semitones, from 1 semitone to 12
semitones (one full octave) above and below the root. Each voice (Pitch
up, Pitch down and Root) has an adjustable mix control so they can be
blended, cut or boosted to your hearts desire. The Pitch Bay also
features an adjustable input gain that goes from clean to heavily
distorted to unleash your inner hesher. This device has an all analog
adjustable gain preamp, all analog signal path for th


e root, all digital pitch shifting engine and true bypass switching for
activation. Each Pitch Bay is made one at a time by hand in the private
beach front resort sector of Akron, Ohio.


Specs:



Three voices: Pitch up: Adjustable from 1 to 12 semitones above the
root. Pitch down: Adjustable from 1 to 12 semitones below the root.
Root: All analog dry path.

TMix controls for all three voices that allow each to be blended, boosted or cut.

TAdjustable input gain that goes from clean to heavily distorted.

TSmall footprint, measures 4 5/8 x 2 1/2 x 2.25 with top mounted jacks.

9v Operation.

True Bypass switching with a mix of analog and digital circuitry.
