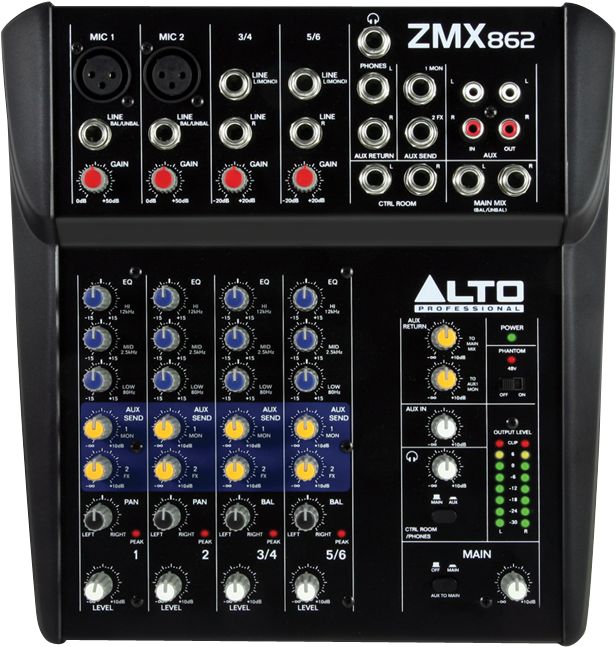

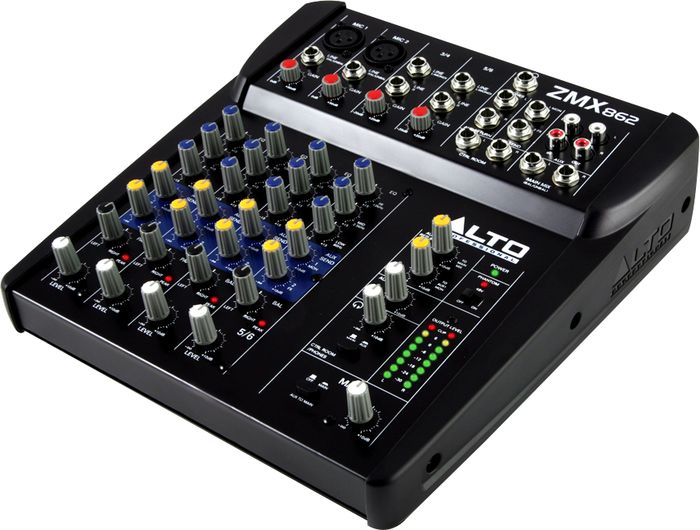

Alto Zephyr Series ZMX862 6-Channel Compact Mixer

Great-sounding mixer with smart capabilities at a manageable price.


In a market that has a glut of small format
mixing consoles, the Alto ZEPHYR ZMX862 is an excellent option. Its
combination of low price, good build quality and smartly designed
feature set has made it a real leader in a very competitive category.

The
ZEPHYR ZMX862 is a 6-channel, 2-bus mixer with two phantom
power-equipped microphone inputs, a three-band EQ and two AUX sends on
each of the two mono channels and on the two stereo channels, and
two-track inputs for audio playback.

You can plug dynamic,
condenser, and wireless microphones into the first two channels, and you
also get two stereo channel inputs for keyboards, drum machines, and
other instruments. What's more, you can easily plug in your MP3 player,
CD players, or audio from a DVD player into the CD/TAPE inputs. But, you
also have two AUX sends that you can use to send streams of audio from
your mixer to a digital effects unit, stage monitor, TV screen, or any
number of sources. Choose the ZMX862 as the audio central command for
your live performances, home studio, or video suite.

All Alto
Professional ZEPHYR ZMX mixers are designed with high headroom and ultra
low-noise mic preamps, so you get the full dynamic range of your mix
every time.

Sometimes venues are dark and it can be hard to see
what you're working with. Alto Professional solves this problem by not
only color coding each section of the mixer, but also by using brightly
colored knobs so that you can easily find what you need to adjust before
you ever lay a finger on the mixer. The blue, red, yellow and white
pots are instantly easy to identify in dim lighting. LED indicators for
output level, peak, and phantom power also assist in making sure that
you have multiple visual cues that compliment everything you're hearing.

The
Alto ZEPHYR ZMX862 is a good sounding, reliable compact mixer for solo
and duo acts, or for venues that have a need for a good sounding,
small-format mixing console.



Features:



Eight total inputs including XLR jacks with phantom power on channels one and two
Two mic input channels with gold plated XLR and balanced line inputs
Two stereo input channels with balanced TRS jacks
Extremely high headroom offering extra dynamic range
Three-shelf EQ on each mono and stereo channel
Two aux sends per-channel for external effects and monitoring




Order now and clean up your mix for rehearsal, gigs or permanent venue use.

Zephyr Series ZMX862 6-Channel Compact Mixer Specifications:



Frequency response: All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N: All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain range: Mic inputs (Channels 1-2): 0 – 50 dB
Line inputs (Channels 1-2): 15 dBu – 35 dBu
Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max voltage gain: 70 dB (mic input to main mix output)
80 dB (mic input to ctrl room / phones ouptut)
60 dB (mic input to aux send)
SNR: All inputs: > 110 dBu
Phantom power: +45 ~ +49V with switch control (Mic Pin2/Pin3 and Pin1)
Impedance: Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux outputs: 1 kΩ
All outputs: 120 Ω
Equalization: High: ±15 dB @ 12 kHz Mid: ±15 dB @ 2.5 kHz Low: ±15 dB @ 80 Hz
Crosstalk: Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left
or right)
Main
mix: AUX OUTPUT, PHONES OUTPUT: 0 dBu, unbalanced, 1/4" jacks Max
output: +22 dBu, unbalanced, 1/4" jacks Bus noise: < -90 dB @ 20 Hz ~
22 kHz (Channel and Main Mix levels at 0 dB, others at minimum)
Power supply: 18 V, 1000mA
Power consumption: 18 W
Dimensions ( w x h x d): 8" x 2.3" x 9.8"
Weight: 3.75 lb.
