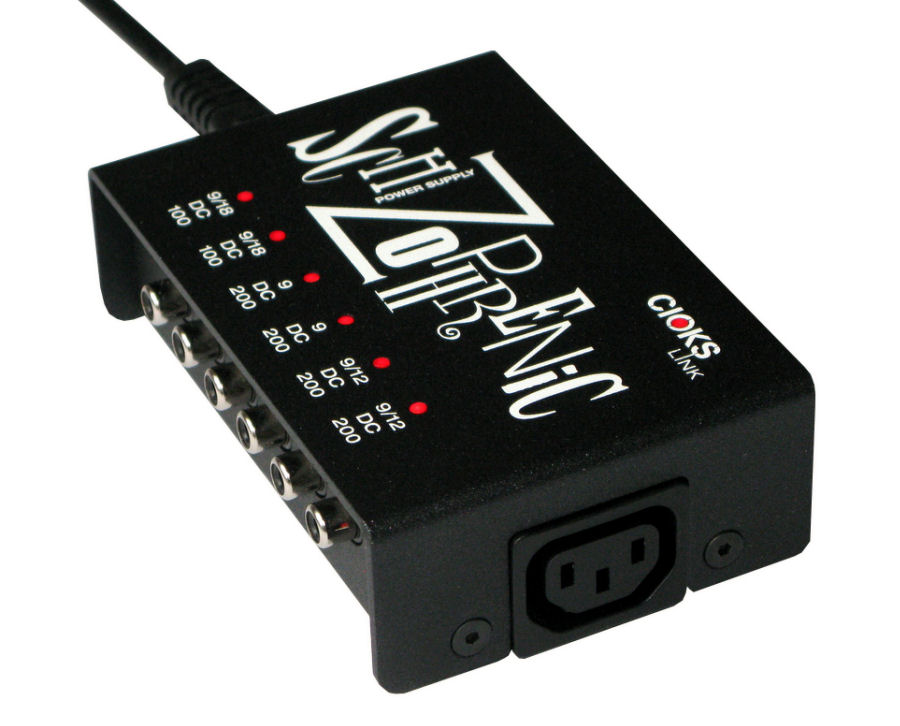

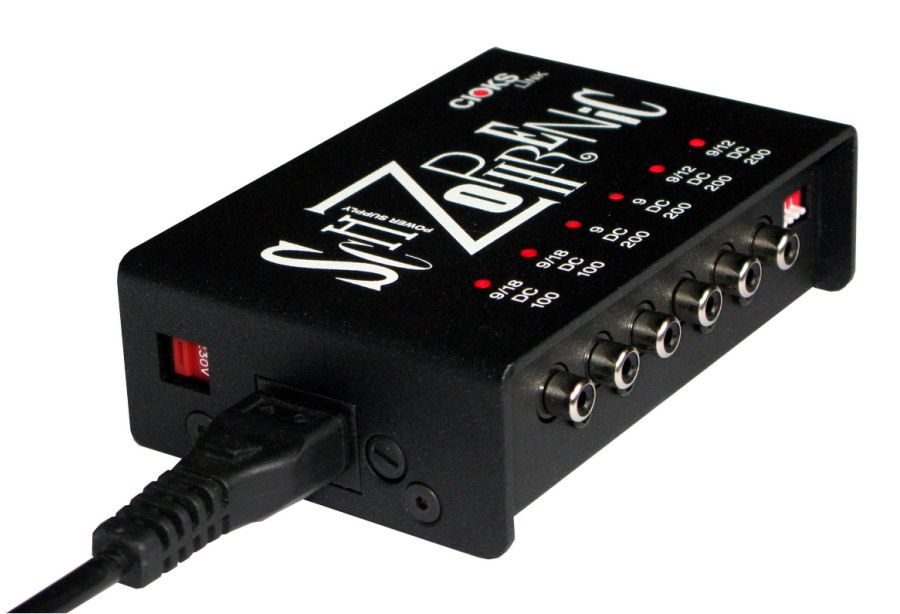

CIOKS Schizophrenic Link Power Supply

The new CIOKS Schizophrenic link is a small sized power supply for
effect pedals with a versatility yet not seen in such a small unit. It
has 6 isolated outlets and offers voltages 9, 12 and 18V with no need of
special Flex cables. The first two outlets can be set to 18V, where
the last two are configurable to 12V. If needed all 6 outlets will give
you 9V DC in the default position of the settings switch with a total
max. output current of 1.000mA.


Outlets 1 and 2 can individually be set to either 9 or 18V. Each of
these two will power any MXR/Dunlop pedal, which needs 18V, and most of
the Pigtronix ones. The few Pigtronix pedals, which need more than
100mA @ 18V like PolySaturator, Disnortion or the FAT Drive, you can
power by using outlets 1 & 2 the Parallel adapter Flex followed by a
standard black type 1 Flex. All dirt pedals, which can take 18V and
usually draw less than 100mA, can be powered by one of the outlets 1 or
2. These two outlets can of course also be used to power standard 9V
pedals in the default setting.





Outlets 3 and 4 delivering max. 200mA at 9V DC are each able to power
medium current draw pedals like BOSS DD-20 or CE-20, the digital ones
from EHX like Freeze, Cathedral, Ravish or the Ring Thing, tc electronic
Flashback X4 Delay and all the Strymons excl. TimeLine and Mobius just
to mention a few. The last two outlets also put out max. 200mA each,
but here you can individually choose the voltage for each outlet to
either 9 or 12V. These two outlets, when set to the default 9V, will
also power the pedals mentioned just before. In the 12V setting outlets
5 and 6 will each power one 4-button Line6 modeling pedal like ex. the
DL4. You can power four medium current draw pedals at voltages 9 or 12V
using CIOKS Schizophrenic link outlets 3-6.





CIOKS Schizophrenic link is also able to power two high current pedals.
Outlets 5 & 6 when usingwith Parallel adapter Flex will power one
tc electronic Nova, tc Helicon or one Eventide pedal, when both outlets
are set to 12V. Both Strymon TimeLine and Mobiuscan be powered with
Schizophrenic link by using two Parallel adapter Flex and outlet pairs 3
& 4 plus 5 & 6 still having outlets 1 and 2 free for other low
current pedals. Two Eventides, one Eventide and one Nova or one Strymon
and one Nova or Strymon TimeLine and Mobius are also possible options.





Older EHX pedals like ex. the Q-Tron, the Worm, Micro Synthesizer,
Deluxe Memory Man or Electric Mistress, where the original adapter was
unregulated 24V will be powered correctly with a series connection of
18V and 9V. You should use the Series adapter Flex followed by the
green type 4 Flex connected to outlet 1 set to 18V and outlet 2 at the
default 9V setting.





Combining outlets 3 and 4 using the Series adapter Flex will give you
enough current at 18V to power the older EHX POG or Holier Grail.





Courtesy AC mains outlet and link feature


This power supply, like the other two from CIOKS link range, features a

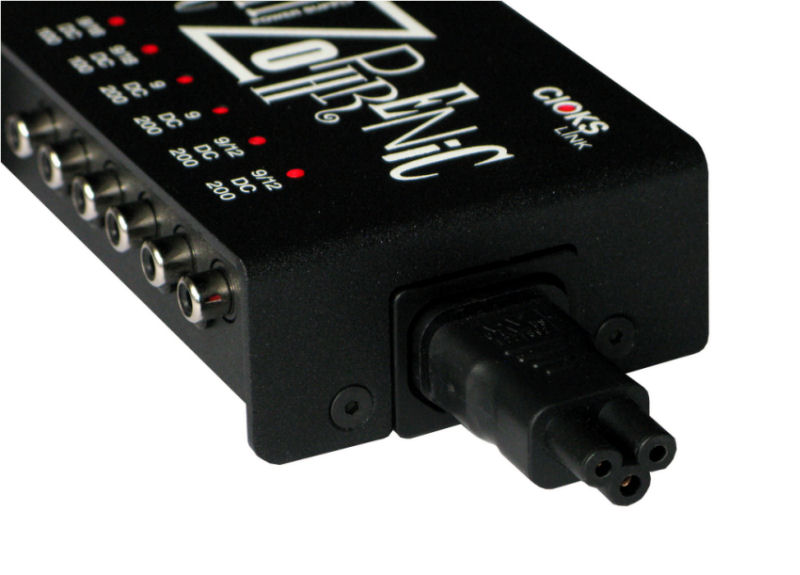

courtesy AC mains outlet. The unique position of the courtesy outlet
and the AC mains input allows you to link two or more units together by
means of an adapter as shown on the pictures on the right. In this way
you can power two or three power supplies just with one single mains
power cord. You can combine different power supplies to obtain a custom
power bank matching your specific needs. The courtesy AC mains outlet
can of course be used for other purposes than linking products from
CIOKS link range. The last unit in the chain will always have the
courtesy outlet free to your disposition.





Pedal board mounting


Five threaded holes in the bottom of the power supply are positioned in
a way to allow easy attaching of the unit to a pedal board. Especially
with Pedaltrain boards both top and underneath mounting is possible
using just two or three screws. All the needed parts are included. The
only thing you have to do is to drill either two or three holes in the
pedal board. (The drill is also supplied in the package.)





Features:




6 isolated outlets with 9, 12 or 18V

two outlets configurable to 18V

short circuit protection of all outlets

advanced LED monitoring of each outlet

120 or 230V mains voltage operation

detachable mains power cord

courtesy AC mains outlet

CIOKS unique mains link feature

9 Flex cables included

very easy mounting to pedal boards

durable steel enclosure with 2mm thick top





Flex cables included with CIOKS Schizophrenic link:


3 x 1030


2 x 1050


1 x 1080


1 x 2050


1 x 5050


1 x 6050


Total of 9 Flex cables.


Specifications:


Outlet 1-2: 9 or 18V DC / 100mA each


Outlet 3-4: 9V DC / 200mA each


Outlet 5-6: 9 or 12V DC / 200mA each





Size: 130x88x39mm (excl. detachable rubber feet)


Weight: 1,0kg





Warranty period: 5 years worldwide
