Shure PGXD14/BETA98H Digital Wireless System with Beta 98H/C Mic

Mic up horns and percussion instruments with this convenient, quality wireless mic system.

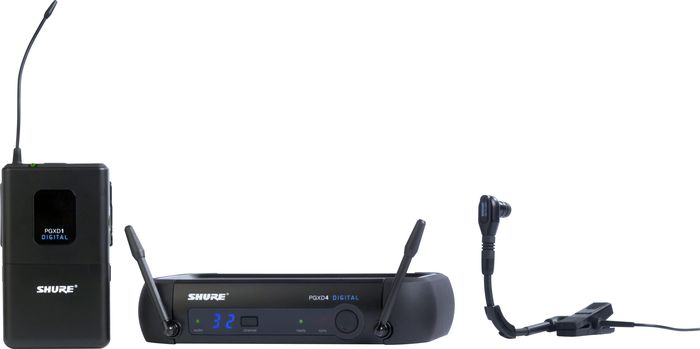

The PGXD14/Beta98H Digital Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the Beta 98H/C, a precision-engineered miniature cardioid condenser microphone with integrated clip and gooseneck for horn applications, as well as a PGXD1 bodypack transmitter, and a PGXD4 receiver.

The Beta 98H/C is a premium cardioid condenser instrument microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured, and an isolation shockmount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.

The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.


Shure PGXD14/BETA98H Digital Wireless System with Beta 98H/C Mic Features:


PGXD1 transmitter with WA302 Instrument Cable
Rugged, compact bodypack with belt clip and instrument cable
20Hz – 20kHz frequency range captures every nuance of your tone
Power, mute, and battery status LED
Up to 10 hours of continuous use from 2 AA batteries
200' (60m) operating range
26dB of continuously adjustable gain to match variable input levels

PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection

Beta 98H/C
3m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
Tailored frequency response for open, natural sound reproduction
Compact, lightweight construction provides a low degree of visibility
Interchangeable microphone cartridges are available:
RPM108 - Cardioid cartridge
RPM110 - Supercardioid cartridge


Order this inconspicuous, but effective wireless system today for 200' of instrumental freedom!



Shure PGXD14/BETA98H Digital Wireless System with Beta 98H/C Mic Specifications:



PGXD1 transmitter/strong>

Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1MΩ
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Power requirements:
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground

Beta 98H/C
Type: Condenser (electret bias)
Frequency response: 20 to 20,000Hz
Polar pattern: Unidirectional (cardioid)
Output impedance: Rated at 150Ω (actual)
Recommended minimum load impedance: 1 kΩ (May be used with loads as low as 150Ω with reduced clipping level
Output Level (0 dB = 1 volt per Pascal):
Open Circuit Voltage: -56dB (1.6mV)
Output Clipping Level (at 1kHz, THD < 1%):
2.5kΩ load: 11dBV (3.5V)
1.0kΩ load: 3dBV (1.4 V)
Maximum SPL:
2.5kΩ: 163dB
1.0kΩ load: 155dB
Dynamic Range (maximum SPL to A-weighted noise level): 132dB (2.5kΩ load)
Signal-to-noise ratio: 63dB at 94dB SPL (IEC 651)
Polarity:
Positive pressure on microphone diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector
Recommended Operating Voltage: 11 to 52 Vdc Phantom
Environmental conditions: Operating temperatures: -7° C to 49° C (20° F to 120° F)
Storage temperatures: 29° C to +74° C (-20° F to 165° F)
Relative Humidity: 0 to 95%
Net Weight: Microphone w/cable and preamplifier: 156g (5.5oz.)
