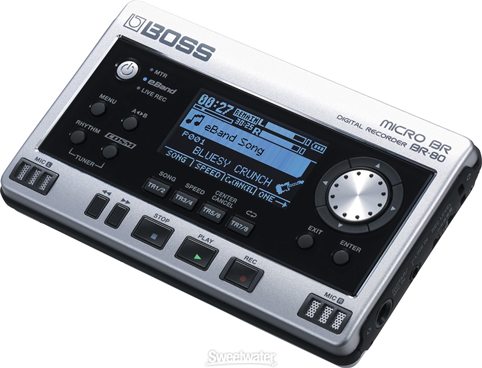

Boss Micro BR BR-80 Digital Recorder

Small enough to fit in your pocket, the BOSS MICRO BR BR-80 is the
ultimate new portable recording and jam-along tool for guitarists and
other musicians. It’s equipped with three modes to create, record, and
perform your music: an eight-track MTR (Multi-Track Recorder) mode; an
eBand mode for onstage backing tracks and phrase training; and a Live
Rec mode for instantly capturing high-quality stereo recordings. You
can even combine the three modes seamlessly. Record your phrase ideas
using Live Rec mode, for example, and then import the recordings into
MTR mode to use as foundations for song production. Once you’ve added
tracks, import your finished songs into eBand mode for backing-track
accompaniment at the gig. The MICRO BR BR-80 is truly a must-have for
all musicians.

The Complete Studio To Go
Don’t be fooled by its size — this little studio is loaded. The MTR
(Multi-Track Recorder) mode offers 64 V-Tracks with eight simultaneous
playback tracks. In addition, a dedicated stereo rhythm track is
provided, as well as an onboard library of great grooves to choose
from. The intuitive user-interface continues the simple-to-use
tradition of BOSS’ acclaimed BR series, with a graphical design that
follows the layout of a conventional recording console. With EQ,
reverb, and mastering tools plus, world-class COSM® amps and effects for
guitar, bass, and vocals the MICRO BR BR-80 is ready to deliver
complete, pro-quality recordings with ease.

Virtual Jam Band
The MICRO BR BR-80’s eBand mode offers musicians a fun way to play
along with their favorite songs. With the bundled eBand Song List
Editor software, you can import CD, MP3, and WAV audio files from a
computer via USB. The Center Cancel function can be used to minimize
the volume of pre-recorded vocals and solos for play- and sing-along
enjoyment. eBand mode is also an excellent partner for musical
training, as it lets you record your performance adjust playback speed
and/or pitch as desired.

Built-In Stereo Mic
In combination with the onboard high-grade stereo condenser
microphones, the MICRO BR BR-80’s Live Rec mode lets you capture
pristine stereo recordings instantly. Record vocals, guitar parts, and
song ideas the moment inspiration strikes. Your recorded audio files
can be easily imported into the MICRO BR BR-80’s MTR mode to use as a
basis for multi-track song production.

High-Quality Multi FX
The MICRO BR BR-80 is packed with professional multi-effects
powered by a newly developed custom DSP chip. Over 40 types of COSM amp
models give you instant access to a wide range of powerful guitar and
bass sounds. The preset patches allow first-timers and pros alike to
enjoy high-quality sounds immediately, while power users can tweak
parameters in micro detail for the ultimate tonal control. The
dedicated vocal effects, comparable with BOSS’s popular VE-20, include
doubling, harmony effects, pitch correction, and more.

PC Companion
The ultra-flexible MICRO BR BR-80 can be used as a stand-alone
digital recorder or as audio interface for a USB-equipped computer.
Cakewalk’s SONAR X1 LE DAW software (for Windows) is bundled with the
MICRO BR BR-80, giving users a full-fledged PC-based music production
environment with latency-free recording and a powerful range of COSM
amps and effects. Furthermore, the bundled Wave Converter software lets
you easily exchange data between the MICRO BR BR-80 and SONAR X1 LE or
any other DAW.


Features


Three modes: MTR (multi-track recorder), eBand, and Live Rec
Records directly to SD/SDHC memory card (up to 32 GB)
High-quality stereo condenser microphone built in for instant audio capture
64 V-Tracks and eight simultaneous playback tracks
eBand function for phrase training and play-along tracks
Huge library of built-in backing and rhythm patterns
World-class COSM® amps and effects onboard
Use as a USB audio interface with built-in effects
SONAR X1 LE software included


Micro BR-80 Digital Recorder Specifications:


Tracks
MTR Mode
Tracks: 8
Simultaneously recording track: 2
V-Track: 64 (8 V-Tracks per each Track)
eBand Mode
Tracks: 2 (stereo)
Simultaneously recording track: 2 (stereo)
LIVE REC Mode
Tracks: 2 (stereo)
Simultaneously recording track: 2
*Either the playback or the recording
Recording Media
SDHC Memory Card (4 GB to 32 GB)
SD Memory Card (1 GB to 2 GB)
Data Type
MTR Mode
Linear (Bit Depth: 16 bits)
eBand Mode
eBand Songs (Recording/Playback)
WAV (Bit Depth: 16 bits, Playback only)
MP3 (Bit Rates: 64 kbps to 320 kbps, Playback only)
LIVE REC Mode
WAV (Bit Depth: 16 bits, Recording/Playback)
MP3 (Bit Rates: 64 kbps to 320 kbps, Recording/Playback)
AD/DA
AD Conversion
24 bits
DA Conversion
24 bits
Sample Rate
44.1 kHz
Recording Time (conversion in one track)
MTR Mode
3 hours (1 GB), 100 hours (32 GB)
eBand Mode
eBand Song: 4 hours (1 GB), 130 hours (32 GB)
WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours(1 GB), 550 hours (32 GB)
LIVE REC Mode
WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours (1 GB), 550 hours (32 GB)
* The above-listed recording times are approximate. Times may be
slightly shorter depending on the number of songs that were created.
* The above number of the MTR mode is the total for all the tracks
that are used. If each of the eight tracks contain an equal amount of
data, the length of the resulting song will be approximately 1/8 of the
above.
Other
Nominal Input Level
GUITAR/MIC IN jack: -20 dBu (GUITAR/MIC SW = GUITAR), -40 dBu (GUITAR/MIC SW = MIC)
LINE IN jack:-10 dBu
Input Impedance
GUITAR/MIC IN jack: 1M ohm (GUITAR/MIC SW = GUITAR), 6k ohms (GUITAR/MIC SW = MIC)
LINE IN jack: 10k ohms
Nominal Output Level
PHONES/LINE OUT jack: -14 dBu
Output Impedance
PHONES/LINE OUT jack: 22 ohms
Display
Graphic LCD 128 x 64 dots (with backlit)
USB Functions
24-bit/44.1 kHz USB-AUDIO (Hi-Speed USB)
USB Mass Storage Class (Hi-Speed USB)
BUS Power operation

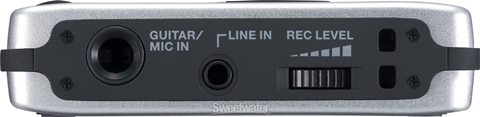

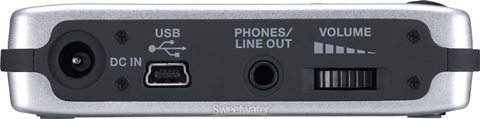

Connectors
GUITAR/MIC IN jack (1/4" phone type)
LINE IN jack (Stereo miniature phone type)
PHONES/LINE OUT jack (Stereo miniature phone type)
USB connector (mini-B type)
DC IN jack
Power Supply
DC 9V: AC Adaptor (sold separately)
Alkaline battery (AA, LR6) x 2
Rechargeable Ni-MH battery (AA, HR6) x 2
USB Bus Power
Expected battery life: Approximately 6 hours (Alkaline dry cell
batteries/with continuous playback of 8 tracks, power save function)
* May vary according to usage conditions, batteries used, and type of SD card used.
Current Draw
130 mA (DC IN)
Accessories
SD Memory Card, SONAR X1 LE DVD-ROM, USB Cable (mini-B type), Alkaline battery (AA, LR6) x 2, Owner's Manual
Options (sold separately)
AC Adaptor (PSA series), Silicone Rubber Case and Carrying Pouch: BA-BR80S
Size and Weight
Width
138 mm
5-7/16 inches
Depth
86 mm
3-7/16 inches
Height
22 mm
0-7/8 inches
Weight
140 g0 lbs. 5 oz.
