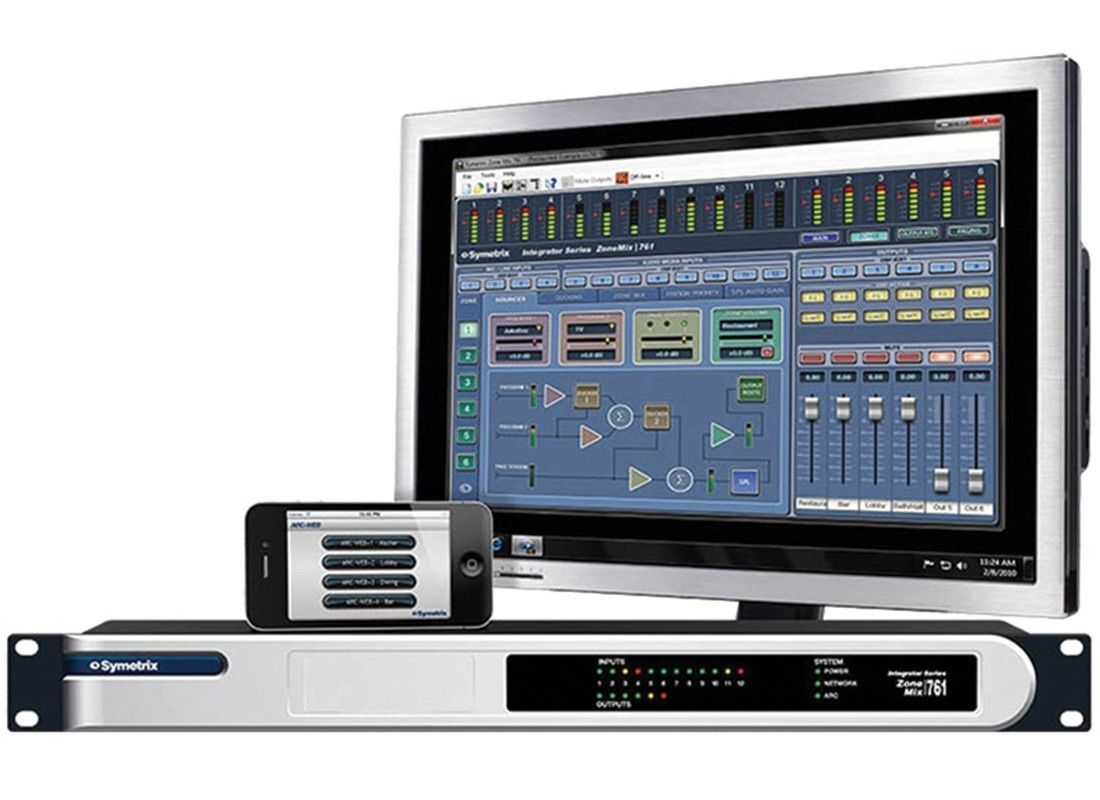

Symetrix Zone Mix 761 Mixer

The first product in the Integrator Series is the Symetrix Zone Mix 761, designed specifically to save the integrator both time and money.� Featuring twelve inputs (four microphone, eight stereo line level) and six outputs, it contains microphone pre-amplification, compression, AGC, matrix mixing, paging, feedback elimination, filters and equalization.


Save time and money with the Zone Mix 761 from Symetrix, the engineering-driven company of signal processing specialists.


Symetrix Zone Mix 761 Features:


Paging and music management zone mixer. Applications: Restaurants, Sports Bars, Fitness Clubs, Night Clubs,�HOTELS, Retail Locations, Casinos.
Four (4) Mic/Line Inputs: Paging from up to three (3) locations plus emergency page.
Eight (8) Audio Media Inputs for devices such as: CD Player, iPod, Karaoke, Satellite, TV Audio, DVD Audio, Juke Box, DJ Mixer, or Live Mixer.
Six (6) Outputs: Route audio media inputs, plus paging & emergency paging to as many as six (6) unique locations.
Wizard-driven software set-up; network ready.



SPECIFICATIONS:


Inputs


Number of Inputs: 12 total (4) switchable mic or line, (8) monosummed stereo -10 dBV line level.
Connectors: Euroblock (line and mic) RCA (Audio Media source)
Impedance (Euroblock): > 6.6 kΩ balanced, > 3.3 kΩ unbalanced
Impedance (RCA): > 20 kΩ unbalanced
Max. input line level: +24 dBu mic/line, +8 dBV RCA
CMRR: > 40 dB, typically > 50 dB @ 1 kHz
Mic/Line gain: 0 – 54 dB
Mic EIN: < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
Mic Phantom Power: 20 VDC


Outputs


Number of Outputs: 6
Connectors: 3.81 mm terminal blocks.
Type: electronically balanced
Impedance: 200 Ω balanced, 100 Ω unbalanced
Max Output Level: +24 dBu
The External Control Wizard quickly configures ARC Wall Panels and the External Control inputs.
The Connection Wizard effortlessly connects your computer to the Zone Mix 760 hardware saving time and money.


System


Sample Rate: 48 kHz
Dynamic Range: > 110 dB A-weighted
THD+N: -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
Frequency Response: 20 Hz – 20 kHz, +/- 0.5 dB
Interchannel Crosstalk: >-90dB typical
Latency: < 1.6 ms, input to output with all DSP inactive.


Physical


Shipping Weight: 8.15 lbs. (3.70 kg)
Dimensions: 1U (WDH: 48.02 cm x 22.15 cm x 4.37 cm / 18.91 in x
8.72 in x 1.72 in), depth is specified from front panel to back of connectors.
