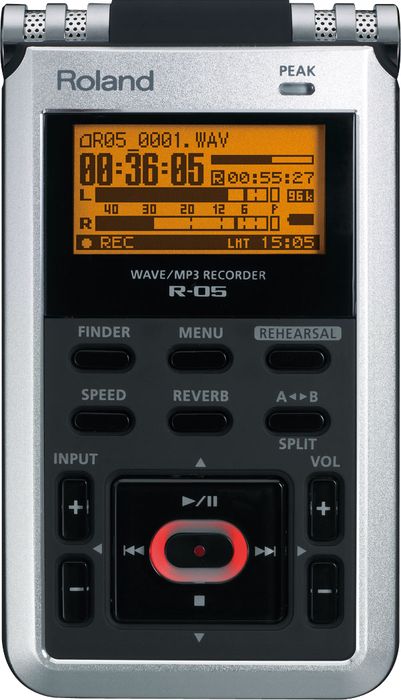

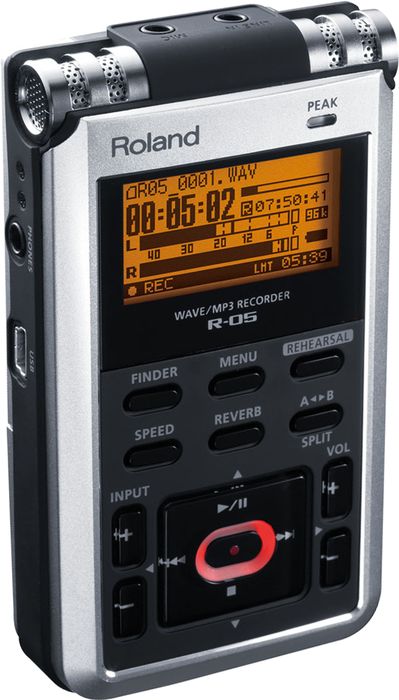

Roland R-05 WAV/MP3 Recorder

A handheld 24-bit/96kHz WAV/MP3 recorder featuring a built-in stereo mic and onboard editing.




The compact Roland R-05 WAV/MP3 Recorder is easy to use, affordable, and
packed with big-ticket features that raise the bar in its price class.
Experience crystal-clear 24-bit/96kHz capture, enhanced recording and
editing features, and extended battery life (over 16 hours per charge).
On stage, in rehearsal, at school, on the street, in the
boardroom—whenever inspiration strikes, the Roland R-05 captures the
moment with convenience and quality.

24/96 Recording
The Roland R-05 provides pristine, uncompressed stereo recording
directly to an SD card (2GB included) — up to 24-bit/96kHz resolution.
Whether recording directly with the built-in stereo mic or capturing
sounds from an externally connected microphone or stereo line input,
you'll be impressed with the R-05's detail and clarity. And for
worry-free recording, the convenient Rehearsal mode ensures that you
won't overload the input.

Onboard Editing
Even though the Roland R-05 recorder integrates fluidly with computers
via USB 2.0, this new-generation recorder doesn't require a PC for
editing. For speed and convenience, you can trim, divide, and combine
within the R-05. And for those who'd like to apply a high-gloss finish
to their recordings, the R-05 is equipped with built-in reverb.

Rehearsal Mode
In a rehearsal studio, you can make clear recordings of your band, even
at high volume levels. The R-05 can automatically set the optimum
recording level, and can split the songs for you automatically. It's
also possible to simultaneously record a high-quality WAV file for CD
production and an MP3 file for file sharing.

Music-Practice Partner
The Roland R-05 helps you practice your musical instrument or your
vocals. You can repeatedly loop a specified region of audio, or change
the playback speed without changing the pitch. You can play back a
difficult phrase slowly or play back at high speed to grasp the overall
structure of a song in a short time.

For Non-Musicians Too
Musicians will naturally gravitate to the Roland R-05, but this portable
recorder is great for many non-musical applications as well. You can
record lectures, speeches, and meetings, for example. The Roland R-05
recorder's high-sensitivity, built-in microphone will clearly capture
all of the voices in a room. The included windscreen and tripod mount
enhance optimal placement and cleaner recordings as well.

Protection On The Go
When you take your R-05 out in the field to record, protect it with the
optional OP-R05C cover/windscreen (#485810) or the optional OP-R05S
silicon rubber cover—all allow access to controls and display for
protected use.




Features

High-quality stereo recording (24-bit / 96kHz) with the built-in stereo mic or external input
Records directly to SD card with extended battery life (over 30 hours continuous playback, over 16 hours continuous recording)
Includes 2GB SD card
Strong, attractive metallic exterior
Onboard editing functions; built-in reverb
Music-practice features (change tempo without changing pitch, loop playback, etc.)
Auto record start, auto song split, auto level adjust
Pre-Record function (captures 2 seconds of audio that precedes pressing REC)
Use as a high-quality portable audio player (plays WAV and MP3 files)
Windscreen and tripod mount included



Get an affordable pocket recorder with advanced features today.

R-05 WAVE/MP3 Recorder Specifications:


Recorder Part
Tracks: 2 (stereo one pair)
Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
Data Type (Recording)
WAV (Sampling Rate: 44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates: 64/96/128/160/192/224/320 kbps)
WAV + MP3 (Sampling Rate: 44.1/48 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps)
Data Type (Playback)
WAV (Sampling Rate: 32/44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32 - 320 kbps or VBR)
Memory Card: SD Card, SDHC format compatible
Recording Time*
WAV (24-bit/96 kHz): 27 mins/GB
WAV (24-bit/88.2 kHz): 30 mins/GB
WAV (24-bit/48 kHz): 54 mins/GB
WAV (24-bit/44.1 kHz): 59 mins/GB
WAV (16-bit/96 kHz): 40 mins/GB
WAV (16-bit/88.2 kHz): 44 mins/GB
WAV (16-bit/48 kHz): 81 mins/GB
MP3 (320 kbps): 392 mins/GB
WAV (16-bit/44.1 kHz): 88 mins/GB
MP3 (128 kbps): 980 mins/GB
* Each recording time is approximate. The times may change depending on the card specifications.
* In the case of plural files, the sum of recording time would be shorter than above.
Input/Output

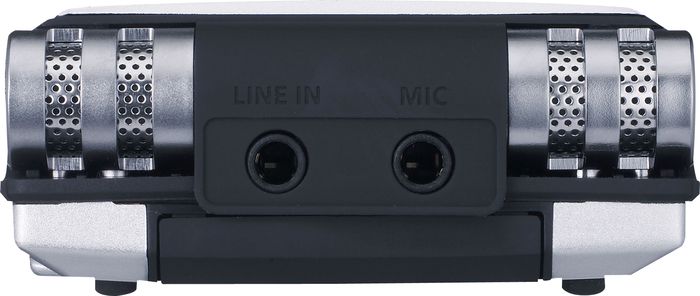

Audio Inputs: Internal Stereo Microphone, Mic input (Stereo
miniature phone type, plug-in powered mic), Line input (Stereo miniature
phone type) *The Internal/External Mic and the Line input can't be used
at the same time (Line input priority).

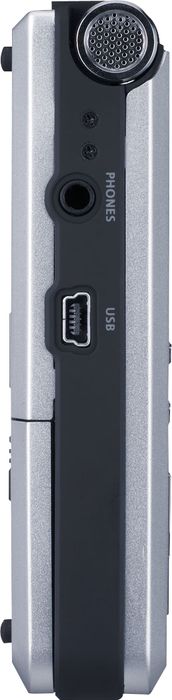

Audio Output: Phones (Stereo miniature phone type)
Nominal Input Level (Variable)
Mic input: -33 dBu (MIC GAIN is H, Default input level)
Mic input: -15 dBu (MIC GAIN is L, Default input level)
Line input: -7 dBu (Default input level)
* 0 dBu = 0.775 Vrms
Input Impedance
Mic input (MIC GAIN is H): 7k ohms
Mic input (MIC GAIN is L): 5k ohms
Line input: 8 k ohms
Output Level: 20 mW + 20 mW (In case 16 ohms load)
Recommended Load Impedance: 16 ohms or greater
Frequency Response: 20 Hz to 40 kHz
USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)
Effects
Reverb: 4 types (Hall1, Hall2, Room, Plate)
Speed change: 50 - 150 % of playback speed
* Playback only. Excludes playback in 88.2 kHz or 96 kHz.
* Reverb and Speed Change can't be used at the same time.
Others
Display: 128 x 64 dot graphic display

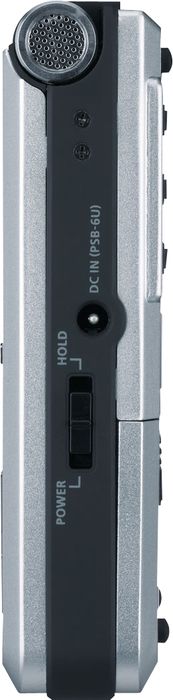

Power Supply: AC Adapter
Alkaline dry battery LR6 (AA) type x 2 or Nickel Hydrogen battery (HR15/51) x 2
Current Draw: 290 mA (maximum)
Duration of continuous use with alkaline battery operation
Playback: over 30 hours
Recording: over 16 hours
* These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Quick start guide, SD card, Batteries (two AA), USB cable (mini-B type), Windscreen
Options (sold separately): AC Adapter: PSB6U series, Silicone
Rubber Case: OP-R05S, Cover / Windscreen Set: OP-R05C, Carrying Pouch:
OP-RP1, Microphone Stand Adapter: OP-MSA1, Binaural Microphones /
Earphones: CS-10EM, Stereo Microphone: CS-15S
Size and Weight
Width: 2" - 8" (60mm)
Depth: 4-1/16" (103mm)
Height:1" (25mm)
Weight: 5 oz. (140g)
