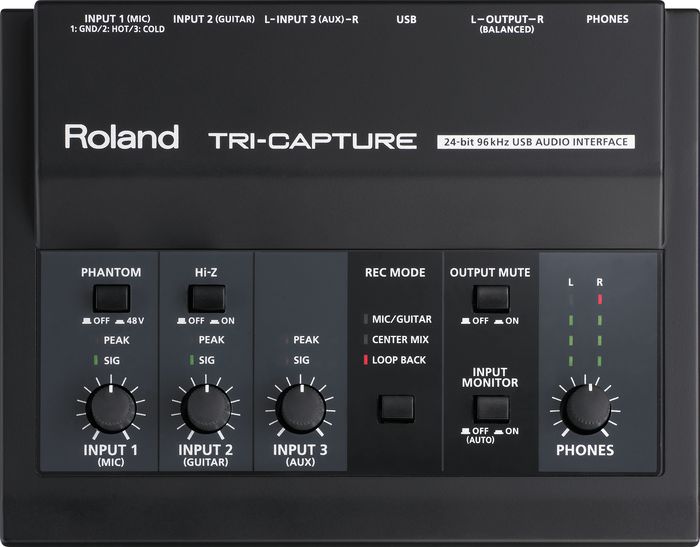

Roland TRI-CAPTURE: USB Audio Interface

The power of three! Triple inputs & REC Modes




The new head of its class is the multifaceted TRI-CAPTURE USB interface —
a unique, compact audio interface optimized for personal and mobile
recording, vocal and guitar recording, and streaming-internet
applications. With its mixer-like design and dedicated front-panel
controls, TRI-CAPTURE makes it easy to mix, control, and monitor a
variety of signals. Plug a microphone into the XLR input, an instrument
into the 1/4-inch jack, and a stereo instrument or device into the AUX
input. The unique REC MODE section provides instant selection of
recording scenarios, including LOOP BACK for web streaming applications.
TRI-CAPTURE is full-featured yet portable, and is USB bus powered for a
clean, simple setup.



Features

Affordable, easy-to-use interface for guitarists, vocalists, and other musicians
Also works great for video production, web streaming, and creating podcasts with unique LOOP BACK function
XLR mic input with phantom power, plus 1/4-inch input with Hi-Z switch for connecting a guitar directly
Stereo AUX input with dedicated volume control
Balanced 1/4-inch TRS outputs and headphone jack
Low-latency ASIO driver; recording and playback at rates up to 24-bit/96 kHz
USB bus powered with 24-bit/96 kHz operation
Cakewalk SONAR X1 LE included



Full-featured yet portable, and USB bus powered!


NUMBER OF AUDIO RECORD/PLAYBACK CHANNELS:
Record: 1 pair of stereo
Playback: 1 pair of stereo
Full duplex (except 96 kHz)
SIGNAL PROCESSING:
24 bits (linear)
SAMPLING FREQUENCY:
96 kHz, 48 kHz, 44.1 kHz
NOMINAL INPUT LEVEL:
Mic input: -60 to -30 dBu
Guitar input: -25 dBu
Line input: -10 dBu
OUTPUT LEVEL:
Output jacks: +4 dBu
(input terminated with 1 k ohm, Input Monitor: OFF, IHF-A typ.)
INTERFACE:
USB
REC MODES
MIC/GUITAR
ALL INPUTS
LOOP BACK (expect 96 kHz)
CONTROLLERS:
INPUT1 (MIC), INPUT2 (GUITAR), INPUT3 (AUX) knob
PHONES knob
PHANTOM button
Hi-Z button
REC MODE button
OUTPUT MUTE button
INPUT MONITOR button
SAMPLE RATE switch
MODE switch
INDICATORS:
REC Mode indicator
PEAK indicators
SIG indicators
OUTPUT Level Meter

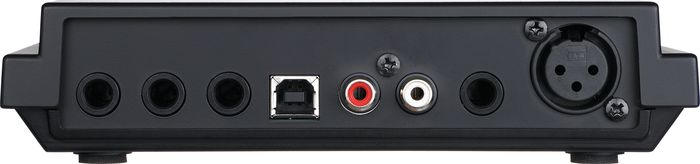

CONNECTORS:
INPUT1 (Mic) jack (XLR type, balanced, phantom power DC 48 V, 10mA Max)
INPUT2 (Guitar) jack (1/4-inch phone type)
INPUT3 (AUX) jacks (L, R) (RCA phono type)
Output jacks (L, R) (1/4-inch TRS phone type (balanced))
Headphone jack (Stereo 1/4-inch phone type)
USB connector (USB Type B)
POWER SUPPLY:
Supplied from the computer via USB
CURRENT DRAW:
480 mA
ACCESSORIES:
Owner's Manual
CD-ROM
USB cable
Cakewalk SONAR LE DVD-ROM (for Windows)
SIZE AND WEIGHT:
Width: 6-3/4 inches (171 mm)
Depth: 5-5/16 inches (134 mm)
Height: 1-5/8 inches (40 mm)
Weight: 0 lbs. 12 oz. (320 g)
0 dBu = 0.775 Vrms
