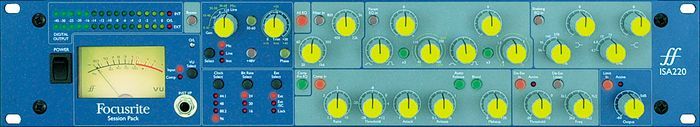

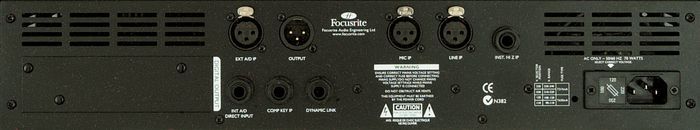

Focusrite ISA 220 Session Pack Mic Preamp

Great Focusrite EQ and classic preamp sound plus a few new tricks -- it doesn't get much better than this.


The ISA 220 Session Pack provides all the audio
precision tools required to infuse your session with Focusrite's
renowned sonic performance. It features many of the original circuits of
the flagship ISA 430 MKII Producer Pack, and also includes some new
facilities of its own. It also features the same digital output option
as the original ISA 430, providing you with a high-quality digital route
direct from the ISA 220 into your digital recording system.

The ISA 220 starts with the classic Focusrite transformer-coupled
microphone pre amp, with phantom power and phase reverse. A four-band
Focusrite EQ section follows, based on the EQ circuits featured in the
ISA 430 and ISA 110. (The original ISA 110 was designed by Mr. Rupert
Neve for George Martin's Air Studios in London.) The compressor features
a proprietary Class A VCA with side-chain circuitry, and can be placed
in the signal flow before the EQ at the press of a button, if desired.
Also included is a unique feature labeled "Blend," which provides a
means of achieving smoother compression at extreme settings by mixing
uncompressed source signal along with the compressed portion.

The ISA220 also features an opto-based de-esser which uses a combination
of EQ and phase cancellation to create a smoother and less obtrusive
result. Last but not least, a frequency adaptive, 3-band limiter is
provided to ensure distortion-free limiting. For visual reference, ISA
220 provides a classic analog VU-style meter which can be switched to
display input or compressor gain-reduction levels. A pair of 16-segment
LED meters are included to display output levels, both analogue and
digital in conjunction with the optional 24-bit/96 kHz stereo digital
output (AES/EBU, S/PDIF & TOSLINK) card. This card offers 44.1 - 96
kHz operation and can be used as a high-quality mono/stereo tracking
converter, or at mix down as a stereo converter for final mastering.


Focusrite ISA 220 Session Pack Mic Preamp Features:


Classic Focusrite transformer-based microphone preamplifier
New Focusrite EQ featuring elements of the original ISA 110 EQ circuit
Hi and Lo pass filters
Precision VU metering of input level or compressor gain reduction (switchable)
32-LED digital meter for monitoring both the internal input and the rear-panel external input
Focusrite discrete Class A VCA compressor design with order of compressor and EQ modules switchable from the front panel
New Blend feature allows uncompressed dynamics to be merged with the compressed path
De-esser with design based on optical technology
De-esser listen mode for independent monitoring of isolated sibilant signals
Frequency-adaptive limiter to prevent critical digital overloads
Optional stereo A/D 24-bit/96kHz Delta Sigma converter dithers down to 20 or 16 bits
Mic (rear panel XLR), line, and instrument (front panel) inputs
Global bypass switch


Fosucrite EQ, compression, and preamp, with circuits from the venerable ISA 110 - what are you waiting for?



Focusrite ISA 220 Session Pack Mic Preamp Specifications:



Mic
Noise: 123dB EIN with 150 Ohms input resistance at 60dB of gain
THD: 0.0008%

Inst. Hi Z I/P
Noise: -96dBu
THD: 0.003% with 0dBu
Compressor
Threshold Range: -28dB to +12dB
Ratio: 1.5:1 to 10:1
Slope: Soft knee
Attack: 500 microseconds to 25 milliseconds
Release 100mS to 4S, variable or auto (program dependent)

De-Esser
Threshold Range: 22dB
Frequency Range: 2K2 to 9K2
Ratio at Centre
Frequency: 2:1

Limiter
Threshold Range: 20dBu
Ratio: infinite (Brick Wall)
Attack: Frequency dependent
