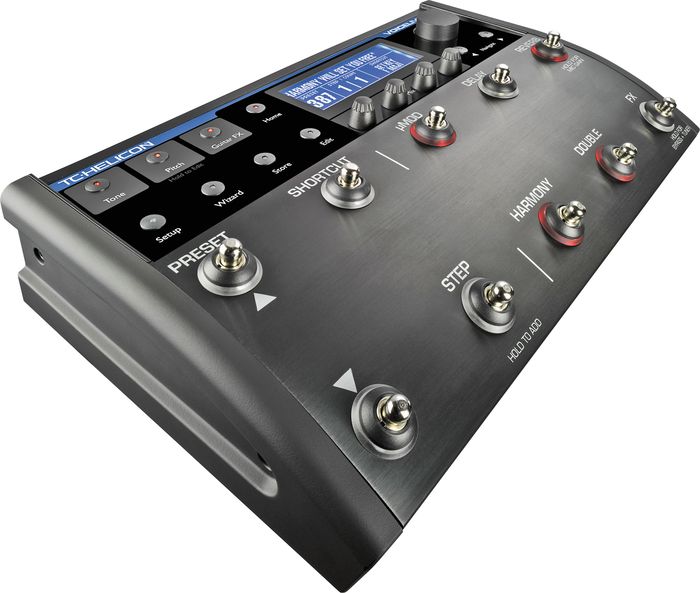

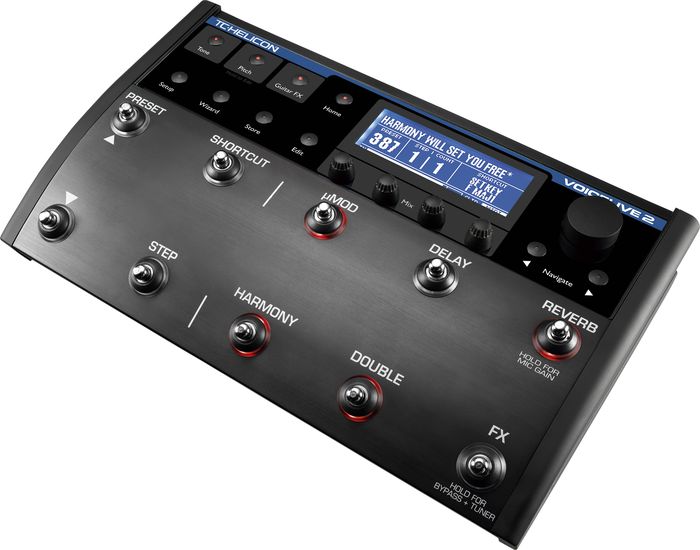

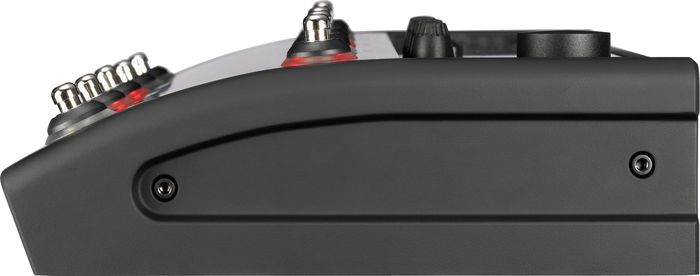

TC Helicon VoiceLive 2 Floor-Based Vocal Processor

A completely redesigned user interface, a smoother algorithm, new reverb, and more for better vocals.




The VoiceLive 2 floor-based vocal processor from TC Helicon makes it
easier to lead your own vocal backup group while sounding rich and
authentically human at the same time. It starts with a guitar, MIDI
keyboard, or aux-input controlled vocal harmony algorithm with four
intervals, each of which can be unison-doubled, or 8 discrete voices
controlled by your MIDI keyboard playing. And when you want to tap into
your gospel soul, VoiceLive 2 effects pedal gives singers a Choir
algorithm that creates the massive multi-voice group vocal sound to
bring home those classic choruses.

Vocal effects pedal with more automatic features
When you're worrying about parameter settings, you spend less time
focusing on your music. So when TC Helicon set out to build VoiceLive 2,
they automated several of its features.

•Auto Mic—Gain Set the mic gain from a standing position just by
singing. Once this is done there are no knobs to be jostled in transit
and you can still do manual tweaks if you feel you'd like to.
•Auto Gate—Feedback a problem? An all-new Auto Gate listens to you and
adjusts to reduce feedback and effects leak-through while you're not
singing.
•Adaptive Tone—A single push of the Tone button engages studio-quality
Shape EQ, compression, and de-essing that adapts to the tonal range of
your singing style and voice for increased impact and smoothed dynamics.
Finally, your live singing can have that studio polish.
•Reverb and Delay—ducking Increase the sustaining tail of your reverb
and delay effects while carving out plenty of room for your lyrics with
ducking. The level of the effects is reduced while you sing and then
subtly increases after your last syllable for a paradoxical deeper
ambience with enhanced intelligibility. Of course, this is all
automatic—just select a ducking reverb or delay style, and VoiceLive 2
does the rest.

A vocal effects powerhouse
All the processing power in VoiceLive 2 is available simultaneously to
take your voice, your performances, and your music over the top. In
addition to vocal harmony, you can construct or select preset effect
chains containing effects to:

•Distort your voice—Grunge is good. Make a statement with the Transducer
block that also has 4 pole filters for great megaphone and telephone
effects.
•Clone your voice—Employ up to 4 voices of humanized unison overdubs in
addition to the harmony voices. This sound has been used since recording
began to fatten vocals. Now it's your turn.
•Expand your space—A completely new reverb algorithm envelops your voice
in dense ambiances from teeny live rooms to concert halls and bright
plate simulations. Don't forget the delay block can serve to add depth
or become a highlight effect whether it's using tap tempo or tape delay
styles.
•Mod ya later—The full μMod block brings lush chorus, slick microtuning,
swooshing flange, and more to the party. Those half-time bridge
sections never sounded more psychedelic.

Random access
Having a large chain of effects won't do as much good if you can't add
and remove links in the chain when the mood strikes. The individual

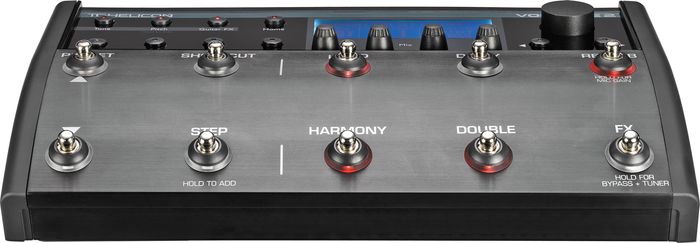

stompbox footswitches for Harmony, Doubling, μMod, Reverb, Delay, and FX
give you the flexibility to layer or simplify at will. Also, there's a
Shortcut footswitch that can be assigned to add other interesting
features such as tap tempo, harmony hold, and others. There is no
separation between Song mode and Preset mode as there was in the
original VoiceLive; each preset can have up to 50 steps each of which
can contain a different preset or a simple modification of the main
preset. Go ahead, get dirty, and start creating now.



Features

5x processing power of typical floor processor
Separate harmony and doubling blocks
New reverb, tap delay, μMod
FX block for T-Pain effect, megaphone, distortion
Wizard button helps you find the right preset
Stompbox access to 6 effect blocks
One button access to global Tone, Pitch, and Guitar FX
Easy editing of all parameters
Simple preset chaining with Step feature
USB for updates, backups, and audio streaming
All effects can be used simultaneously
Tone tailors adaptive EQ, compression and de-ess to your voice
Adaptive gate reduces mic input when you're not singing
Mic or Line input with digital controlled mic gain
Control harmonies with guitar, MIDI, or MP3 input
Up to 8 voices with MIDI keyboard control or 4 doubled harmonies
All new algorithm is smooth and natural even for extreme vocal styles
Autosensing of harmony control instrument
Guitar input with auto-mix , Guitar FX, and transparent pass-thru
Stereo 1/8" (MP3 player) input
Stereo XLR, 1/4" and Headphone outputs
MIDI in, out, and thru
Expression pedal input
USB for updates, back-up and audio streaming

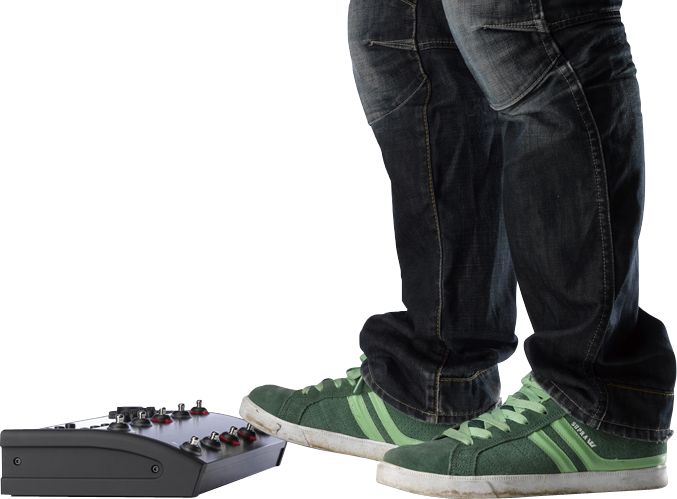

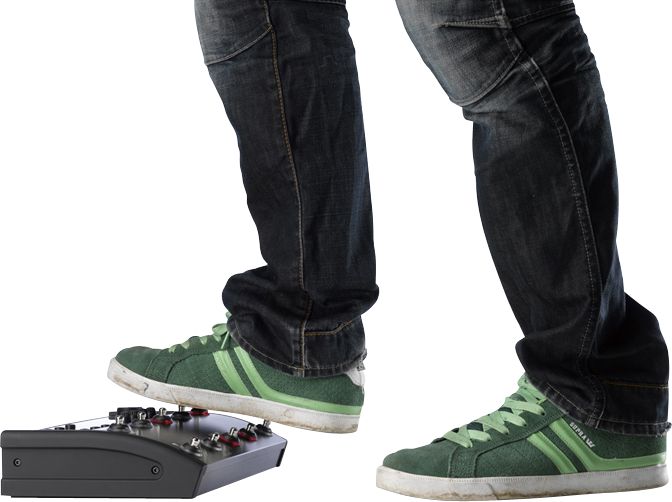

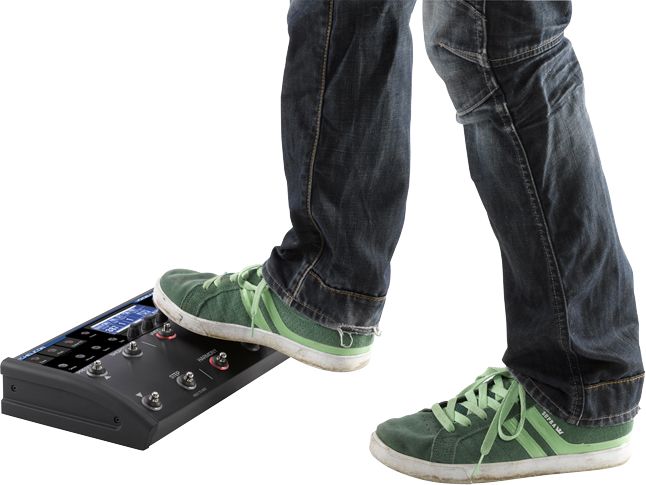

Digital mic-gain control is engaged with your feet
Natural curve puts footswitches at comfortable angle

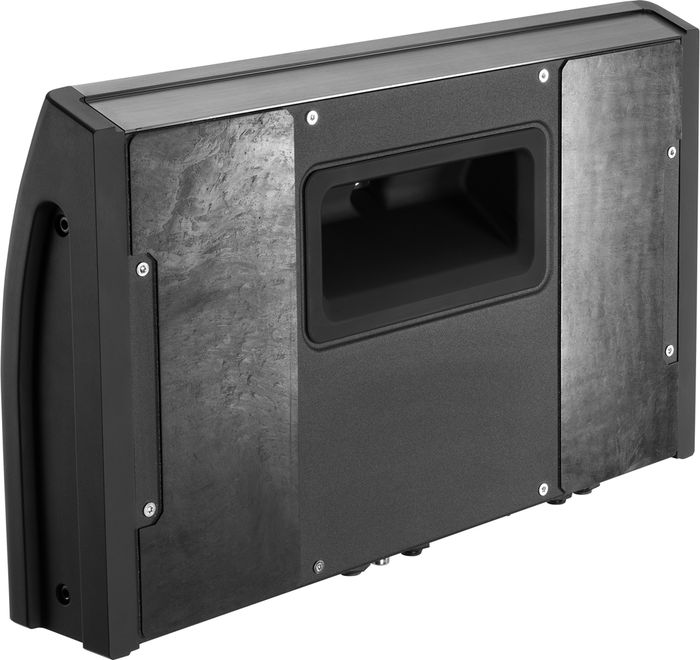

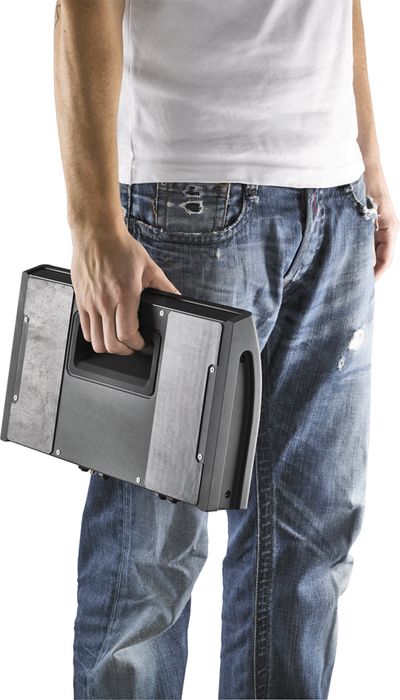

Recessed rubberized handle
Bright LCD and large lettering
Rubberized end caps and edit/mix knobs
Extruded aluminum and steel chassis



Get the vocals you're looking for, from huge choirs to gritty grunge. Order VoiceLive 2 now.

VoiceLive 2 Floor-Based Vocal Processor Specifications:


Digital Inputs and Outputs
Connectors: RCA Phono (S/PDIF)
Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96kHz
Analog Inputs
Connectors, balanced: Mic (XLR), Line (1/4" phone jack)
Impedance-Balanced/Unbalanced: Mic (2.14/1.07kOhm) Line (13/6,5kOhm)
Mic Input Level @ 0dBFS: -49dBu to +10dBu
Line Input Level @ -37dBu to +22dBu: -37dBu to +22dBu
EIN @ Max Mic Gain Rg = 150ohm: -126dBu
Mic/Line Input SNR: > 107dB
Guitar Input impedance: 1MOhm
Guitar Input Level @ 0 dBFS: 14 dBu to -4 dBu
Guitar Input SNR: >104dB
Aux Input Level @0dBu: +2dBu
A-to-D Conversion: 24-bit, 128 x oversampling bitstream, 110dB SNR A-weighted
Analog Outputs
D-to-A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
Connectors, balanced: XLR, 1/4" phone jack
Output Impedance Balanced/ Unbalanced: 100/50ohm
Output Range (Line/Mic Level): 16dBu/0dBu
Dynamic Range: > 109dB, 20Hz to 20kHz
Frequency Response: +0/-0.3dB, 20Hz to 20kHz
Headphone out: Mini phono stereo jack, 32ohm, +16dBu max. (180mW max)
EMC
Complies with EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B
Safety
Certified to: IEC 65, EN 60065, UL6500 and CSA, IEC 65, EN 60065, UL6500 and CSA
Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing
Control Interface
USB: USB-B
MIDI: In/Out/Thru: 5-pin DIN
Pedal: 1/4" TRS phone jack
Supplementary
Display: 192 x 64 Blue STN LCD, White Back light
Dimensions: 13.8"W x 3"H x 8.5"D
Weight: 5lb.
External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60Hz (auto-select)
Power Consumption: <14W
Warranty parts and labor: 1 year






THSD : EB525: www.music-blvd.com
