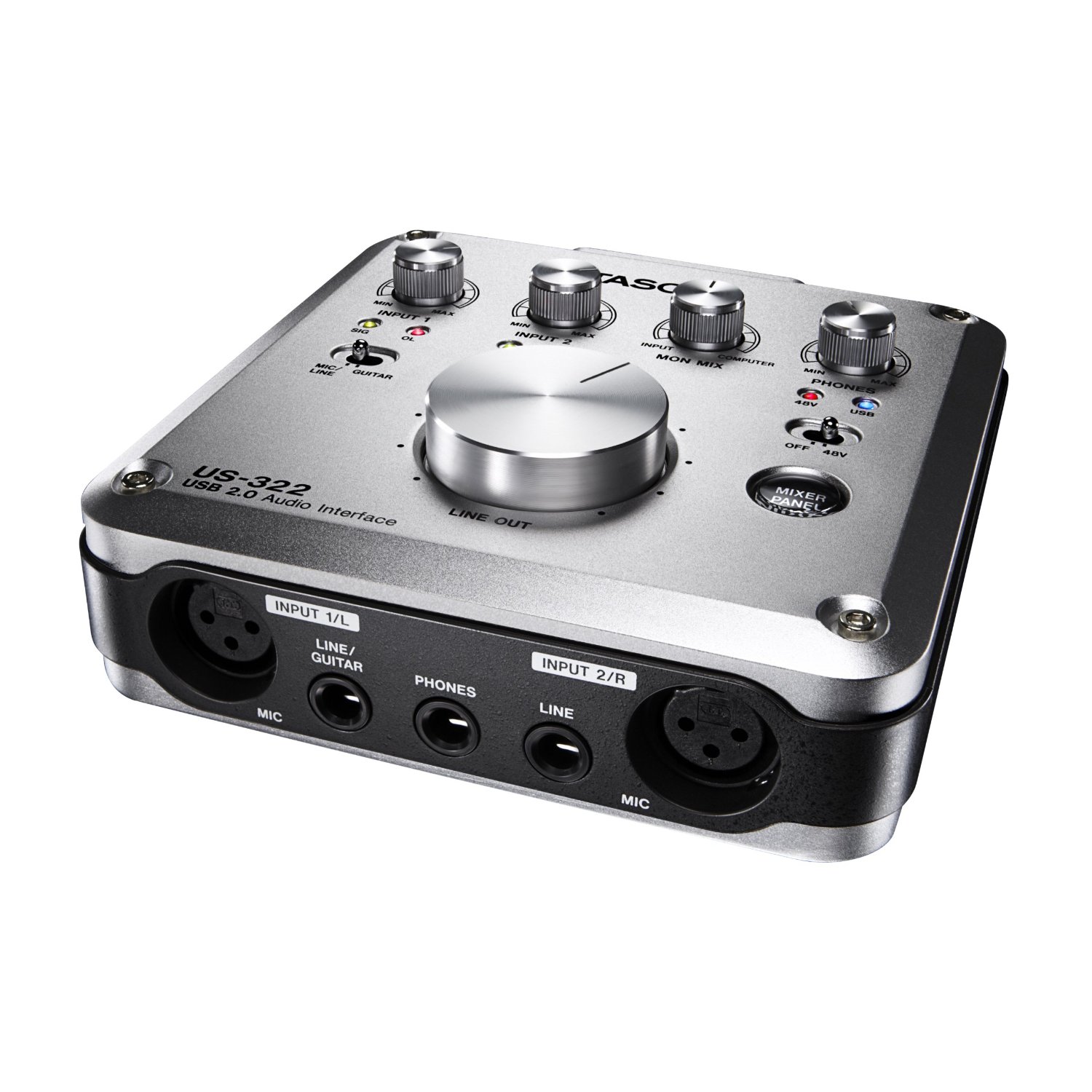

TASCAM US-322 2x2 USB Audio Interface

USB 2.0 audio interface with on-board DSP mixer and effects.




The Tascam US-322 USB audio interface is made for professionals with 2
XLR/TRS mic/line inputs and 2 outs. The US-322 also features an on-board
DSP mixer with high-quality DSP effects perfect for sweetening any
project.

High-Quality HDDA – High Definition Discrete Architecture – Mic Pre-Amplifiers
To ensure superior sound, TASCAM organized months of tests and trials to
design the HDDA mic pre-amplifier. Manufactured with a discrete
structure and select premium parts, the HDDA pre-amp achieves a wide
frequency response (10Hz to 68kHz), high S/N ratio, low noise and low
THD+N.


Up to 192kHz/24bit Recording
In the process of creating music, many engineers have started utilizing
high-resolution formats while recording to ensure the best quality
sounds. The US-322 is suited perfectly for these high-quality minded
recordings.

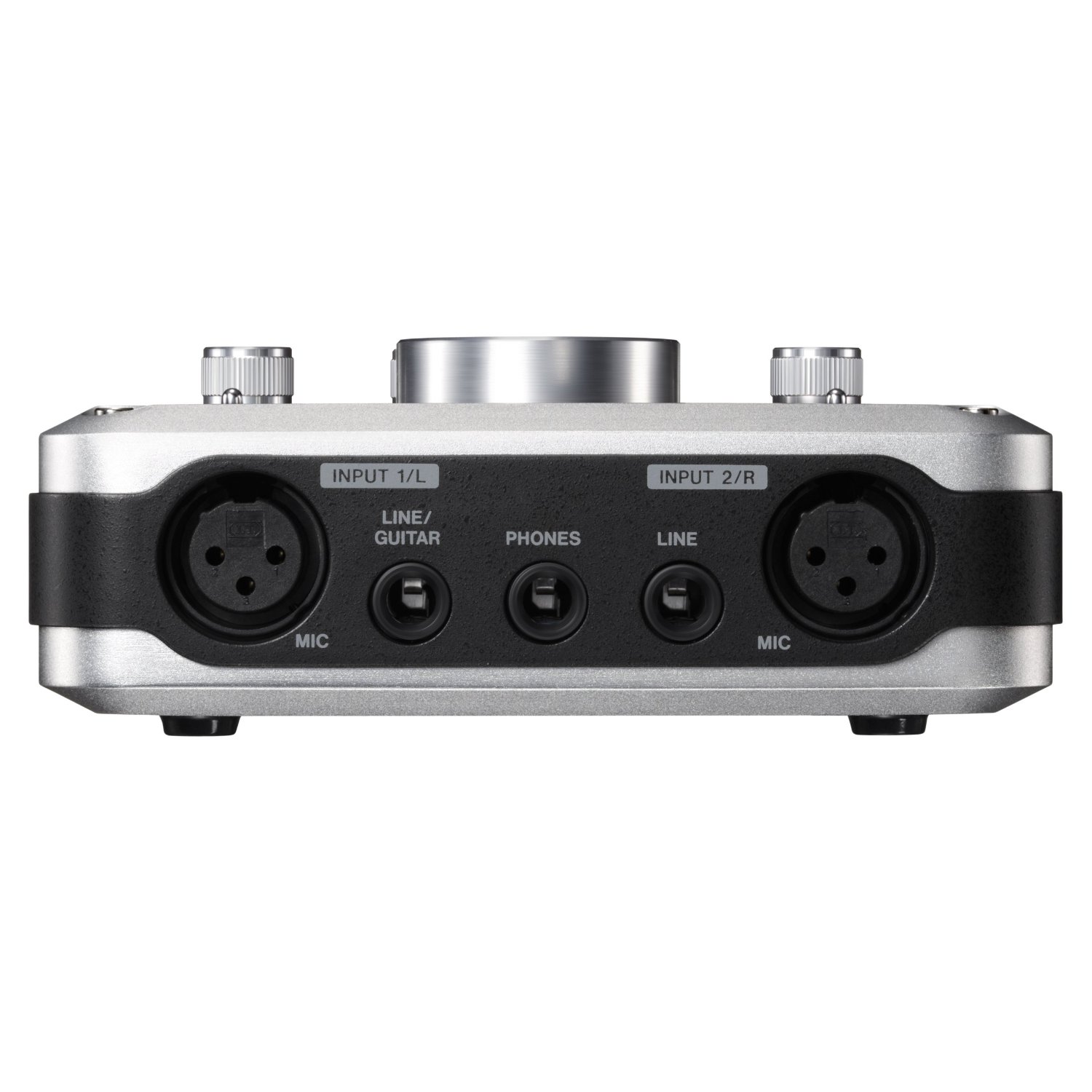

Two XLR/TRS (MIC/LINE) Inputs with Full +48V Phantom Power Supply
The US-322 is designed with two XLR with +48V phantom power and two TRS
inputs. Having both options for condenser mics and line level inputs
ensures you are getting the best possible sound and lowest-noise when
recording. In addition, INPUT-1 can connect any high-impedance equipment
directly, like a guitar.


DSP Mixer Designed for Music Creation and Podcasting

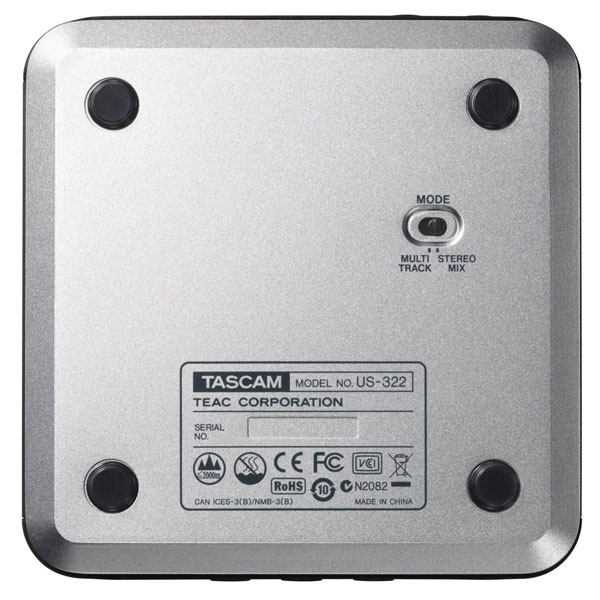

The DSP mixer function provides a multi-track mode and a stereo-mix mode.

Multi-track Mode
The multi-track mode is ideal for music creation. This mode delivers
independent monitor-mixing from a send-level like an inline-console to a
PC. In addition, this mode delivers monaural-monitoring.

Stereo-mix Mode
The stereo-mix mode makes podcast recording or broadcasting convenient
and easy. An output audio signal from any PC can relay that signal back
to the PC again via your DSP mixer. Any BGM from a PC can mix your voice
by microphone then the mixed sound will transfer back to the PC again.


On-Board Effects Supports High-Quality Recording (Send Effects and Insert Effects)
The US-322 is designed with on-board effects such as compressor, 3-band
EQ and Reverb all located on-board the DSP. While recording, you can use
the input effects for any input signal and the reverb effect on any
monitoring signal at the same time. (DSP effects can use on 44.1/48kHz
operating)

Insert Effects
The input effects can be selected from compressor or 3-band EQ. Input
effects can use various recording. For example, while recording vocals
you can boost your high-frequency range with the 3-band EQ. Also, the
compressor effect is very convenient at recording especially for bass
guitar, vocal and drums.

Send Effect
The send effect include just reverb. The reverb effect is necessary
articles at recording. Monitoring sound will get wet-sound by this
reverb effect, but a send-sound to a PC keeps just dry sound.


Dedicated MIXER PANEL Button Recalls The DSP Mixer with One-Click
The US-322 is built with a "MIXER PANEL" button located conveniently on
top. This button provides a one-click recall function for the DSP-mixer.
When pushed a second time the mixer panel will be conveniently hidden.



Features

High-quality HDDAHigh Definition Discrete Architecture) mic pre-amps
Up to 24bit/96kHz recording
Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
Low-latency monitoring via DSP mixer
On-board digital mixer(DSP mixer) delivers two operation modes
On-board digital effects(DSP effects)(DSP effects can use on 44.1/48kHz operating)
Dedicated "MIXER PANEL" button recalls DSP mixer with one-click
Oversized LINE OUT volume knob
Two TRS analog balanced outputs
Two RCA analog unbalanced outputs
18mW+18mW headphone output
Desktop design provides highly stability and usability
Aluminum body provides premium looks and luxurious feel
USB bus-powered for mobile recording



Compact and ready to record, order the US-322 today.

US-322 2x2 USB Audio Interface Specifications:


Supported sampling frequency

44.1/48/88.2/96kHz
Supported bit rate
16/24bit (Internal operation is 24bit)
Analog audio Inputs
MIC IN
(INPUT 1/L, 2/R)
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance
2.2kohms
Nominal input level
(INPUT:MAX) -65dBu
Nominal input level
(INPUT:MIN) -22dBu
Maximum input level
(INPUT:MIN) -6dBu
LINE IN (INPUT 1/L, 2/R)
6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance
15kohms(LINE)/1Mohms(GUITAR)
Nominal input level
(INPUT:MAX) -39dBu(LINE)/-55dBV(GUITAR)
Nominal input level
(INPUT:MIN) +4dBu(LINE)/-12dBV(GUITAR)
Maximum input level
(INPUT:MIN) +20dBu(LINE)/+4dBV(GUITAR)

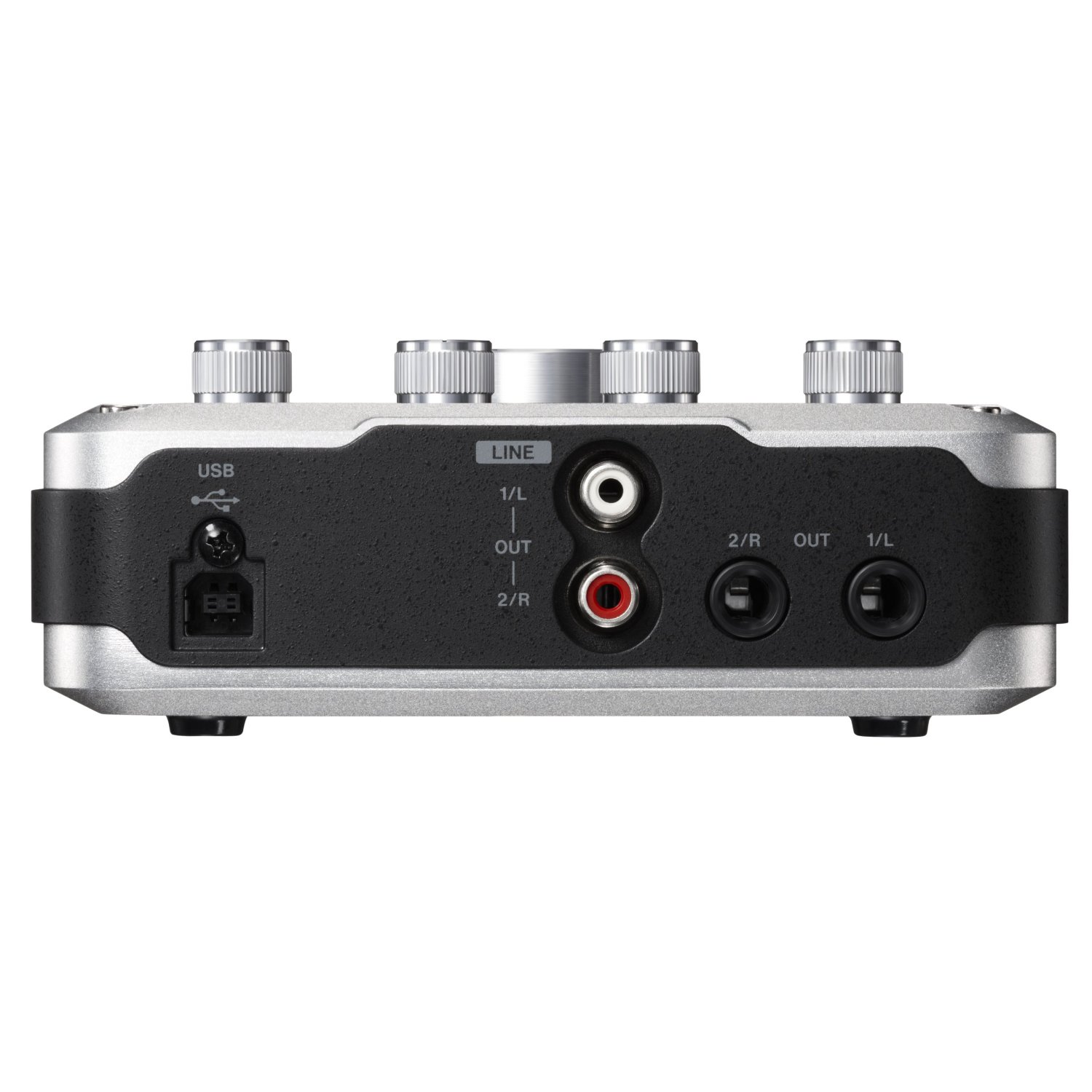

LINE OUT (LINE OUT 1/L, 2/R)
6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance
100ohms
Nominal output level
+4dBu
Maximum output level
+20dBu
LINE OUT (LINE I/O 3-4)
RCA pin-jack
(When set to "OUTPUT" at LINE I/O switch)
Output impedance 200ohms
Nominal output level -10dBV
Maximum output level +6dBV
PHONES

Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more(THD+N 0.1% or less, 32ohms loaded)
USB
Connector USB B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
Power
USB bus powered (5V, Max 500mA)
Power consumption
2.5W
Dimensions
140(W)×42(H)×140(D)mm
Weight
500g
Operating temperature
5-35˚C
Bundle software
Cubase LE6
Accessories
CD-ROM (includes dedicated driver), USB cable (1.5m), DVD-ROM (Cubase LE6),
Insert sheet for Cubase LE, Warranty card
Audio performance

ADC chip set dynamic range 102dB *1
DAC chip set dynamic range 106dB *2
Frequency response
Mic preampr 10Hz to 68kHz, +0.5/-3.0dB
MIC IN to LINE OUT 10Hz to 40kHz, +0.5/-3.0dB
MIC IN to PHONES 10Hz to 30kHz, +0.5/-1.0dB
THD 0.0045% or less *3
S/N ratio 98dB or more *4
EIN -120dBu or less *5
Operating system requirements

Windows
OS Windows XP:32bit SP3 or more, 64bit SP2 or more
Windows 7:32bit, 64bit
Windows 8:32bit, 64bit
DRIVER ASIO2.0, WDM(MME)
Macintosh
OS Mac OS X Snow Leopard(10.6.8), OS X Lion, OS X Mountain Lion
DRIVER Core Audio
