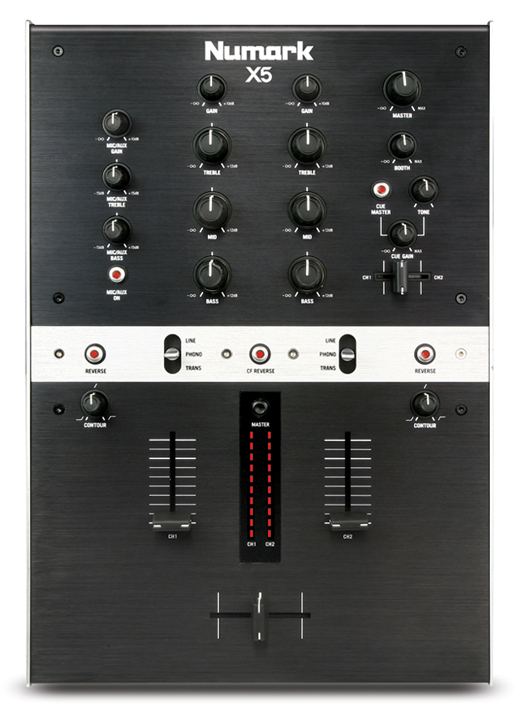

Numark X5 Two-Channel, 24-Bit Digital DJ Mixer

The perfect two-channel mixer for V7.

Numark,
creator of the first 100% digital DJ mixer, continues to develop
digital mixing with X5. This two-channel, 24-bit, high-resolution mixer
contains high-end analog-to-digital and digital-to-analog circuitry and
powerful look-ahead limiters at the master, booth, and headphone outputs
to deliver virtually lossless, clip-proof audio performance.


Borrowing
from the industrial design of the award-winning Numark family of ITCH
controllers – NS7, NSFX, and V7 – X5 perfectly complements V7, the
motorized turntable software controller.


While
X5 is a perfect fit between a pair of V7s, it is also compatible with
all turntables, CD players, and other sources. You will immediately
appreciate X5’s rugged, club-friendly construction, which includes
high-quality knobs, buttons, and faders. X5 employs the same
ultra-long-lifetime CP PRO crossfader as the one in the universally
acclaimed NS7 motorized digital DJ controller.


Performance
DJs will appreciate the fit and finish of X5 along with the mixer’s
professional touches, including crossfader and line-fader slope and
reverse controls, channel Transform triggers, repositionable phono/line
switches, three-band combination EQ/Kills on each channel, and
mini-crossfader cueing control.


High-quality
connections including balanced analog, S/PDIF optical and coaxial
digital outputs ensure optimal transmission of DJs’ performances to
amplification and recording systems.


With a
signal-to-noise ratio greater than 100 dB, less than 0.005% total
harmonic distortion, and frequency response from ultra-wide 10 – 20,000
Hz frequency response, X5 delivers your mix to the PA, recording system,
and your headphones without distortion or coloration. Its high quality
components and rugged build make it the perfect mixer for every scratch
DJ.


FEATURES

Looks, fit, and finish match perfectly with a pair of V7s
Ultra-long lifetime CP PRO crossfader, same as in NS7
24-bit circuitry for superior sound quality
Look-ahead limiters on master, booth, and headphone outputs eliminate clipping
Slope and reverse controls on crossfader and line faders
Each channel offers EQ/Kills, gain, Transform
Repositionable phono/line switches
Dedicated mic input with EQ
Master (1/4" pair, balanced), Booth (RCA, pair), S/PDIF optical and coaxial digital outputs
Mini-crossfader cueing with headphone tone control


INPUTS:

Line: 100kΩ input impedance
Max Input = 4V
Microphone: 5kΩ input impedance unbalanced 80mV rms max input
Phono: 47kΩ input impedance


OUTPUTS:


Balanced Line: 11V rms max
Unbalanced Line: 5.5V rms max
Headphone: 0.5 watt into 47Ω
Distortion: 0.005% typical

SIGNAL TO NOISE RATIOS:

(full mixing path, A-weighted)


Line: Better than 102 dB
Microphone: Better than 85 dB
Phono: Better than 85 dB

FREQUENCY RESPONSE:

Line: 20 Hz- 20k Hz ±0.1 dB
Phono: RIAA accuracy ±0.5 dB

GENERAL:

POWER CONSUMPTION: 12 Watt typical
DIMENSIONS: 10” (W) x 14.5” (H) x 3.5” (D)
WEIGHT: 9.5 lbs, 11.2lbs with transformer
