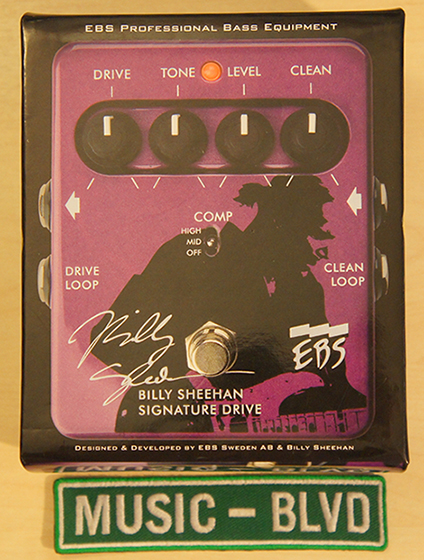

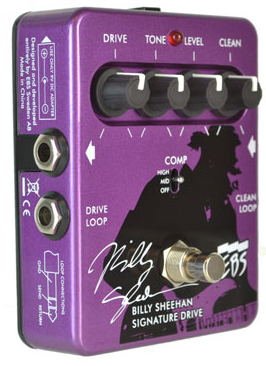

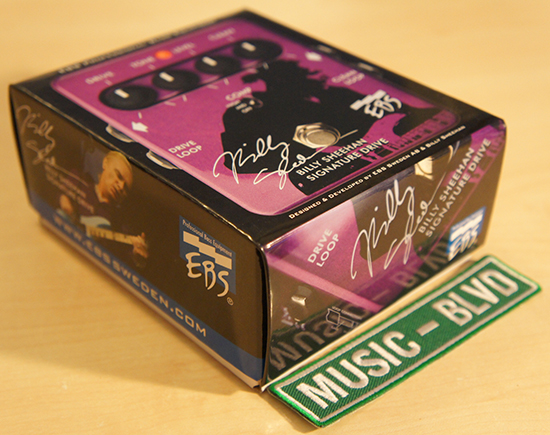

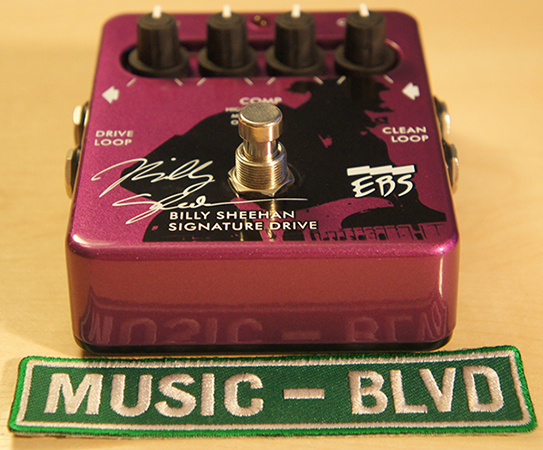

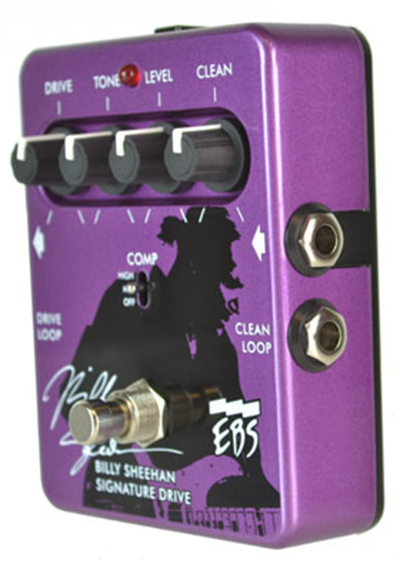

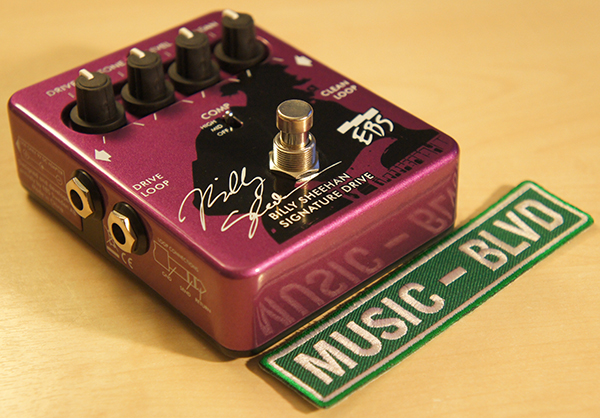

EBS Billy Sheehan Signature Bass Pedal

A pedal developed with Billy Sheehan that has unlimited tonal options.




The Billy Sheehan Signature Drive pedal was
developed by EBS in close co-operation with Billy himself. It is based
on the concept of mixing together a clean signal with a distorted to be
able to preserve low frequencies and find balance between distortion and
definition.

Built-in Compressor
The option to add compression
makes it possible to keep the note differentiation clearly audible even
at heavily distorted sounds. There are three modes for the built-in
compressor; High, Mid and Off. For the Mid setting, there's an
additional trim pot inside to set the level. There's also a trim pot to
set the Threshold for the compressor.

Clean Loop, Drive Loop - Endless possibilities!
The
Billy Sheehan Signature Drive offers unlimited pre-post mix tone
shaping by including a clean loop and a drive loop. It lets the user
insert any other effect they wish within each loop to create your own
signature effect! For example, connect an external EQ to the Drive Loop
and shape the character of the distortion any way you want, or turn off
the built-in compressor if you prefer to use a different type of
compressor and put in the Clean Loop.

Controls
With the new
extended size box from EBS, there are controls for Drive (gain for the
overdrive engine), Tone (sets the frequency scoop for the drive), Level
(sets level for drive channel post Drive Loop and pre final compressor)
and Clean (sets level for the clean channel, post Clean Loop and pre
final compressor).



Features

Drive, Tone, Level and Clean controls.
Three Compressor Modes - High, Mid, Off

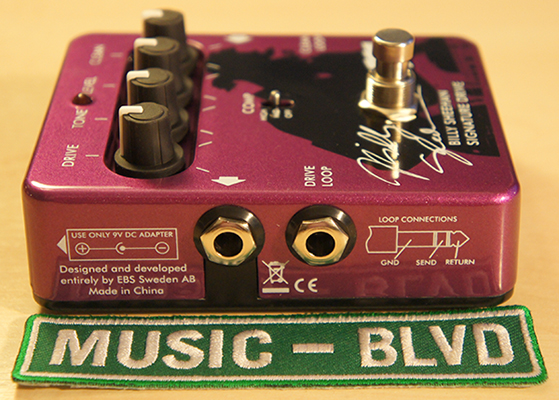

Clean Loop and Drive Loop (connect a Y-cable for send and return).
Type: Analog Effect, Mechanical Switching
9V DC (Battery or Power Supply)



Sound like Billy today. Order now!




Billy Sheehan Signature Bass Pedal Specifications:


Nominal Input Level - 8 dBv
Input Impedance 700 kohms
Gain Range Drive 20 - 40 dB
Tone Filter Range 175 - 4500 Hz
Q 0.6
Nominal Loop Level -8 dB
Output Impedance Loops 2 kohms
Input Impedance Loops
47 kohms
Mix Level Drive Channel +3 dB max
Clean Channel +6 dB max
Compressor Ratio 5:1 (max)
Threshold -25 +6 dB
Attack Time (80%) < 10 ms
Release Time (80%) 100 ms typ
Makeup gain 0, +3, +6 dB
Output Impedance < 100 ohms
Dimensions W x H x D 3.5" x 4.5" x 1.4" (90 x 115 x 35 mm)
Weight 480g (1.07 lb.)
Type Analog Effect, Mechanical Switching
Power Requirements 9 - 12 V DC Regulated, 15 mA max*
