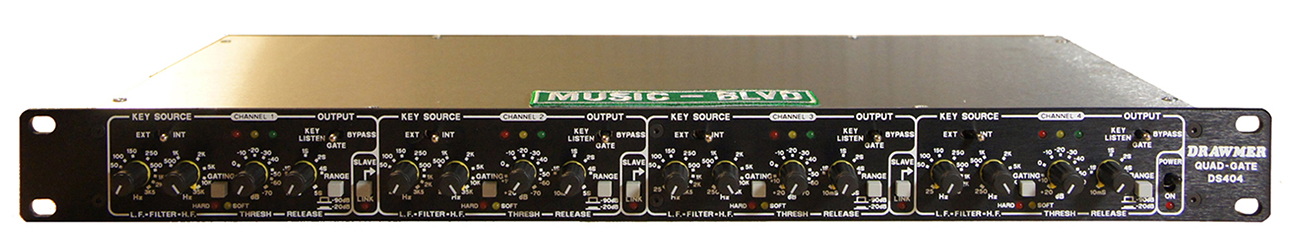

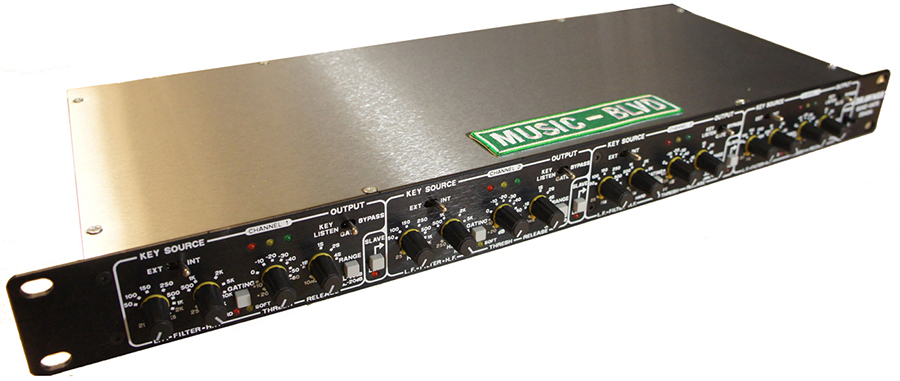

Drawmer DS404 Quad Noise Gate

The DS404 Quad Noise Gate has been designed to the highest specification
to complement the DS201 Dual Noise Gate, acknowledged as the industry
standard gate throughout the world. Recognizing that there are many
general gating applications which require equipment that is simple to
operate and which occupies the minimum of rack space, Drawmer designed
the DS404 Quad Noise Gate utilizing new and unique Program Adaptive
circuitry. This makes the DS404 ideally suited for use over a wide range
of input signals, ranging from drums and other percussive instruments
through to vocals, pianos and even complete mixes. Facilities available
on the DS404 include:

Frequency Sensitive. The provision of variable Low-Pass and High-Pass
Filters allows without compromise frequency selective gating. The unit
can be switched for either Internal or External Key source and the KEY
LISTEN facility enables monitoring of the filter setting.

Hard/Soft Gating. Each channel of the DS404 can be operated as a HARD or
SOFT gate, providing quite different characteristics. Two coloured LEDs
clearly indicate mode status._In the HARD mode the DS404 offers
ultra-fast response time, stable triggering with complete freedom from
chatter around threshold and a specialized release contour which is
ideally suited to drums and other percussive material._In the SOFT mode
the DS404 becomes a versatile Expander capable of handling vocals and
sub mixes. Drawmer's unique 'Programme Adaptive' circuitry is used to
optimise the attack time and ratio as well has having some effect on the
manual release setting . A more gentle release characteristic is
utilized to complement the SOFT gate

Threshold. A fully variable threshold control provides a range from +20dB to -70dB.

Release Control. A fully variable release control is provided with
release times from 10 ms to 5 sec to ensure that essential envelope
control is not sacrificed in exchange for an economy in rack space.

Attenuation Range. The DS404 has switchable attenuation between 90dB and
20dB to allow for applications where a complete mute is not desired.

Chain Linking. Operating the LINK control switches the channel on the
right to SLAVE operation, where its gating mode, threshold and envelope
characteristics are controlled by the MASTER (left) channel. Any
adjacent three channels or two stereo pairs can be linked in this way
for use in any conceivable situation where linking may be required.

LED Displays. Drawmer's familiar tri-colour LED display is once again
utilized as the optimum method for indicating the envelope status for
each channel.

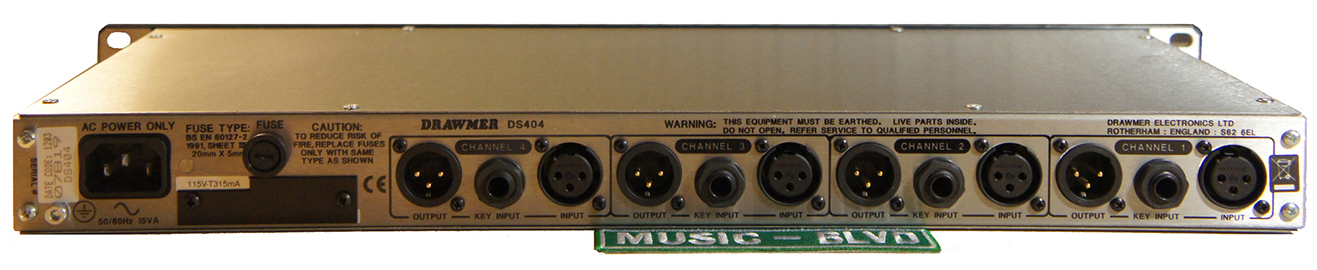

Input/Output. The DS404 is provided with balanced inputs and outputs on XLR connections.






*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
