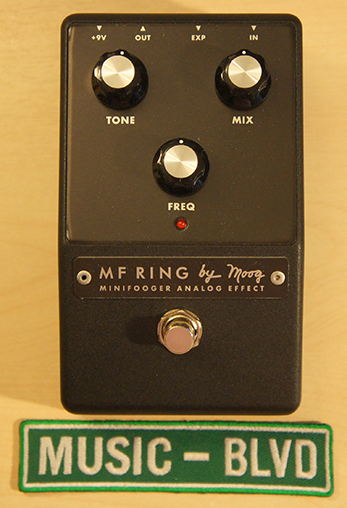

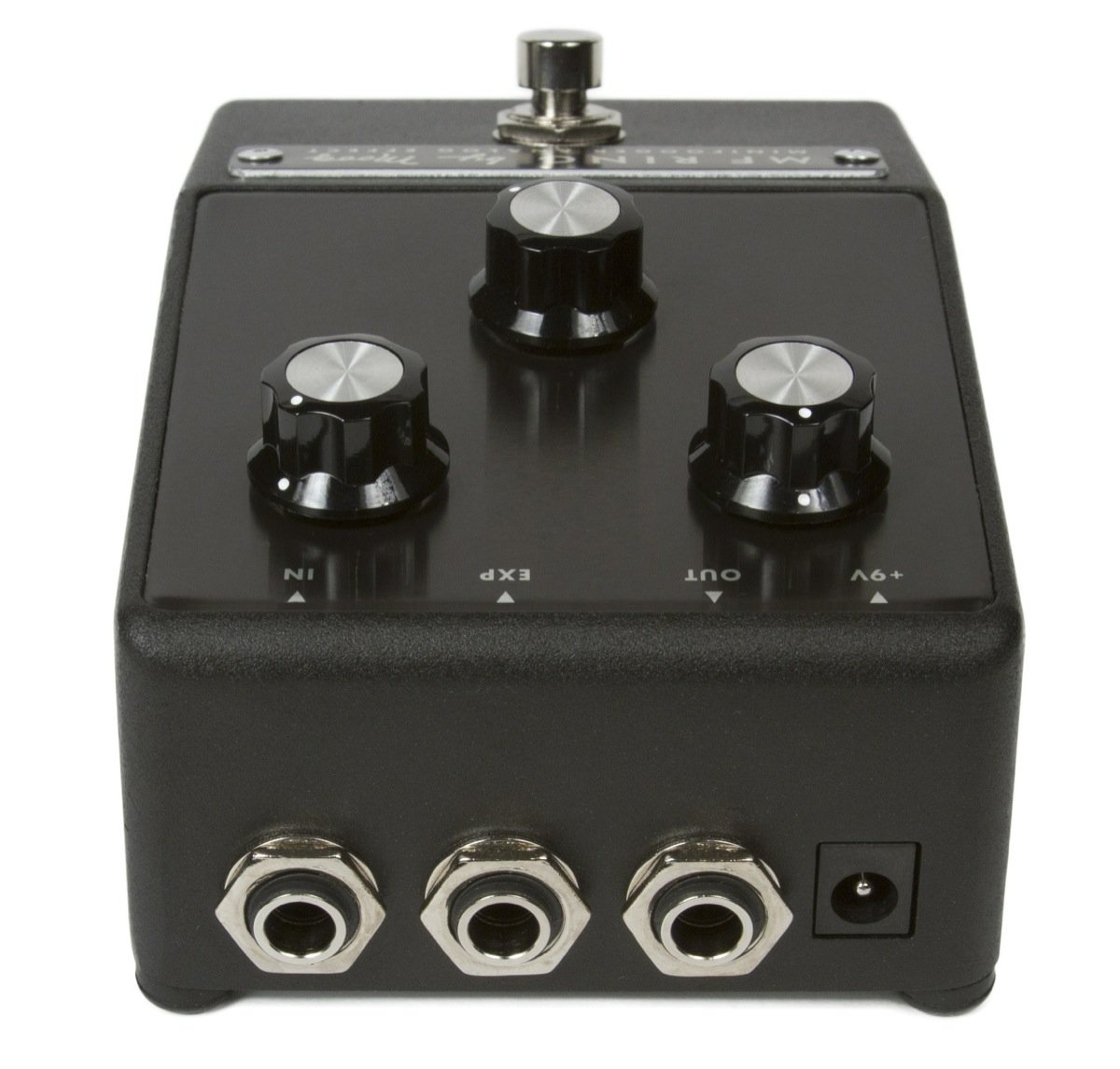

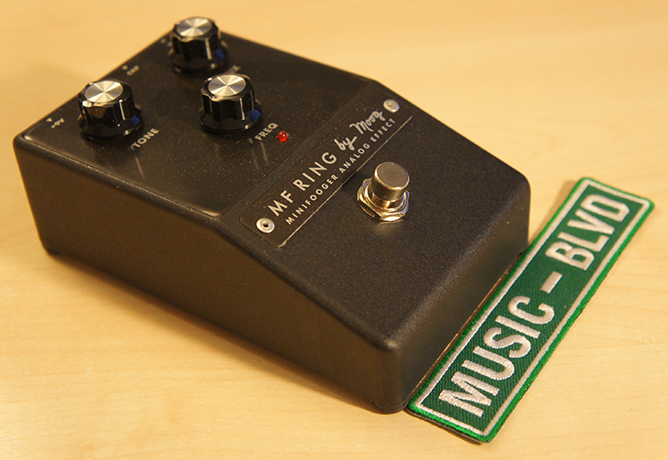

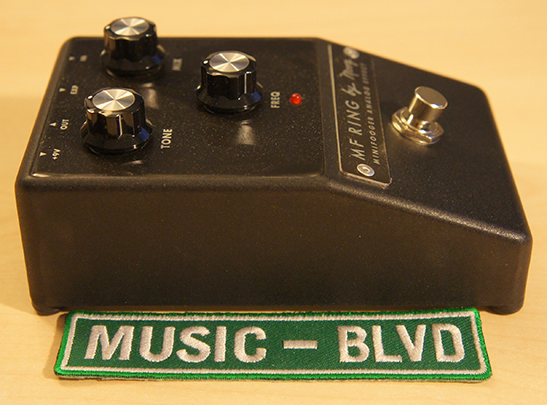

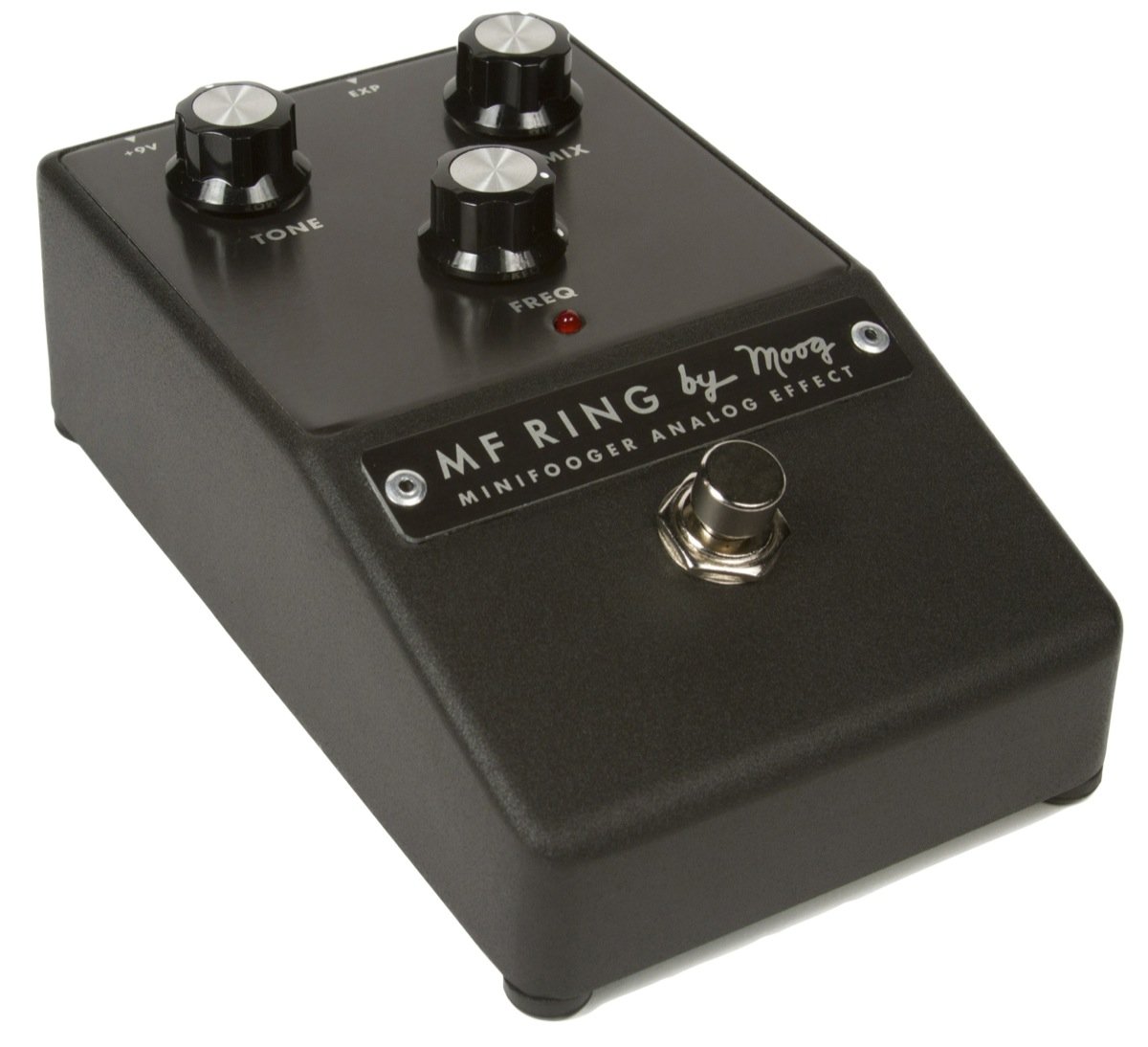

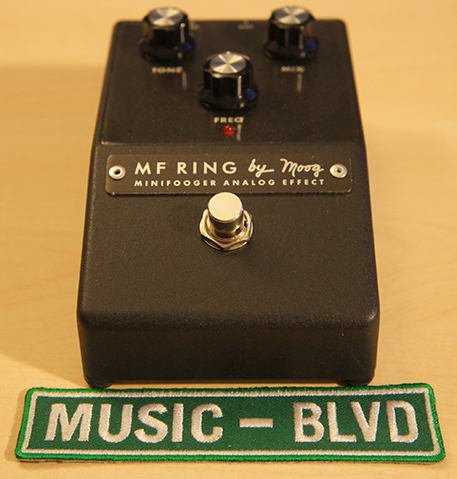

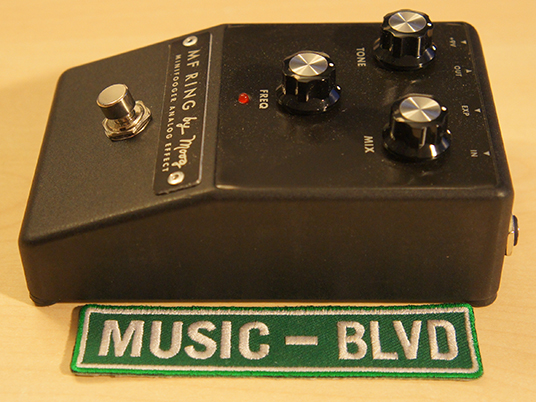

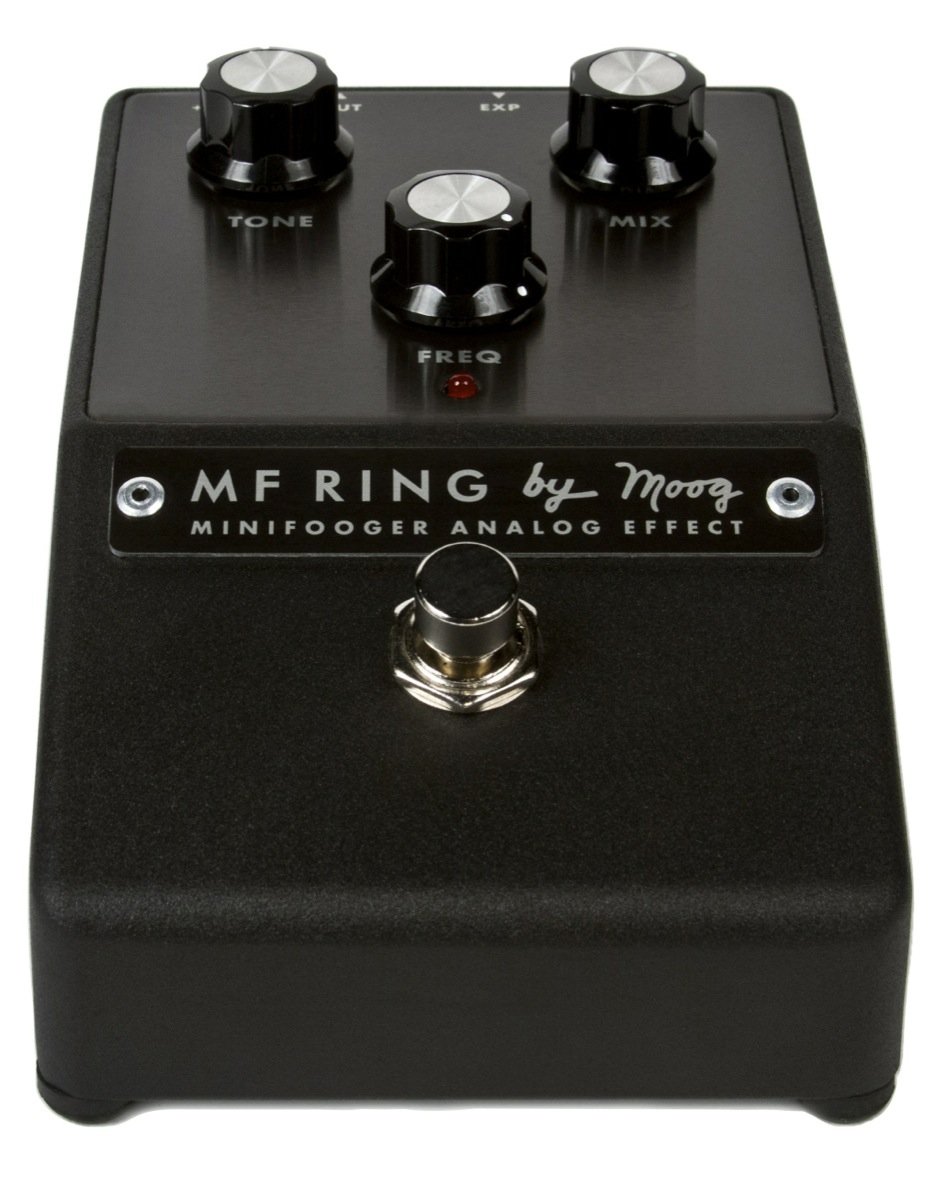

Moog MF Minifooger Ring Effect Pedal

Product Description

The Moog MF Minifooger Ring is an analog
ring modulator that is based on the best selling Ring Mod in the world,
the Moogerfooger MF-102. Its unique tone voicing circuit adds a new
musical dimension to ring modification, making it easy dial in
everything from octaves and choral dissonance to harmonic undertones and
synthesized lead lines. The expression pedal input provides hands-free
control of the Freq control for sound sweeps, pitch shifting effects,
and playing between two scales on the fly. Unlike other ring modulation
pedals, the MF Ring can also be battery powered.


CONTROLS

FREQ
Tunes the frequency of a carrier oscillator to the root note in a scale.
The range of this control has been refined to be extremely musical. At
lower settings chorus and octaves occur on notes within a chosen scale,
while beating and extreme dissonance occur on notes played outside of
that scale. At Mid position the sound is buzzy and tight. This is great
when paired with the MD Drive for octave-fuzz sounds. At the maximum
position the sound is much more synthesized and robotic.

MIX
Sets the amount of input versus modulated signal. A ring modulator
outputs the sum and difference frequencies of your instrument and a
carrier oscillator (FREQ). At lower to medium levels, the MF Ring can be
used to accompany and accentuate notes. As Mix is increased, you will
notice more synthesized and bell-type sounds. At maximum, the input
signal is completely gone and only the sum and difference frequencies
are heard. This is perfect for creating unpredictable synthesized and
electronic sounds.

TONE
A filter circuit only applied to the effected signal. This allows you to
leave in the MF Ring's natural high frequency chime and buzz, or dial
it down for a warmer, more musical character. Because the tracking of
the MF Ring is so accurate, this control is particularly useful for
dialing in sounds that accompany lead lines, bends, and even chords. It
is the perfect way to add unique texture to an idea without it
overtaking the sound of your instrument.

EXPRESSION PEDAL INPUT
This input is assigned to the Freq control. Use it to specify two
independent playing keys or create classic sci-fi swells, bit reduction
effects, and whammy dives. This input is additive and will allow you to
go past the panel settings.


Features:

- True Bypass
- Tone control adds musical flexibility to the sonic capabilities of ring modulation
- Easily go from octaves, beating, and chorus in a scale to electro-insanity
- Easily tune and voice the Freq control to your key of choice
- CAN BE BATTERY POWERED
- Expression pedal input control of Frequency for key changes and sound effects
- Designed to perform with any Guitar, Amp, or Bass guitar configuration

- SIGNAL PATH: 100% Analog
- BYPASS TYPE: True bypass
- POWER: +9VDC
- WEIGHT: 18oz (0.5kg)
- ENCLOSURE: Cast aluminum
- DIMENSIONS: (D x W x H) 5.75 x 3.25 x 2.25: (14.14 x 8.3 x 5.8cm)
- FREQUENCY CONTROL: Oscillator range is 90Hz - 1.5KHz nominal; Max with expression 12KHz
- TONE CONTROL: 165 Hz - 20KHz Lowpass Filter 6dB/Octave (wet signal only)
- EXPRESSION: Controls Freq (Max Input level +5VDC. Response of internal oscillator is not linear above +4V input)
- INPUT IMPEDANCE: 1 MegaOhm
- OUTPUT IMPEDANCE: 200 Ohm

- CURRENT: 12mA Dimensions and Weight in Packaging

Shipping Weight: 1 lbs

Shipping Dimensions:
1 x
1 x
1 in
