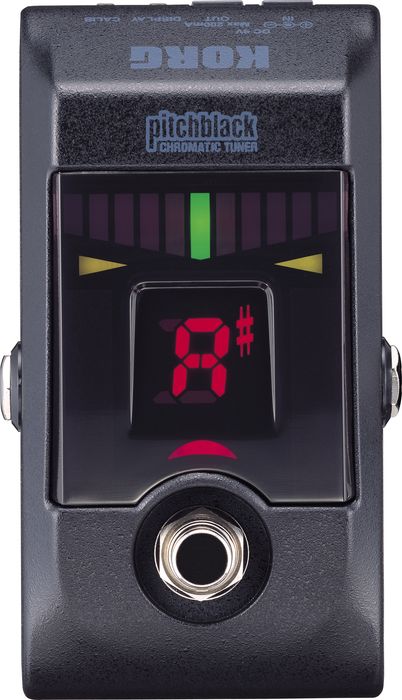

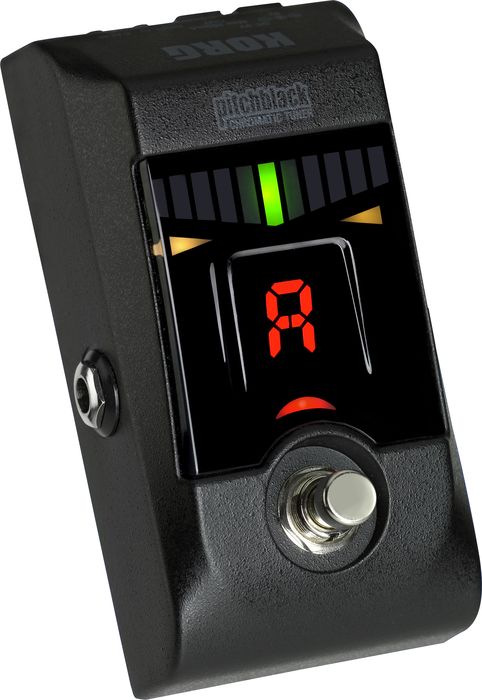

Korg pitchblack Chromatic Pedal Tuner

Big, bright display and legendary Korg tuning accuracy in a compact pedal.




The pitchblack Chromatic Pedal Tuner offers you high precision, advanced
functionality, and sleek style to make it KORG's most advanced
guitar/bass stompbox-style tuner yet. The pitchblack tuner has a tough
aluminum die-cast body that will endure hard use on the road or in the
studio. The large LED meter and note name display with light-emitting
surface is easy to read in any setting from daylight to stage light to
no light. The extremely smooth eleven-segment LED meter allows accurate
visual tuning from any angle. The Pitch Black has a red LED to indicate
on/off status and a tuning range of E0 (20.60 Hz) to C8 (4,186 Hz) with
adjustable calibration between 436--445Hz.

4 display modes.

The pitchblack's LED meter can be switched among 4 display modes including: Meter, Full Strobe, Half Strobe, and Mirror.

1. Meter mode

Similar to using a needle meter, tune your instrument so that the green
LED in the center of the LED display lights and both tuning guide LED's
are lit. The tuning LED's will be to the right of center if your
instrument is sharp, and to the left of the center if your instrument is
flat.

2. Full Strobe mode

Tune your instrument so that the LED meters stop streaming and both
tuning guide LED's are lit. The LED meters will stream from left to
right if your instrument is sharp and from right to left if your
instrument is flat.

3. Half Strobe mode

Tune your instrument so that the LED meters stop streaming and only the
green LED in the center is lit and both tuning guide LED's are lit. The
LED meters will stream to the right of center if your instrument is
sharp, and to the left of center if your instrument is flat. When the
pitch is correct, only the center LED will be lit.

4. Mirror mode

Tune your instrument so that the two LEDs on the left and right sides of
the center LED meet in the middle and both tuning guide LED's are lit.
The pitch lit LEDs will spread farther apart the more your instrument is
out of tune. The left tuning guide will light if your instrument is
flat, and the right tuning guide will light if your instrument is sharp.

100% True Bypass output keeps your tone intact.
The pitchblack mutes the input signal for silent tuning, and when you're
not tuning the input is passed directly to the output jack without
being affected by any circuitry (True Bypass). So even if you connect
the pitchblack between several of your favorite pedals, the signal will
pass without going through the internal buffer amp, ensuring that the
sounds you've created using your effects will not be colored in any way.
The pitchblack is designed to coexist transparently with other effect
pedals.

A perfect fit in your pedal board plus the DC output powers other pedals.

The pitchblack is designed to fit conveniently into your pedal board
system. It provides a DC OUT jack that can supply power to other effect
pedals when the optional AC adaptor is used. By connecting optional DC
cables, you can supply up to 200 mA of power to multiple effect pedals,
simplifying the power connections in your pedal board.



Features

100% True Bypass output keeps your tone intact
Choose from 4 types of display modes: Strobe, Half Strobe, Meter & Mirror
Compact pedal sized guitar/bass tuner that fits in your pedal board
Large bright LED meters clearly show any tuning discrepancy
A broad detection range from E0 (20.60 Hz) to C8 (4186 Hz)
Calibration is adjustable from 436-445Hz
A 9V DC output jack is provided for cascading the power supply to other pedals
Sleek, black and tough aluminum die cast body for superb durability



Four modes ensure the right graphic tuning style for you. Call or click today to order.

pitchblack Chromatic Pedal Tuner Specifications:


Tuning: 12 note equal temperament
Detection range: E0 (20.60 Hz) -- C8 (4186 Hz)
Calibration range: 436-445 Hz (1 Hz steps)
Display modes (auto): Meter, Full Strobe, Half Strobe, Mirror
Input impedance: 1 MΩ (when tuner is on)

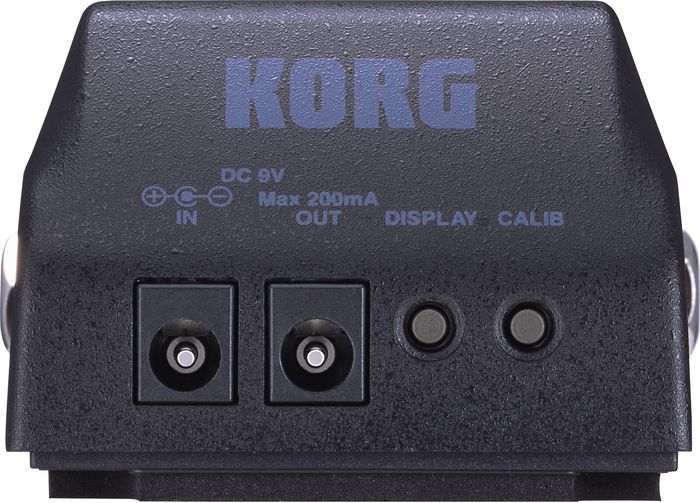

Connectors: INPUT (mono 1/4" jack)
BYPASS (mono 1/4" jack)
DC IN (9V)
DC OUT (9V)
Power supply: (9V battery) or 9V AC adaptor (KA181)
Battery life: approximately 5 hours (A4 continuous input, tuner on, display mode: Meter, using a 9 volt battery)
Dimensions: 2.67"W x 4.72"H x 1.85"D (including feet)
Weight: 0.64 lb. (including battery)
Included items: one zinc-carbon battery for verifying operation
* Specifications and appearance are subject to change without notice for improvement.
