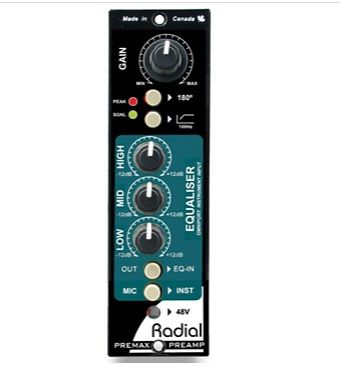

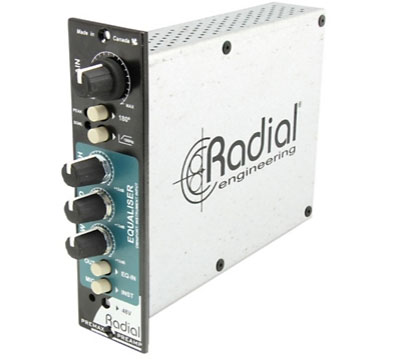

Radial Engineering PreMax 500 Series Channel Strip

500 Series channel strip with mic preamp, 3-band EQ and instrument input.




The PreMax is an all-in-one channel strip that
combines a low noise mic preamplifier with a state-of-the-art 3 band
equalizer to deliver exceptionally clean results each and every time it
is used.

The design begins with a high performance Op-Amp coupled
with Radial Engineering's unique Accustate gain control that
simultaneously sets the input sensitivity and signal gain to deliver
outstanding signal-to-noise at all levels. Visual monitoring is provided
with LEDs for signal and overload. The preamp then feeds a traditional 3
band EQ for tone shaping. This musical sounding EQ lets you gently
boost the top end for more clarity, add warmth to the bottom end, or cut
back the mids on an overly aggressive instrument. A front panel switch
lets you bypass the EQ and compare the pre-post effect. This is
augmented with a high-pass filter to eliminate low-end resonance that
can cause a track to sound muddy or lack detail. A 180° polarity reverse
works double duty to either help align a stereo mic setup or enable the
PreMax to be interfaced with older vintage gear that may not follow the
AES Pin-2 hot convention. For safety, the 48V phantom power switch is
recessed to prevent accidental turn-on which could damage tweeters or
vintage ribbon microphones. When used with a Radial Workhorse power
rack, the Omniport jack is configured as an instrument input and
activated using a convenient front panel switch. When the Omniport is
not connected, the switch acts like a microphone mute.

Designed
to deliver quick, dependable results, the PreMax's integrated design
eliminates the concern of matching levels between modules. You simply
plug in, set the gain, tone shape and start recording. This makes the
PreMax the perfect channel strip module for project studios, post
production, broadcast and live recording.




Features

Combination preamp and 3 band equalizer
Accustate gain control for low noise
High-pass filter eliminates excessive resonance
Dedicated instrument input for direct recording




Mic preamp and EQ in one module, add the PreMax 500 to your chassis today.
