Radial Engineering JX62 Guitar Switcher

Tour-ready 6-guitar Switcher

The

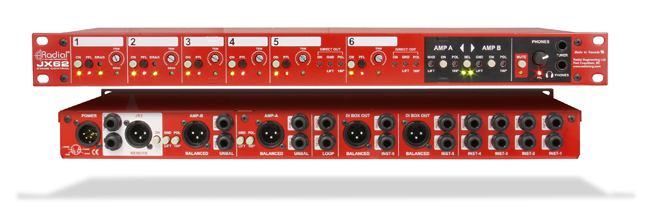

Radial JX62 is a rackmount six-input guitar switcher with two built-in
DI boxes for acoustics and bass, along with an amp switcher. The JX62 is
packed with sophisticated features aimed at touring pros, including
inputs with recessed trims, drag controls for optimal guitar pickup
load, a tuner output, and transparent Class A topology. Gigging
guitarists at Sweetwater immediately recognized the JX62 as a pro-level
tool for managing multiple guitars on stage. If you want maximum
flexibility from your multi-guitar rig, the Radial JX62 is a smart
solution.

Radial JX62 6-input Guitar Switcher at a Glance:

Six guitar inputs with precision level adjustment
Drag control lets you fine-tune your tone
Based on tour-tested Radial technology

Six guitar inputs with precision level adjustment

The
Radial JX62 gives you six guitar input channels, each with a 1/4" input
and a thru connection to feed its own amp or dedicated direct box. A
simple on switch activates the channel and a recessed set 'n' forget
trim control lets you or your guitar tech set all the levels uniformly
should output need adjustment. All channels can be used at once.

Drag control lets you fine-tune your tone

You'll
be able to get optimum tone from any guitar through the Radial JX62, by
allowing you to fine-tune the load put on your pickups. The trims on
inputs 1 and 2 double as drag controls to adjust the load when using a
wired connection to a magnetic pickup. If your tone sounds dull or
lifeless, simply adjust the drag control until you've regained the
clarity, punch, and power you expect.


Based on tour-tested Radial technology


The
JX62 features the same circuit topology found in the Radial JD7, used
by guitar greats Carlos Santana, Neil Schon, Steve Vai, and John
Petrucci. Custom transformers and a 100% discrete signal path maintain
your guitar's character while the JX62 enhances the flexibility of your
guitar or bass rig. And because it's built tough from 14-gauge steel and
finished in baked enamel, the Radial JX62 is ready for your next tour!

Radial JX62 6-input Guitar Switcher Features:

Rackmount guitar switcher with six inputs


Two DI outputs for sending signal directly to the sound system or recorder




A and B amplifier output sections, each with two unbalanced outputs and a balanced output




Custom Jensen transformers and a 100% discrete signal path for maximum sonic clarity




Easy way to manage multiple guitars and amps in your stage rig




Drag controls let you fine-tune the load on your pickups for optimum tone




Master your guitar rig with the Radial JX62!



Tech Specs



Type
Guitar Selector


Channels
6


Inputs
6 x 1/4" (Instrument), 1 x 1/4" (Tuner), 1 x 1/4" (Loop Recv)


Outputs
2 x XLR (DI Box Out), 4 x 1/4" (Amp Out, Unbalanced), 2 x XLR (Amp Out, Balanced), 6 x 1/4" (Thru), 1 x 1/4" (Headphones)
