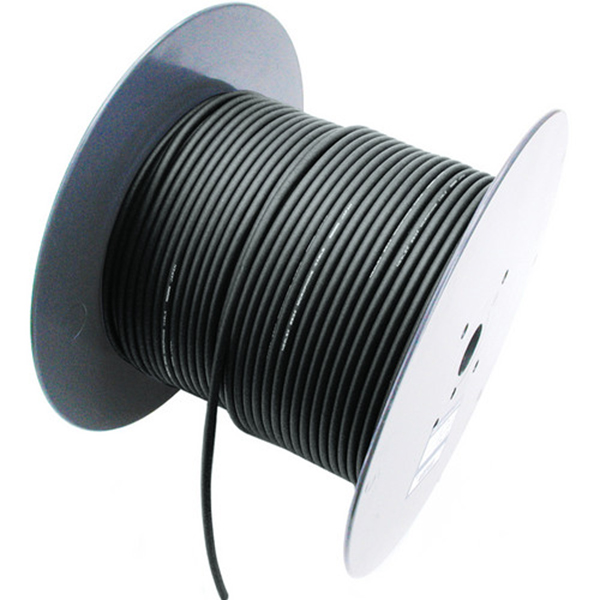

Mogami W2697 Miniature Microphone Cable (Black, 164'/50 m)

The�Mogami W2697 Miniature Microphone Cable (Black, 164'/50 m)�offers flexibility when used with lavalier microphones and other applications. This cable is constructed with served (spiral) shield and offers excellent mechanical strength (tensile strength and long flex life).





Conductor
Quantity: 2
Type: 16/0.08 A (T1000D1)
Size: 0.08 mm² (28 AWG)


Insulation
Overall Diameter: 0.03" (0.85 mm)
Material: PVC
Resistance: 100,000 MΩ × m (minimum) at 125 VDC, 68°F (20°C)


Shield
Served Shield: Approximately 60/0.8 A


Jacket
Overall Diameter: 0.1" (2.5 mm)
Material: Flexible PVC


DC Resistance
At 68°F (20°C)
Inner Conductor: 0.070Ω/ft (0.23Ω/m)
Shield: 0.020Ω/ft (0.065Ω/m)


Capacitance
At 1 KHz, 68°F (20°C)
K0: 92 pF/ft (300 pF/m)
K1: 17 pF/ft (57 pF/m)


Inductance
0.24 µH/Ft (0.8 µH/m) (between conductors at 1 kHz 68°F/20°C)


Noise
Electrostatic Noise: 50 mV (maximum)
Electromagnetic Noise: 0.15 mV (maximum)


Microphonics
Up to 300 mV (at 50 kW load)


Voltage Breakdown
Must withstand at 500 VDC / 15 sec


Flex Life
49,000 cycles


Tensile Strength
294N


Emigration
Non-emigrant to ABS


Temperature
-4 to 158°F (-20 to 70°C)


Roll
Length: 164' (50 m)
Weight: 0.99 lb (0.45 kg)




�
