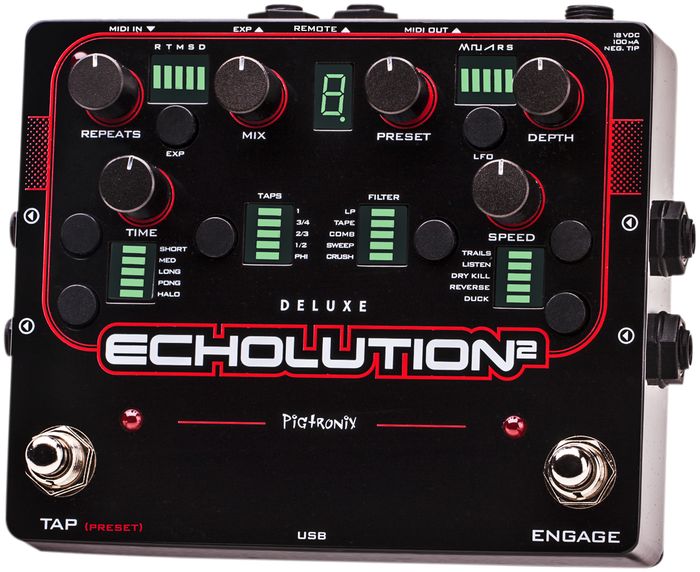

Pigtronix Echolution 2 Deluxe Guitar Effects Pedal

A deluxe in-depth echo pedal that marries analog tone shaping and DSP technology.




Pigtronix Echolution 2 Deluxe is a programmable
multi-tap delay with unprecedented flexibility and unlimited sound
design potential. Every feature and function on the Echolution 2 can be
run simultaneously, in any combination, putting a vast array of sounds
at your fingertips. All 60 presets can be manipulated in real time via
the front panel then saved and recalled instantly. A free PC/MAC
application for the Echolution 2 allows even deeper real time editing
and facilitates archiving as well as online sharing of presets via USB.

Analog i/o
Echolution
2 Deluxe features stereo inputs and outputs, sporting an all analog dry
signal path along with extensive analog tone shaping and filtering
before and after the 24-bit, variable-clock digital delay line. Rather
than try to mimic the sound of analog delays, the Echolution 2 uses real
analog filters and non-linear saturation stages to achieve its
signature sound with a smaller footprint, higher fidelity and far
greater functionality than its predecessors.

Delay Line
Available
delay time goes from 10ms up to 12 seconds instantly settable via knob,
tap tempo or MIDI. Changing the delay time manually results in the
smooth pitch change of the analog delay units with a unique twist to
allow octave up and down jumping. The delay line can also be turned off,
to allow for the advanced modulation, pitch shifting and filter
capabilities to be used as stand-alone effects.

Multi-Taps
The
multi-tap capabilities of the Echolution 2 allow for the use of one or
two discreet delays which can be assigned to musical subdivisions of the
master delay time. Multi-tap selections include 1, 3/4, 2/3, 1/2, and
PHI (the golden ratio). One or any combination of two taps can be
selected, allowing for instant access to all of the most crucial musical
echo patterns as well as a wide range of unconventional polyrhythms.

LFO Modulation
The
modulation section of the Echolution 2 features true sample rate
modulation where both the read and write heads of the delay line are
affected by one of four different LFO waveforms (Sine, Square, Saw or
Sample and Hold). Each of these LFO waveforms can also be quantized with
a STEP mode and will run freely or sync to either tap tempo and MIDI
with a variable speed ratio from 1:8 to 8:1.

Filters
The
Echolution 2 sports four all new filter modes (Low Pass, Tape, Comb and
Sweep). Each of the first three modes can be combined with the SWEEP
filter which is modulated by the LFO as described above. Any of these
filter settings can then be run through a unique Pigtronix BIT CRUSHER
destruction filter within the delay line as well.

Expression / Envelope
Every
knob on the Echolution 2 can be mapped to the expression pedal. Using
the included software, multiple functions can be mapped to expression
with adjustable range for each parameter. Additionally, an envelope
follower within the pedal can also be mapped to any parameter, with user
definable sensitivity and release time for each function.

The Kitchen Sink
Advanced
features such as Reverse, Ducking, Trails, Listen and Ping Pong modes
are augmented by a unique Halo Shimmer function which causes the echoes
to rise in octaves on each repeat. The externally triggered Freeze
function allows you to loop the content of the delay line and an all new
footswitch activated Jump function sends your echoes cascading up in
octaves when desired. The TRS remote switch accessory pedal for the
Echolution 2 provides Jump and Freeze functions as well as instant
access to four favorite presets in each bank.

Presets
Echolution
2 supports up to 60 custom presets contained in 6 banks of 10, all of
which can be edited in real time via the front panel and saved to the
machine. Hands free Preset selection is accomplished by holding down the
onboard TAP switch, using an external remote footswitch or via MIDI
preset change command. The included PC/MAC application allows even
deeper real time editing as well as the ability to import artist presets
and share your own custom presets online.

MIDI
MIDI IN
provides instant preset change, Tap Tempo and LFO synchronization with
an external source as well as remote control over every function of the
Echolution 2. MIDI OUT allows for tap tempo control over the Pigtronix
Infinity Looper and other MIDI capable devices. The USB port on the
Echolution 2 provides connectivity to MAC or PC computers, allowing you
to run the free Echolution 2 application for preset management and
real-time tweaking of advanced parameters.




Features

10ms – 12sec delay time
True Stereo i/o
15 multi tap patterns
Tap Tempo or Manual Control
8 Modulation Waveforms
8 Filter modes
LFO Sync to Tap and MIDI
Bit Crusher Destruction
Reverse Delay
Ducking
Expression pedal control of all parameters
Envelope control of all parameters
Ping Pong
Octave Jump Delay
Halo “Shimmer” Effect
Freeze Effect
Delay Line Bypass
Dry Kill
Trails / Listen
Remote Preset Selection
Complete MIDI control
MIDI out
60 presets
USB connectivity




These knobs need turning. Order today!
