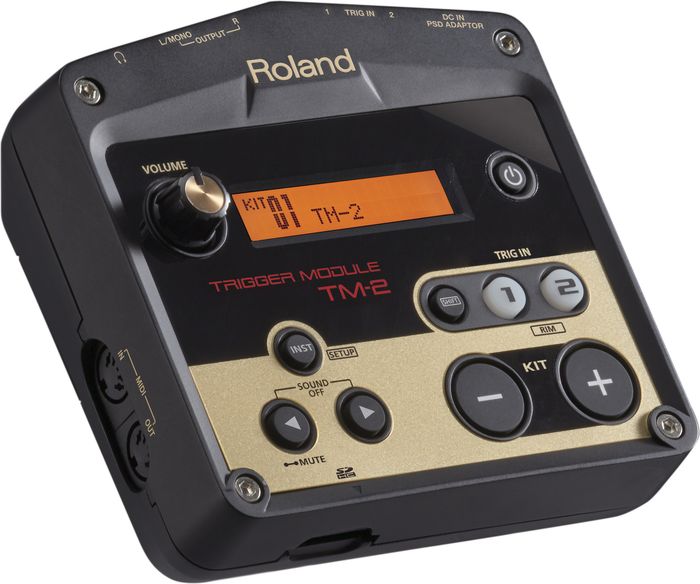

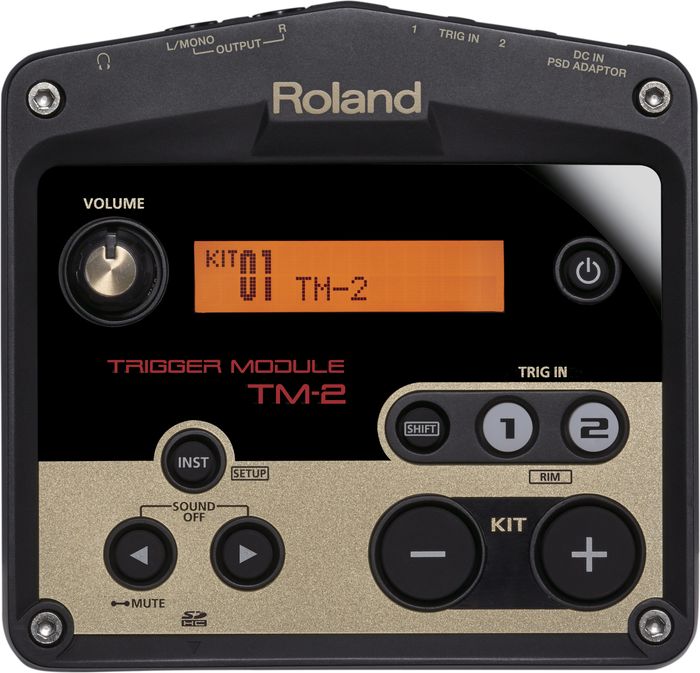

Roland TM-2 Drum Trigger Module

The easiest way to bring hybrid versatility to your acoustic drums.

Battery powered and small in size, the TM-2
Trigger Module provides a simple solution for enhancing acoustic drums
with the creative versatility of electronic percussion. Two trigger
inputs support a wide variety of pads and drum triggers from Roland,
while the ready-to-play pro sounds are optimized for augmenting live
acoustic drums and extending the percussion capabilities of any drum
set. Studio-quality multi-effects are on tap to process your kits, and
you can even trigger your own custom WAV sounds, loops, and backing
tracks via an SDHC card. By combining the TM-2 with products such as
Roland’s BT-1 Bar Trigger Pad, KT-10 Kick Trigger Pedal, or RT-series
acoustic drum triggers, it’s never been easier or more affordable to
create a powerful hybrid drum kit that blends acoustic and electronic
elements together.




Features

Compact trigger module for drummers looking to incorporate a hybrid setup
Over 100 ready-to-play acoustic kits, percussion instruments and sounds
SDHC card slot lets users trigger their own WAV sounds stored on
SDHC media, from one-shot samples and loop phrases to complete backing
tracks
Two trigger inputs that support both single- and dual-trigger pads
Process kits with powerful effects such as reverb, flanger, delay, and more
Compatible with Roland RT-series acoustic drum triggers and Roland
percussion pads, including the BT-1 Bar Trigger Pad, KT-10 Kick Trigger
Pedal, V-Pads, and V-Cymbals
Powered by batteries or included AC adapter; up to four hours on four AA batteries
Included mounting plate enables attachment to hi-hat stand or drum rack with a standard multi-clamp
MIDI I/O for triggering sounds in external sound modules, capturing
MIDI data in music software, and playing the TM-2 from other devices
Simple and intuitive user interface for creating and selecting kits

TM-2 Drum Trigger Module Specifications:

Kits: 99
Internal Instruments: 100+
Number of User Instruments: Maximum 90,300
File Format: WAV (44.1 kHz, 16 bits, Stereo/Mono)
Storage Media: SD/SDHC Memory Card (Max. 32 GB)
Multi-Effects: 1 system, 11 types
Display: 16 characters, 2 lines (backlit LCD)
Connectors:
OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
TRIG IN jack x 2: 1/4-inch TRS phone type

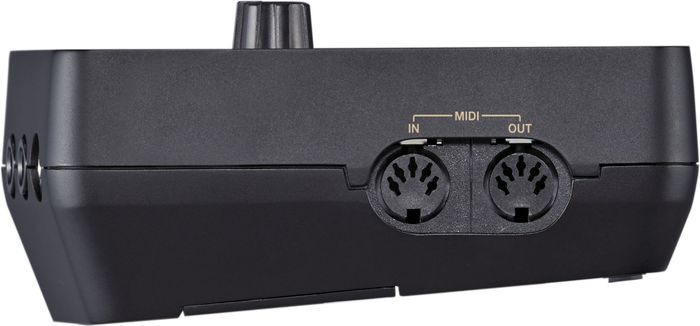

MIDI (IN, OUT) connectors
DC IN jack
Power Supply: AC adaptor
Alkaline battery: (AA, LR6) x 4
Rechargeable Ni-MH battery (AA, HR6) x 4
Current Draw: 400 mA
Expected battery life: Approx. 4.5 hours
Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours (When using batteries having a capacity of 2,000 mAh.)
* The time may vary according to usage conditions, batteries used, and type of SD memory card used.
Accessories: Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor
Mounting plate: Wing bolt (M5 x 10) x 2
Options (sold separately)
Acoustic Drum Trigger: RT series
Pads: PD series, PDX series, BT-1
Kicks: KD series, KT-10
Cymbals: CY series
All Purpose Clump: APC-33
Pad Stand: PDS-10
Personal Drum Monitor: PM-10
SIZE AND WEIGHT
Width: 5-6/16" (135mm)
Depth: 5-1/8" (130mm)
Height: 2-6/16" (59mm)
Weight: 13 oz. (360g)
