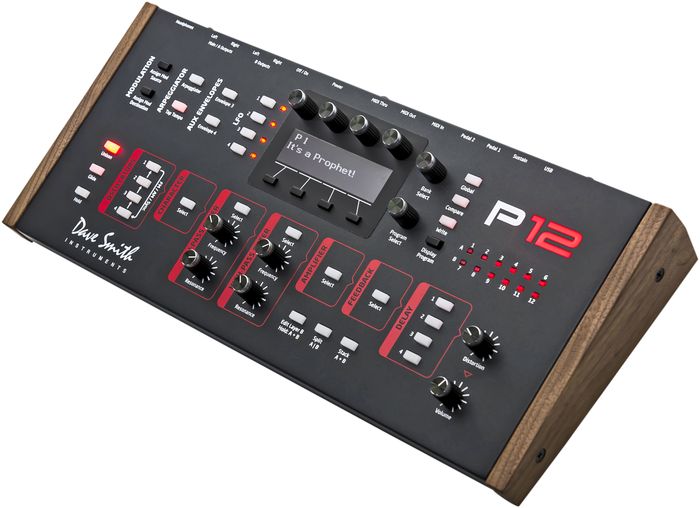

Dave Smith Instruments Prophet 12 Module

All the power of the Prophet 12 keyboard, scaled down into a desktop module.




Don't let its small size fool you. The Prophet 12
Module boasts the same power and sound as the Prophet 12 Keyboard. Each
of the Prophet's twelve voices is composed of a brand new hybrid
digital/analog architecture that sounds different than any other DSI
line of synths, yet retains the true Prophet vibe. With a humongous
twelve voice polyphony, sophisticated architecture, and sleek design,
the Prophet 12 is ready to handle any sound in any setting.

A voice as big as the rest
The
Prophet 12's brand new hybrid voice has a digital front end followed by
an all analog signal path output. Each voice has five high resolution
digital oscillators, a digital character effects section, a resonant
Curtis low-pass filter, a high-pass filter, a tune-able feedback
circuit, a four-tap delay line with feedback per line, four loopable
five-stage envelope generators, four syncable LFOs with slew and phase
offset, a sophisticated arpeggiator, and a sixteen slot modulation
matrix with 26 mod sources and 97 modulation destinations. The Prophet
12 Module is packed with a plethora of sonic potential and power!

Frequency
and amplitude modulate the oscillators with incredible accuracy. Freely
assign oscillators in whatever operator and modulator configurations
you choose. You can even assign each of the oscillators to modulate
LFOs, envelopes, and filters.

All about control
The
Prophet 12 Module's streamlined interface invites quick and easy
control of every parameter on the synth. Each synth section can be
selected at the press of a button with every parameter editable from the
crisp OLED display. Easily create modulation assignments using the
Assign Mod buttons. Dedicated Low and High Pass Filter potentiometers
provide quick and smooth control of the filters.

The Prophet 12
Module has a rugged steel enclosure and is equally at home on your desk,
in your rack, or on stage! An extensive MIDI implementation covers
every available parameter on the synth and you can easily pair it with
your favorite MIDI controller or DAW.




Features

Desktop or rackmount Prophet 12 sound module
Hybrid voice with digital front end followed by an all analog signal path output
Five DSP-based oscillators per voice
Five high-quality digital effects including Girth, Air, Hack, Decimate and Drive
Quick and easy control of every synth parameter
Famed Curtis 2- or 4-pole resonant analog low-pass filter
Programmable arpeggiator with up, down, up+down, random, assign modes
396 user and 396 factory programs




Already have a keyboard? Then add this rackmounted Prophet to your studio today!








Prophet 12 Module Specifications:


Oscillators
Five DSP-based oscillators per voice (including one sine wave sub oscillator)
Four classic wave shapes (saw, square, triangle, sine) per oscillator
Twelve selectable complex shapes per oscillator
Three noise types per oscillator: white, pink, violet
Analog VCAs
Shape modulation
Oscillator cross modulation: frequency modulation (FM) and amplitude modulation (AM)
Hard sync on each of the four oscillators
Character Effects
Five high-quality digital effects. Thicken the signal and add harmonics or completely destroy the signal pre-filter.
Girth and Air are high and low shelf equalizers with harmonic excitement. Useful for thickening and/or adding air to the signal.
Hack
and Decimate are sample and bit rate reduction algorithms which can add
subtle grit or completely destroy the signal. It's harsh yet musical!
Drive is a soft saturator for adding soft distortion and harmonic content to the signal
Filters
Famed Curtis 2- or 4-pole resonant analog low-pass filter (self oscillates in 4-pole mode) per voice
2-pole resonant analog high-pass filter per voice
Feedback and Delay
Tuned feedback
Four-tap syncable multi delay with feedback and amount per delay per voice
Envelopes
Four Delay + ADSR envelopes (LPF, VCA , and two Auxiliary envelopes)
Auxiliary envelopes 3 and 4 freely assignable to multiple modulation destinations
All envelopes can repeat/loop
LFOs
Four syncable LFO's with phase offset and slew per LFO
Modulation
16 x 2 modulation matrix with 26 mod sources and 97 mod destinations
Modulation assignment buttons enable quick and easy modulation routing
Arpeggiator
Sophisticated programmable arpeggiator with up, down, up+down, random, assign modes
Re-latching arpeggiator
Programmable Distortion
Independent programmable stereo analog distortion per layer.
Controls
12 knobs and 34 buttons enable deep and comprehensive editing with little to no menu diving.
Crisp OLED display is easily visible in low light situations and from many angles.
Memory
396 user and 396 factory programs
Direct program access using numeric keypad and dedicated User, Factory, and Bank buttons
Playlist
mode for generating easily accessible setlists of your favorite
programs. Create four play lists with up to forty programs each!
In/Out
1 MIDI In, 1 MIDI out, and 1 MIDI Thru port
USB port for bidirectional MIDI communication
1 Sustain/footswitch input
2 expression pedal inputs
Main stereo output (2 x 1/4" phone jack)
Layer B stereo output (2 x 1/4" phone jack)
Headphone out (stereo 1/4" phone jack)
Power
External Power supply
Operates worldwide on voltages between 100-240v, 50-60Hz
Physical Specs
Oiled walnut wood end panels
16.5" L x 6.8" W x 2.85" H (41.9 cm L x 17.3 cm W x 7.2 cm H)
4 lbs. 14 oz. (2.21 kg)
