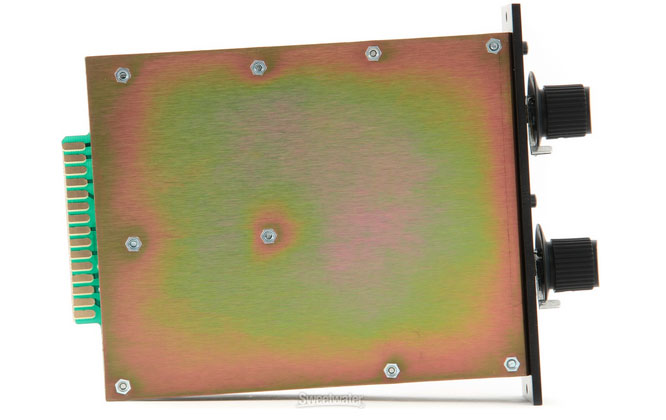

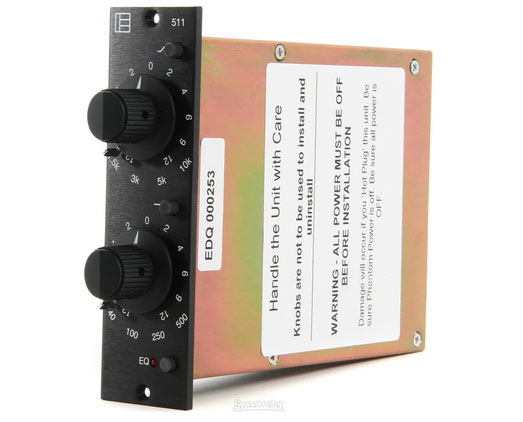

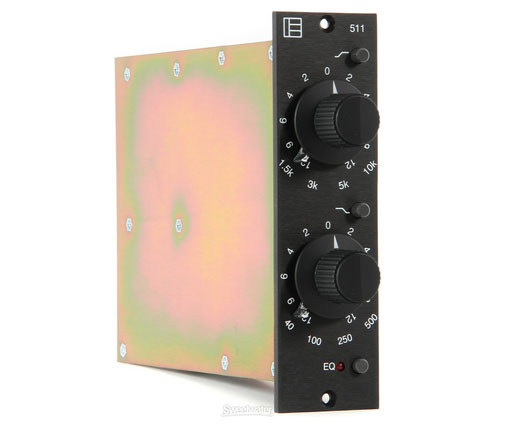

Electrodyne 511

Electrodyne Is Back!
The Electrodyne 511 500 Series EQ fortifies your rack with
great-sounding "Golden Era" technology. Electrodyne consoles juiced some
of the hottest hits of the late '60s and early '70s at top studios like
Capitol, Warners, Stax, Decca, and Motown. The 511 is a 2-band
discrete-transistor reciprocal-active-inductor equalizer with a smooth,
punchy sound that holds its own against other classic American and
British console EQs. The custom inductors and output transformer are
built by Electrodyne's original manufacturer to exacting tolerances,
delivering outstanding performance and channel-to-channel repeatability.
The Electrodyne 511 - you gotta hear this!





Electrodyne 511 500 Series EQ Features at a Glance:

2-band discrete-transistor reciprocal-active-inductor equalizer
Smooth, punchy sound that holds it own against other classic British and American console EQs
Custom inductors and output transformer are built by Electrodyne's original manufacturer
Output impedance: 150 ohms
+/-12 db gain range: Equalize or Attenuate
Four frequencies selectable per band - LF: 40, 100, 250, 500hz; HF: 1.5k, 3k, 5k, 10k
Peak/Shelf function on each band. Shelving at all frequencies, Peaking at 250, 500, 1.5k, 3k and 5k
Distortion: 0.03%typical
Maximum output: +30db at less than 0.8%thd. (+29.5db at 0.06%thd)
Frequency response: +/- 0.25db, 10hz to 70khz typical.
Signal to noise: -85db typ


The Electrodyne 511: vintage sound, better than ever!



Specification
Detail


Manufacturer Part Number
511
