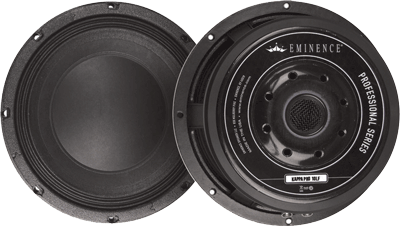

Eminence Kappa Pro 10LF

OVERVIEW


Enhanced low frequency version of the Kappa Pro 10.





Each
Eminence Professional model can be identified by its cast aluminum
Eminence chassis that is lightweight and strong. Aluminum does not
conduct the magnetic field out of the gap, thereby making the motor
strength higher and the stray magnetic field lower. Each chassis and all
metal components are coated with an epoxy-acrylic finish using an
in-house e-coat process. The thickness of that coating can be controlled
to within 0.001"; critical when working with close tolerance transducer
motor designs. Then front and rear sealing gaskets are added on each
model to accommodate front or rear loading.

There are 26 unique
models available in the Professional series. Each was designed with a
specific application in mind. From heavy-duty subwoofers, low distortion
woofers, and super high-power woofers to lightweight neodymium
transducers in truncated frames for line arrays, there is an Eminence
Professional model for your application. Each product includes a lot of
Made in the USA pride.








FEATURES


10" low frequency driver
600W power rating
91.6dB sensitivity
Enhanced low frequency
Excels in compact vented or horn loaded bass guitar or subwoofer enclosures




Perfect replacement for many portable PA cabinets. Keep a spare on hand!





SPECIFICATIONS


Professional KAPPA PRO-10LF 10" 600W PA Replacement Speaker



Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating**
Watts 600 W
Music Program 1200 W
Resonance 39 Hz
Usable Frequency Range 47 Hz - 2 kHz
Sensitivity*** 91.6 dB
Magnet Weight 105 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 39 Hz
DC Resistance (Re) 5.47 Ω
Coil Inductance (Le) 0.97m H
Mechanical Q (Qms) 8.97
Electromagnetic Q (Qes) 0.29
Total Q (Qts) 0.28
Compliance Equivalent Volume (Vas) 72.97 liters / 2.58 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 271.4 cc
Mechanical Compliance of Suspension (Cms) 0.37 mm/N
BL Product (BL) 14.46 T-M
Diaphragm Mass Inc. Airload (MMs) 46 grams
Efficiency Bandwidth Product (EBP) 132
Maximum Linear Excursion (Xmax) 7.2 mm
Surface Area of Cone (Sd) 376.9 cm2
Maximum Mechanical Limit (Xlim) 16 mm

MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 25.49-49.55 liters / 0.9-1.75 cu.ft.
Driver Volume Displaced 0.067 cu.ft. / 1.9 liters
Overall Diameter 10.27", 260.9 mm
Baffle Hole Diameter 9.14", 232.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 9.75", 247.7mm
Depth 5", 127 mm
Net Weight 17.2 lbs, 7.8 kg
Shipping Weight 18.35 lbs, 8.32 kgs

MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Die-cast aluminum basket
Cone Composition Treated paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Treated Paper dust cap




*Estimate shipping between 5 - 12 weeks, or please call (083) 497-2227
for a faster air freight service with special price rate.
