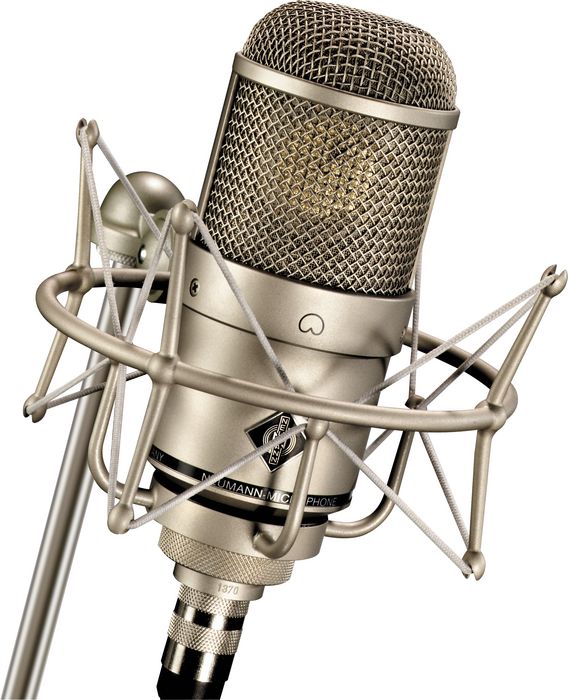

Neumann M147 Tube Condenser Microphone

The�Neumann M 147 Tube Microphone�is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.


The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 300m in length without signal degradation. The side address capsule features a cardioid polar pattern which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper midrange, and a boost of up to 3dB above 2kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.


Tube CircuitryThe M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid state circuitry.K 47/49 Dual DiaphragmFeaturing the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.Quality Output CircuitryThe Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 300m in length without degradation in signal.Cardioid Polar PatternThe cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.N 149A Power SupplyThe Neumann N 149A power supply effectively powers the microphone and is compatible with both the M 149 and 147 microphones.




Transducer
Pressure Gradient�Condenser


Polar Pattern
Cardioid


Frequency Response
20 Hz - 20 kHz


Dynamic Range (Typical)
102 dB, (THD Less Than 5%)


Signal-to-Noise Ratio
70 dB, (CCIR 468-3)�
82 dB, (DIN/IEC 651)


Maximum Input Sound Level
134 dB, (@ 1 kHz, THD Less than 5%)


Power Requirements
N 149-A Power Supply�Included


Output Impedance
50 Ohms


Output Connectors
XLR-3M Type (Output from Power Supply)


Pad
None


Low Frequency Roll-Off
None


Dimensions
5.6 x 2.2" (142.24 x 55.88mm) LxD


Weight
16.2 oz (459g)






Packaging Info


Package Weight
11.65 lb


Box Dimensions (LxWxH)






Neumann M147 Tube Microphone


Swivel Stand Mount
Universal Power Supply
Cable
Aluminum Case
1-Year Warranty
