ART HeadAmpPro6 Headphone Amp with 6 Headphones

The most flexible and advanced headphone-mixing system in its price class.

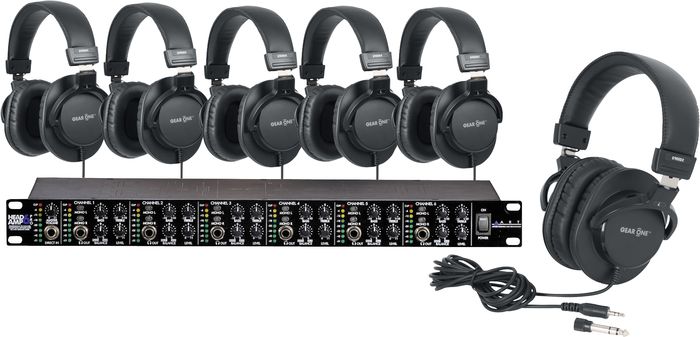

This package includes the ART HeadAmp6PRO Headphone Amp and six pairs of Gear One G900DX Headphones.

ART HeadAmpPRO Headphone Amp
The
ART HeadAmp6PRO is a six-channel stereo headphone amplifier that
includes a six-channel auxiliary input section that can be used to
provide the popular "more-me" function on each headphone mix. Each
output channel also features a dual-function balance control which will
pan between the left and right sides of the main signal bus, or vary the
mix between the main signal bus and the auxiliary input for that
respective channel.

Bass and treble controls are included on
each output channel for fine-tuning the tone. Outputs include both
front- and rear-panel stereo 1/4" TRS jacks for ease of installation and
quick patching capability. Two mono select buttons on each channel
select between four operating modes: Stereo, Mono Left, Mono Right, and
Mono Both (left and right) for versatile monitoring solutions.

The
main outputs for each channel of the headphone amplifier are
rear-mounted stereo TRS jacks wired in parallel with the corresponding
output jacks on the front panel. Front-panel, rear-panel, or both front-
and rear-panel outputs can be used simultaneously to drive headphones
or be used as feeds to additional headphone amplifiers in a distributed
audio network.

Input options include XLR and 1/4" TRS balanced
inputs with matching Thru jacks for bridging multiple HeadAmp6Pro units.
An additional front-panel stereo 1/4" TRS jack for quick patch override
of the rear panel inputs is included for quick insertion of any stereo
source. Eight-segment LED level indicators provide visual feedback of
the signal level on all channels as well as the main signal bus.

Gear One G900DX Headphones
Gear
One G900DX Headphones are comfortable, around-the-ear headphones with
180° rotatable frame for single-ear monitoring. Gear One G900DX are
circumaural headphones designed for playback, monitoring, and recording.
With a lightweight 40mm neodynium driver, soft leatherette earpads and
versatile hinge design, the G900DX offers extended frequency response,
hours of comfort, and easy storage and handling.




Features
ART HeadAmpPRO Headphone Amp

Six independent high-power amplifier channels
Bass and treble EQ per channel
Dual function pan/mix control per channel
Stereo aux input for each channel
Multiple monitoring settings per channel
Precision eight-segment LED bar graph per channel
Front panel main insert jack
Front- and rear-mounted headphone jacks
XLR and 1/4" main inputs and outputs
Parallel main outputs for multiple unit use

Gear One G900DX Headphones

Compact, lightweight, and portable design
40mm neodynium driver
Plush leatherette headband and earpads
Closed cavity structure
High-quality telescopic arms
180° rotatable frame, ideal for single-ear monitoring
Single-sided cable duct




Order a real studio problem solver today!


�

HeadAmpPro6 Headphone Amp with 6 Headphones Specifications:

ART HeadAmpPRO Headphone Amp
Input Impedance
Balanced Main Input XLR and 1/4-inch TRS Jacks: 40K Ohm Balanced
Direct In TRS Jack: 9.9K Ohm Stereo Aux Input TRS Jacks: ≤ 21K to ≥ 15K Ohm
CMRR @ 1KHz: ≥ 40dB

Output Impedance
Headphone output: ≤ 12 Ohms

Frequency Response
With Tone Controls Set Flat: 20 Hz – 50 KHz +0, -2dB
High Frequency EQ: ± 12dB @ 10 KHz Shelving
Low Frequency EQ: ± 12dB @ 100 Hz Shelving

Maximum Input Level
+21.5dBu

Dynamic Range
Ref: 130mW @ 600 Ohms (unit set to max gain): ≥101 dB (typical)

Maximum Gain
@ 1KHz With Tone Controls Set To Flat: 25.6 dB

Maximum Output Level
600 Ohm Headphones @ 1 KHz: 150 mW
32 Ohm Headphones @ 1 KHz: 500 mW
8 Ohm Headphones @ 1 KHz: 150 mW
Dimensions (HxWxD): 1.75" x 19" x 7.55" (44.5mm x 482.6mm x 190.5mm)

Weight
6.8 lb. 3.1 kg.

Power Requirements
Input: USA – 105-125 VAC AC 60 Hz Consumption: 60W Maximum - 18W Idle

Gear One G900DX Headphones
Earcup: Circumaural
Transducer type: Dynamic
Driver size: 40m
Impedance: 32Ω
Sensitivity/Max. SPL: 95 ±3dB/105±3dB
THD: <0.3%
Freq. response: 15Hz-22kHz
Max.: Power 400mW
Rating: Power 200mW
Cable: Length 3M (straight)
Plug: 3.5mm (plus 6.3mm adapter)
Weight: 233g (with cable)


*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
