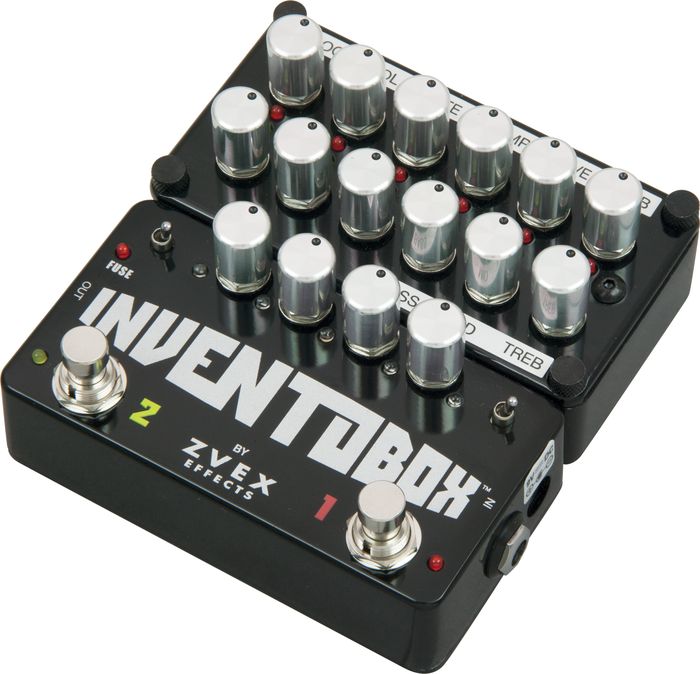

ZVEX Effects Inventobox Loaded

The world's smallest production tube amp.

With the ZVex Effects Inventobox you can quickly design, build and
modify your own guitar pedals without soldering! The Inventobox offers 2
different channels so you can build up to 2 different devices in the
same stompbox.

Zvex includes all necessary components to make effect pedal construction
easy for you. There are a variety of potentiometer values and switches
already inside the box, quickly accessible through tiny sockets which
accept standard experimenter socket wires or included cables. Easily
open the Inventobox guitar pedal to quickly modify the circuitry.

4 basic components:
The enclosure with 4 permanently-mounted 100k potentiometers (rotary
controls), a pair of 3-position switches, 5 multi-colored LEDs, and 2
stomp switches with On/Off LEDs.

Inside the dual enclosure is a window which contains connectors to
access the input and output for channels 1 and 2, an LED work light to
see the connectors more clearly, a 9VDC power connection, and various
connectors for the multi-colored LEDs and potentiometers.

The lid for the upper part of the enclosure which contains 12 removable
potentiometers (the order and values can easily be changed), 12 LEDs,
and sockets which let you easily hook up wires from your pedal circuit
to the various controls and LEDs.

The lid also has a removable brass shielded tray which contains an experimenter's socket where you build up your circuits.

Design features:
The Inventobox has several unique design features which make it easy to
use as well as road-worthy when assembled. The brass tray provides
electrostatic shielding between the bottom of the experimenter's socket
and the potentiometers, eliminating cross-talk and noise issues. The
removable brass tray on the upper enclosure's lid allows access to 12
removable potentiometers so you can easily set up the correct order for
your pots, making the controls easy to remember. The design of the tray
allows you to put a securing rubber band around the tray's edge to keep
all potentiometer and LED wires in place. This makes the unit
road-worthy.

The security of the components and wiring is further enhanced by the use
of one or more foam inserts which rest against the inside of the upper
enclosure, holding vital components in place on the experimenter's
socket. The lid locks in place on the two stomp switches for easy
assembly when hooking up the cables to wire your circuit into the box.
Just set the lid upside down on top of the stomp switches to lock it in
place. Also, there are two stainless rods that hold the lid above the
upper enclosure if you need to have it closer for easier wiring. Just
slip the rods into the threaded screw holes in the enclosure, then hook
the bent ends onto the lid.

Other design features include labels on the brass tray and
potentiometers that describe connections and values, and a
specially-designed circuit board that holds the pots in alignment when
changing the order for your designs.

There are a number of different cables included with the Inventobox
which provide a complete set of every type of wiring configuration you
might need to connect your experimenter's socket to the inside of the
lower enclosure. They come in two lengths, 100mm and 150mm, making it
easy to reach the experimenter's socket on either the top or bottom.


ZVex Inventobox Guitar Multi Effects Pedal Features:



Enclosure with 4 permanently-mounted 100k potentiometers (rotary
controls), two 3-position switches, 5 multi-colored LEDs, and two stomp
switches with on/off LEDs

Connectors inside the dual enclosure window to access the input and
output for channels 1 and 2, an LED work light to see the connectors
more clearly, a 9VDC power connection, and various connectors for the
multi-colored LEDs and potentiometers

Lid for the upper part of the enclosure which contains 12 removable
potentiometers (the order and values can easily be changed), 12 LEDs,
and sockets which let you easily hook up wires from your pedal circuit
to the various controls and LEDs

Removable brass shielded tray which contains an experimenter's socket where you build up your circuits



Rock on, and happy designing and building!



ZVex Inventobox Guitar Multi Effects Pedal Specifications:




Dimensions:7-3/4"D x 7"W x 3-1/2"H
Weight: 2-1/2lb.
