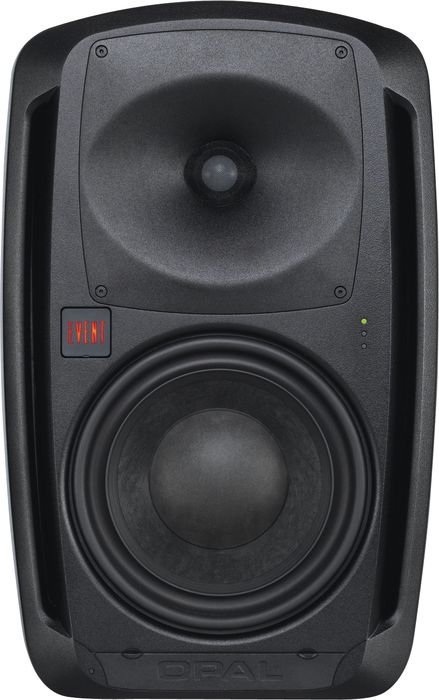

Event OPAL 2-way 750-watt Active Monitor

Event


This monitor is designed for big power and incredibly low levels of distortion.




The Event Opal is an eight-inch two-way powered
studio monitor that has been designed from top to bottom to enable the
reproduction of the most detailed dynamics while delivering incredibly
low levels of distortion. Its woofer, tweeter, amplifier and cabinet all
feature innovative and unique design and technology elements, combining
to create one of the finest studio monitoring systems ever released,
and certainly one of the most important studio recording advancements of
the last decade.

The Opal's EX8 driver provides a raw response
of 30Hz to 10kHz and a power handling of up to 1000 watts. A
high-powered neodymium motor provides 36mm of linear excursion to the
bespoke high-strength glass fiber polyamide cone. Event's X-Coil
technology dramatically increases the driver speed and control, lowering
distortion to levels previously unavailable in its class, and providing
defined and accurate mid range reproduction as well as powerful, high
speed bass.

The ULD1 tweeter combines ultra light and rigid
beryllium-copper with an extremely powerful neodymium motor to produce
unbelievable high frequency clarity. The active monitor is mounted in
the Opal's innovative high frequency waveguide, which has been designed
not only to provide excellent stereo imaging and a wide soundstage, but
also to enable users to remove and rotate it for accurate reproduction
in horizontal mounting applications.

The Event Opal's cabinet is
molded from aluminium to provide strength and minimize resonance. Each
surface is a combination of complex radii to eliminate any diffraction
inside the speaker cabinet. The front mounted ports incorporate a
variable impedance design that completely remove any port noise, and
does not rely on room acoustics unlike rear porting solutions.





Order this revolutionary monitor now and save!

OPAL 2-way 750-watt Active Monitor Specifications:

System:
Frequency Response: 35Hz - 22kHz
Crossover Frequency: 1600Hz
Crossover Type: Acoustic 8th Order (48dB/Oct)
3rd Harmonic Distortion @ 90dB SPL, 1m: 500 - 7kHz - 0.08% 200 - 20kHz - 0.2% <200Hz - 1.5%
Acoustic Output - SPL @ 1m
Long Term (80Hz - 20kHz): 111dB
Peak (80Hz - 20kHz): 114dB
Signal Input: Combo XLR, 1⁄4" TRS (bal/unbal)
Input Sensitivity: .755 v/rms is 0dBu
AC Input Voltage: 110-120V or 220-240V (selectable) 90-110V (Japan)
AC Input Connector: 2-Pin IEC
Average Long-Term Power Consumption: 220 watts
Quiescent Power Consumption: <20 watts
Physical:
Cabinet Volume: 28 Liters
Cabinet Construction: High Pressure Injection-Molded Aluminium
Cabinet Finish: Black Powdercoat
Low Frequency Vents: Two Variable Impedance Ports (patent pending)
Waveguide Construction: High Pressure Injection-Molded Aluminium
Waveguide: Elliptical waveguide - Rotatable
Mounting Points: Four each M8 Omni-mount Pattern
Cabinet Dimensions: 11.6" W x 17.7" H x 10.8" D (295mm W x 450mm H x 273mm D)
Cabinet Weight: 21.2 kg/46.74 lb
Operating Temperature Range: 5-35° C / 40-95° F
Agency Approvals: CE, UL, CCC, C-Tick, SASO, NON,
EK, PSE
Low Frequency Transducer - EX8
Piston Diameter: 7.1" (180mm)
Voice Coil Configuration: X-Coil double Low distortion design
Voice Coil Diameter: 2.6" (66mm)
Shortening Coil Diameter: 2.56" (65.2mm)
Former Material: High Strength Polyamide - Glass Fiber
Voice Coil Wire: Copper Clad AI
Magnet Type: Neodymium
Magnetic Gap Design: XBL - Split Gap
Impedance Nominal in Cabinet: 5 Ohms
Cone Type: Carbon fiber composite
Power Handling:
Continuous Pink Noise: 240 W
Program Power: 360 W
Peak Power: 720 W
High Frequency Transducer - ULD1
Dome Diameter: 1" (25.4mm)
Voice Coil Diameter: .98" (25mm)
Magnet Type: Neodymium
Impedance DCr: 6 Ohms
Impedance Nominal in Cabinet: 5 Ohms
Dome Type: Beryllium Copper
Power Handling:
Continuous Pink Noise: 25 W (above 1.6 kHz)
Program Power: 50 W (above 1.6 kHz)
Peak Power: 100 W (above 1.6 kHz)
Low Frequency Amplifier:
Frequency Response: 20Hz - 20kHz (±0.1dB)
Operating Band Pass: 20Hz - 1,600Hz
Total Harmonic Distortion: .009% @ 300 W into 5 ohm load
Voltage Gain: 24dB
Long Term Power @ 5 Ohms: 270 W
Continuous Power @ 5 Ohms: 387 W
Burst Power @ 5 Ohms: 600 W
Output Topology: Class AB
Cooling: Convection - Aluminum Heat Sink
High Frequency Amplifier:
Frequency Response: 20Hz - 20kHz (±0.1dB)
Operating Band Pass: 1,600Hz - 20,000Hz
Total Harmonic Distortion: .003% @ 90 W into 5 Ohm load
Voltage Gain: 15dB
Long Term Power @ 5 Ohms: 50 W
Continuous Power @ 5 Ohms: 112 W
Burst Power @ 5 Ohms: 140 W
Output Topology: Class AB
Cooling: Convection - Aluminum Heat Sink


*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
