Nady MGT 16 UHF Wireless Instrument System With 30 Degree Plug

�






Lets you take your guitar or bass all over the place without losing your sound. Keyboards too!

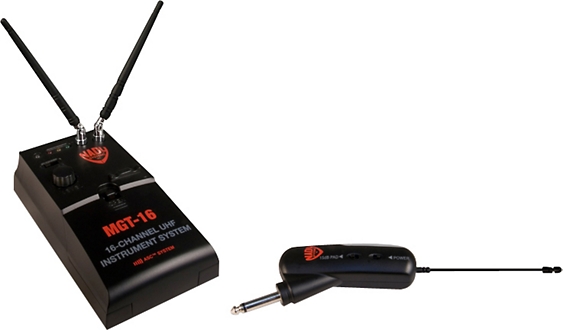

The Nady MGT-16 is a 16-channel ultra compact UHF wireless system designed for guitar and bass. The MGT-16 has 16 selectable frequencies and gives you up to a 250' operating range, and uses infrared ASC Auto-Sync Channel transfer for quick, convenient setup. The stompbox-size receiver can be placed anywhere you choose—even onstage next to your effects pedals. The miniature, lightweight MT-16A is a transmitter with a 30-degree angle plug that goes directly into any guitar, bass, or even into a portable keyboard output jack.




Features
MGT-16 Wireless System

UHF wireless system for guitar/bass
16 user-selectable PLL frequencies for interference-free operation
Up to 250 ft. operating range, line-of-sight
Infrared ASC Auto-Sync Channels transfer from receiver to transmitter for instant setup
Battery operated receiver and transmitter

MGT-16 Wireless Receiver

Compact, portable, pedal-style receiver
Dual 1/4 wave antennas
Infrared sync with transmitter for instant setup
Unbalanced 1/4" line out jack
Power On/Off/Mute switch; Volume Control; LED indicators for Power On, Low Battery Alert, and RF Reception; DIP-switch channel selection with IR sync to transmitter
Powered by DC adapter (included) or 2 AA alkaline batteries for portability (up to 8 hours battery life)

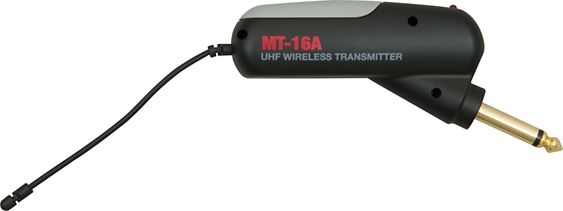

MT-16A Wireless Transmitter:

MT-16A with 30-degree angled 1/4" plug for use with either recessed or surface mounted jacks
Up to 8 hours of battery life from a single AAA alkaline or NiMH rechargeable battery
Infrared channel sync with receiver for instant setup
Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED; Input Level attenuation switch; internal Audio Level control trim-pot




Enjoy working the stage without worrying about tripping over wires. Order an MGT-16 system now!


�

MGT 16 UHF Wireless Instrument System With 30 Degree Plug Specifications:


MGT-16 Wireless System
Frequency response: 50Hz—16kHz (-3dB)
Dynamic range: 120dB
Oscillating system: Phase Lock Loop (PLL)
Total Harmonic Distortion (THD): <0.8%
RF Carrier Frequency range: 902.40MHz—923.70MHz
Modulation: FM (F3E), ±30KHz normal
Operating Range: Up to 250 feet (typical, depending on-site conditions)
MGT-16 Wireless Receiver
Controls: Audio Level, Power ON/MUTE/OFF, Frequency Select DIP-switches, IR sync button
Connectors: Unbalanced 1/4", DC Adapter input jack
LED Indicators: Power ON (Red-continuous), Low Power (Orange-continuous),
RX reception (Green)
Antennas: Dual 1/4 wave, adjustable orientation
Signal-To-Noise Ratio: >105dB (w/AC/DC power supply)
Receiver Sensitivity: -110dBm nominal, 12dB SINAD
Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable
Output Impedance: 1.0KΩ
Power Consumption DC: 3V/ 115mA or AC/DC adapter: 10VDC/200mA
Battery: 2 AA alkaline or NiMH
Battery Life: Up to 8 hours
Dimensions: 2.75"W x 5.00"D x 1.88"H (7.0cm x 12.7cm x 4.78cm)
Weight: (w/o batteries) 5.7 oz. (161.6g)
Housing construction: ABS Plastic
MT-16A Wireless Transmitter
RF Power Out: 25mW nominal, 50mW maximum
Harmonic & Spurious Emissions: -50dB
Controls: Power ON/OFF, 15dB Attenuation Pad select switch
LED: Indicators Power ON (Red-single flash), Low Battery (Red flash)
Input Impedance: 500KΩ
Power Consumption: DC 1.5V/90mA
Battery: One AAA alkaline
Battery life: Up to 8 hours
Antenna: 1/4 wave, permanently attached
Dimensions: 4.5"W x 2.0"D x 1.0"H (11.43cm x 5.08cm x 2.54cm)
Weight (w/o batteries): 1.2 oz (34g)
Housing construction: ABS plastic



�
