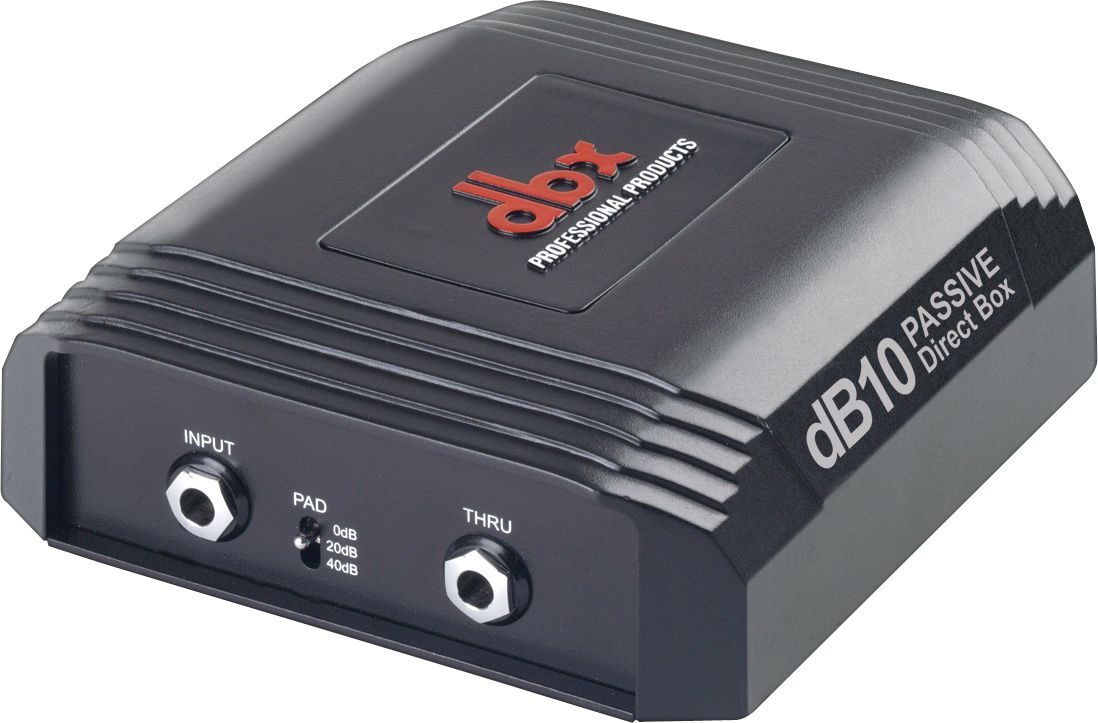

dbx dB10 Passive Direct Box

Bullet-proof construction and extraordinary audio performance.

The dbx dB10 is a passive direct box that features custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry. The dB10 direct box includes a pad switch that accommodates instrument, line, and even speaker level signals. Take even more control of your sound by utilizing the dB10 passive direct box's polarity invert switch to set the phase relationship between the direct and the mic'd sound. As a professional, you don't have time for interference, so dbx includes a ground lift switch in the db10 passive DI box to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the db10's cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop the dbx dB10 direct box's solid, stable footprint, that keeps the dB10 box from being dragged around the stage. The dbx DB10 Passive Direct Box also has a uniquely contoured underside that allows secure stacking of multiple units.


Features

Input Section:
Input: 1 instrument/line/speaker level
Connector: 1/4" jack
Type: Unbalanced, RF filtered
Impedance: 150k Ohm typical
Max Input Level:

+20dBu (0dB pad)


+40dBu (20dB pad)
+60dBu (40dB pad)
Output Section:
Thru Output: 1 parallel connection from input jack
Connector: 1/4" jack
Type: Unbalanced, RF filtered
Main Output: 1 line level
Connector: XLR male jack
Type: Balanced
Impedance: 150 Ohm typical
Max Output Level: 0dBu
Performance:
Transformer: Custom dbx mu-metal-shielded
Frequency Response: 20Hz to 20kHz, ±2.5dB
Noise:
THD: <0.01%, 20Hz to 20kHz BW
<0.005%, 1kHz
General:
Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Weight: 1.4 lb. / 0.65 kg



Order today and take control of your sound.
