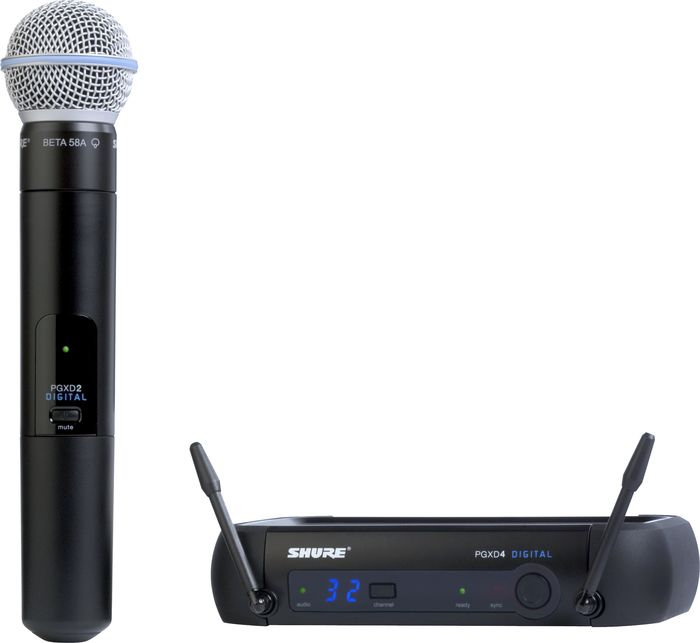

Shure PGXD24/Beta58A Digital Wireless System with Beta 58A Mic

Supercardioid dynamic handheld transmitter and 24-bit/48kHz digital receiver for accurate vocals at a range of up to 200'.






This PGXD24/Beta 58A Digital Wireless System from Shure adds the clarity of 24- bit digital audio to the legacy of trusted Shure microphone options for wireless performance. It includes the Beta 58A, a precision-engineered supercardioid dynamic microphone optimized for lead vocal applications, PGXD4 wireless receiver, PGXD2 handheld transmitter, padded carrying case, and microphone clip.

The PGXD2 transmitter features automatic setup, a multi-function LED Indicator (power, lockout, mute, low battery), and provides you with 8 hours of continuous use on 2 AA batteries. It gives you and your microphone a generous 200' (60m) operating range without losing audio quality.

The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.

The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.

The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.


Shure PGXD24/Beta58A Digital Wireless System with Beta 58A Mic Features:


PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection

PGXD2 Handheld Transmitter with Beta 58A microphone Precision-engineered supercardioid dynamic microphone optimized for lead vocal
applications
Power, mute, and battery status LED
Up to 9 hours of continuous use from 2 AA batteries
200' (60m) operating range
Lockable interface prevents accidental setting changes
Rugged construction for reliable performance show after show

Beta 58A Mic
Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound
Neodymium magnet for high signal–to–noise output
Hardened steel mesh grille that resists wear and abuse
Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
Minimally effected by varying load impedance
Legendary Shure quality and reliability

Included:
PGXD4 wireless receiver
SM58 microphone with PGXD2 handheld transmitter
Padded hardshell case
Microphone clip


Give your lead vocalist more mobility with this digital wireless system. Order today!



Shure PGXD24/Beta58A Digital Wireless System with Beta 58A Mic Specifications:



PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground

PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at –10dB position
–8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions including SM58 cartridge: 254mm x 51mm dia. (10" x 2")
Weight: 290g (10.2oz.) without batteries
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 AA size alkaline or rechargeable batteries
Battery Life: > 8 hours (alkaline)

Beta 58A Mic
Type: Dynamic (moving coil)
Frequency Response: 50 to 16,000Hz
Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency.
Output Level (at 1,000Hz): Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV)
*1 Pa = 94dB SPL
Impedance: Rated impedance is 150Ω (290Ω actual) for connection to microphone inputs rated low-Z phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Case: Silver blue enamel-painted die cast metal with hardened, matte-finished, spherical steel mesh grille
Adjustable, Stand Adapter: Slip-in microphone mounting, unbreakable, adjustable through 180 degrees with standard 5/8"-27 thread, black finish
Dimensions: See user guide
Net Weight: 278g (9.92oz.)
