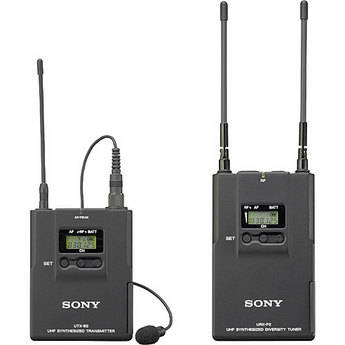

Sony UWP-V1 Wireless Lavalier Microphone Package (30/32 - 566 to 590MHz)

The Sony UWP-V1 Wireless Lavalier Microphone System replaces
its UWP-C series predecessor with enhancements that include a rugged,
all-metal chassis and Mic/Line switchable input at the transmitter.
PLL-synthesized tuning, space-diversity reception and all other
professional wireless features that made the UWP-C series a popular
choice, go into the enhanced UWP-V1 system.


The camera-mountable
receiver features space-diversity technology which stabilizes reception
and minimizes RF interference by selecting the strongest incoming
signal. In addition the antennas swivel so that you can achieve even
stronger reception. A stereo mini jack output with monitor volume
control is featured and both stereo, mini and XLR cables are provided.
An LCD display provides channel & frequency information, battery
life, RF-input level, audio-output status and accumulated operating
time. The receiver operates on 2 AA batteries for up to 8 hours and its
compact design and included shoe-mount adapter allows easy mounting to
most camcorders.


The improved body-pack transmitter features a
microphone and line level input switch. This allows wireless
transmission of microphone or line level signals. Like the receiver, the
body-pack transmitter also features 188 selectable UHF frequencies and
operates up to 8 hours on 2 AA size alkaline batteries. An
omnidirectonal lavalier microphone is supplied with this system.

Improved All Metal Construction
The transmitter and receiver both feature metal construction for maximum durability on the road.

Mic and Line Input Switch
The transmitter features microphone and line level switching for transmitting microphones or line level signal sources.

UHF Synthesized Frequencies
Both transmitter and receiver provide 188 user selectable
frequencies, providing plenty of options when interference is present.

Space Diversity Receiver
The receiver features a space diversity design which simply
chooses the strongest signal between the dual incoming signals, then
sends that signal to output.

Selectable RF Output
The transmitter allows selection between 5mW output power and
30mW output. 5mW is suitable for indoor, simultaneous multi-channel
operation while 30mW is intended for outdoor, long-range use.

Comprehensive Display
Both transmitter and receiver feature a comprehensive LED
display providing channel and frequency information, battery life, total
usage time and more.

Omnidirectional Lavalier
A high-quality omnidirectional lavalier microphone provides the
sonic quality needed to handle professional and non-professional
applications.










System



Type of System


Camera Mountable UHF Synthesized Wireless Lavalier System



RF Carrier Frequency Range


30/32 - 566 to 590MHz



Approx. Working Range


Not Specified by Manufacturer



Overall Frequency Response


40Hz to 18kHz



Signal-to-Noise Ratio


60dB (A-Weighted)



# Of Channels


188



# Of Simultaneous Systems


16








Receiver



Type of Receiver


Camera Mountable, Space Diversity, Crystal-Controlled PLL Synthesizer



Type of Outputs


3.5mm (1/8") Mini-Plug, unbalanced



Headphone Monitoring


3.5mm (1/8") Mini-Plug, unbalanced with Variable Level



Power Requirements


DC 3.0V (2 AA alkaline batteries)



Battery Type/Approx. Life


Two AA Batteries, Up to 8 Hours



Display


LCD Display



Mounting Options


Camera / Belt / Mic Stand Mountable



Antenna Type


(2) 1/4 Wave Wire



Dimensions (WxHxD)


2.48 x 4.11 x 0.86" (63 x 104.5 x 22mm)



Weight


Approx. 7.2 oz (205g) (including batteries)








Transmitter



Type of Transmitter


Crystal-Controlled UHF PLL-Synthesized Body-pack Transmitter



Type of Input Connector


Mic/Line Switchable - Mini Microphone Connector (3.5mm)



Type of Microphone


Lavalier



Polar Pattern


Body-pack transmitter not handheld



Interchangeable Mic Heads


compatible with any microphone features a mini (3.5mm) connection



Battery Type/Approx. Life


2 AA Alkaline Batteries, Up to 8 Hours



Mute Switch


No



Level Control


Microphone level control



Antenna Type


Miniature 1/4 Wave Length Helical Antenna



Display


LCD Display



Dimensions (HxWxD)


2.48 X 3.24 X 0.73" (63 x 82.5 x 18.7mm)



Weight


5.1 oz. (145g) (with Battery)
