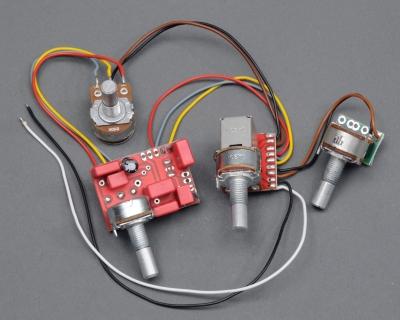

Glockenklang 2-band 4-knobs on-board Bass Preamp

Onboard preamp 2-band
The GLOCKENKLANG 2-band onboard preamp is active/passive switchable (at the volume push/pull), has a balance-pot with no volume dip in center-position, a treble-pot with +/- 18 dB@18 KHz in active mode, acting as classical highcut in passive mode and a bass-pot with +/- 14 dB@40 Hz. Battery-connection is 9 volts.
Due to the high performance electronic, in flat position of the eq you can hear no difference between active and passive mode! It comes pre-wired with highflexible cables.
Control Configuration

Volume (Push/Pull Active-Passive)
Blend
Treble
Bass

Technical Data


Treble: +/- 18 dB@18 KHz (tone roll-off in passive mode on 3 band 5 knob and 2 band 4 knob versions)



Bass: +/- 14 dB@40 Hz



Gain: 1 (0 dB)



Input-impedance (without Balance): 1.5 MOhm



Frequency range: 20 Hz -20 KHz



Power requirement: 9 volts/1.3 mA (18v optional)



Transparent:With EQ set flat, you will hear no difference between active and passive mode.


www.music-blvd.com $185
