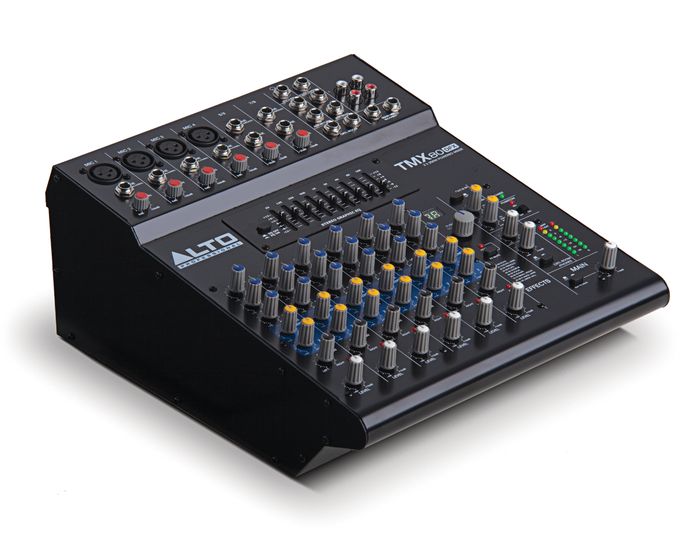

Alto TMX80 DFX 8-Channel Powered Mixer w/ FX

Small, lightweight powered mixer.

Live performances are more than just a job, they are an experience for the performers, the audience and for the sound engineer. The EMPIRE TMX series was engineered to precise specifications to deliver the kind of performance you demand, while giving you everything you need to create an unforgettable experience. The EMPIRE TMX80DFX is part of the TMX line, which also includes the TMX200DFX, TMX160DFX and TMX120DFX. The TMX80DFX may be small but it's loaded with just what you need including 14 total inputs comprised of 4 XLR jacks with phantom power, 8 Line jacks and stereo RCA. These low-noise channels are your best friend when connecting instruments, mics, or even your iPod for playing between sets. Even better, each mono and stereo channel has its own 3-shelf EQ, so you can dial in every nuance you need in seconds. in addition, there is a full 9-band stereo EQ. A/D and D/A conversion is performed with 24-bit precision, which means you'll never have a "What was that?" moment. Easy-to-view knobs with incredibly smooth movement help to make mixing feel like playing a fine instrument. The TMX80DFX's on-board Alesis digital effects processor provides pristine 24-bit, ultra-clean digital effects you, and the audience, won't soon forget. Effects include Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal, Rotary, Small Room, Flange Verb, Large Hall. 100 Presets are included, leaving you plenty of options for coloring the mix. The TMX80DFX comes standard with the ability to deliver ultra-clean power at 2 x 350W (4-ohms) or 2 x 180W (8-ohms). All that power isn't as heavy as you might expect. Weighing in at just under 11 pounds, the TMX80DFX is a clear winner in the power-to-weight class.


Features

14 total inputs including 4 XLR jacks with phantom power, 8 Line jacks and stereo RCA
On-board digital effects processor and 3-shelf EQ on each mono and stereo channel
1400 Watt peak
Continuous 2 x 350 Watts at 4 Ω (2 x 180 W at 8 Ω) with thermal, short and voltage protections
48V phantom power



Order now for a perfect PA to manage rehearsals and smaller gigs.



TMX80 DFX 8-Channel Powered Mixer w/ FX Specifications:


Input Channels
Mono channels: (Ch. 1 - Ch. 4)
Microphone Input: Electronically Balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion: (THD&N) 0.005% At + 4 dBu, 1 kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain
70 dB Ch. Mic input  Main Mix Out & Tape Out
80 dB Ch. Mic input  Control Room & Phones
60 dB Ch. Mic input  Aux Send
SNR (Signal to Noise Ratio): 110 dBu
Phantom power (Mic Pin2/Pin3 And Pin1): +45 V ~ +49 V with switch control
Line Input
Electronically Balanced (SW to LINE)
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion: (THD&N) 0.005% at +4 dBu, 1 kHz
Gain range: 15 dBu to 35 dBu
Stereo channels: (Ch. 5 - 8)
Line Input: Electronically Balanced (SW to Line)
SNR: (Signal-to-Noise Rate ) 110 dBu
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion: (THD&N) 0.005% At + 4dBu, 1 kHz
Gain range: -20 dBu to +20 dBu
60 dB Ch. Line  Min Mix out
Maximum Voltage Gain
20 dB FX ReturnMain Mix Out
20 dB RCA Tape InputMain Mix Out
Impedance Microphone Input: 3.9 kOhms
All Other Input: 10 kOhms or Greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms
Equalization
Mono channels
High ±15 dB @ 12 kHz
Mid ±15 dB @ 2.5 kHz
Low ±15 dB @ 80 Hz
Stereo channels
High ±15 dB @ 12 kHz
Mid ±15 dB @ 2.5 kHz
Low ±15 dB @ 80 Hz
Stereo Graphic EQ
±12 dB @ 16 kHz
±12 dB @ 8 kHz
±12 dB @ 4 kHz
±12 dB @ 2 kHz
±12 dB @ 1 kHz
±12 dB @ 500 Hz
±12 dB @ 250 Hz
±12 dB @ 125 Hz
±12 dB @ 63 Hz
DSP Section
A/D and D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Echo, Echo + Verb, Tremolo, Plate, Chorus, Vocal, Rotary, Small Room, Flange Verb, Large Hall
Presets: 100
Controls: 100-position preset selector
Clip LED
Mute Switch
Foot Switch with LED indicator
Crosstalk Adjacent Input: -80 dB @ 1KHz (CH1-6)
Input to Output: -75 dB @ 1KHz (Stereo L/R,Ch.1-4, Pan: panned hard left or right)
Main Mix Section: Tape, Aux, Phones output output level 0 dBu Unbalanced, 1/4" jacks
Max out: +22 dBu Unbalanced, 1/4" Jacks
Main EQ (Option): +/-12dB @ 9 bands (63,125, 250 ,500, 1 k, 2 k, 4 k, 8 k,16 kHz)
Noise (Bus noise)
-90 dB @ 20 Hz ~ 22 kHz (channel & Main level at 0 dB,other at minimum, DSP mute)
Electric Specification
Frequency Response: 20 Hz ~ 20 kHz
Output level: 0 dB
S/N Ratio: > 90 dB
Distortion (at 1 KHz): <0.05%
Power Section
SPK. Out Distortion (at 1 W & 1 kHz): <0.1%
Distortion (at 100 W & 1 kHz): <0.15%
Frequency Response (at 100 W): 20 Hz to 22 kHz, +/-2 dBu
SNR (Line In): 100 dBu
Power continuous
1KHz, THD 1% " 2 X 350 W @ 4 Ω or 2 X 180 W @ 8 Ω Power EIAJ
1KHz, THD 1% 2 X 400 W @ 4 Ω or 2 X 200 W @ 8 Ω
Thermal protection: Over-temperature power limiting thermal shutdown
Temperature controlled 12V DC fan output
Short-circuit protection
Overload output protection
Over voltage protection
DC offset shutdown
Static Power
Consumption
No Output power state at 230 V 32 W
100 VAC ~ 50/60 Hz
Power supply Main voltage 110-120 VAC~60 Hz
220 - 240 VAC ~ 50 Hz
100 V: T12 A 250 V
110 ~ 120 V: T12 A 250 V
220 ~ 240 V: T6.3 A 250 V
Dimensions (WxLxH): 304.5mm x 256mm x 74.5mm
Weight: 4.8 kg
