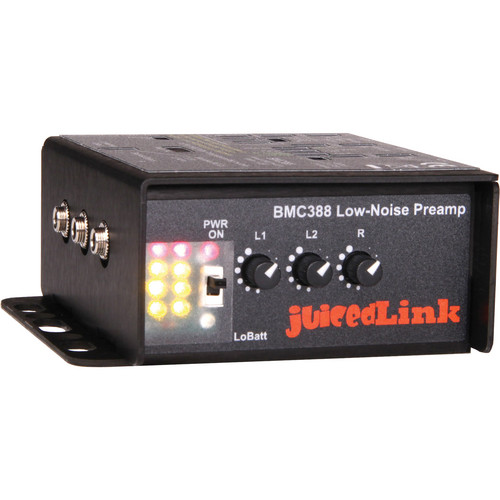

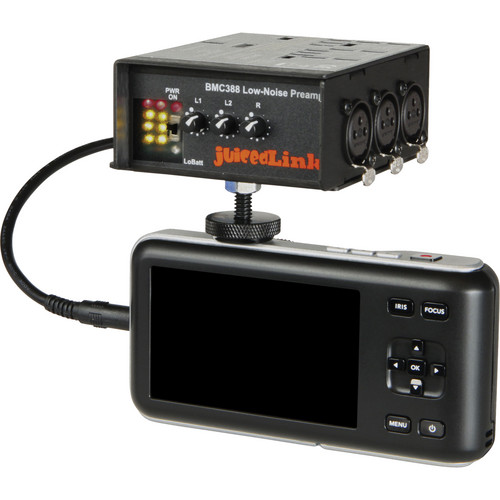

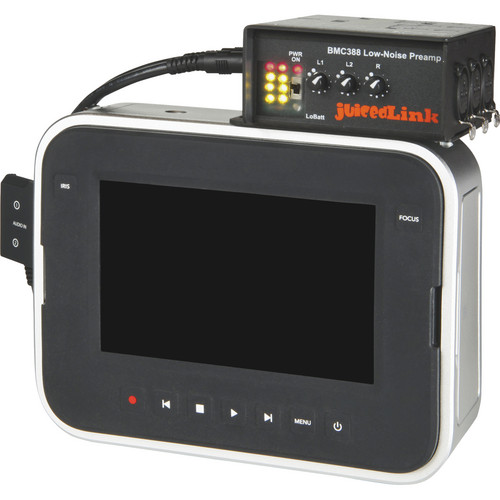

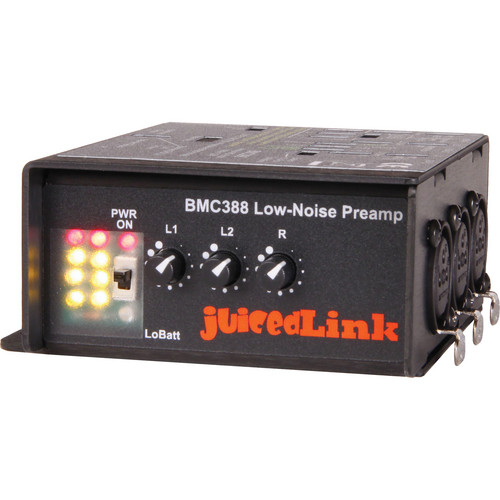

juicedLink BMC388 Blackmagic Cinema Camera Microphone Preamp

The BMC388 Blackmagic Cinema Camera Microphone Preamp from juicedLink allows you to record up to 3 mic- or line-level sources to the audio input on your Blackmagic Cinema Camera while avoiding the audio hiss that can commonly occur in camera preamps. It features 3 XLR inputs with independent gain control and can supply either 12 or 48-volt phantom power. For outputs, the BMC388 has two balanced locking 3.5mm- outs in addition to an unbalanced locking 3.5mm stereo output. Dual 4-segment LEDs provide metering that can be calibrated to your camera. For safety, the BMC388 has selectable audio output bracketing that sends a backup copy of your audio on its right channel at 16dB lower to assure you do not have any clipping. The unit can be powered by a 9-volt battery for up to 6 hours using no phantom power and all three inputs. Two RP101 3.5mm cables are included.

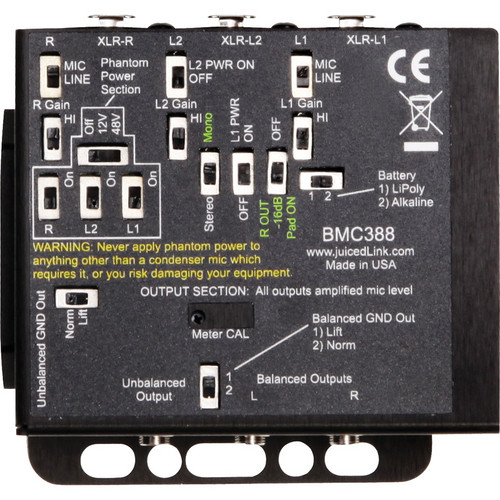

Mic/Line Switches
Hi/Lo Gain Switches
Mono/Stereo Switch









Input
3x XLR


Output
2x 1/8" (3.5 mm) locking balanced amplified mic level outs 1x 1/8" (3.5 mm) locking unbalanced stereo mini jack out


Metering
2x 4-segment R/L meters, can be calibrated to camera


Phantom Power
12 or 48 V


Power Supply
Alkaline or Li-Poly 9 V Battery


Battery Life
All 3 XLR Inputs Active, no Phantom Power: 6 hours (estimate) with Alkaline battery 1 XLR Input Active, no Phantom Power: 12 hours (estimate) with Alkaline battery


Gain
30 dB maximum available gain


Frequency Response
20 Hz to 20 kHz +0 dB/-1.5 dB


Dimensions (W x D x H)
3.4 x 3.7 x 1.5" (86 x 93 x 38 mm)


Weight
8 oz (226 g)
