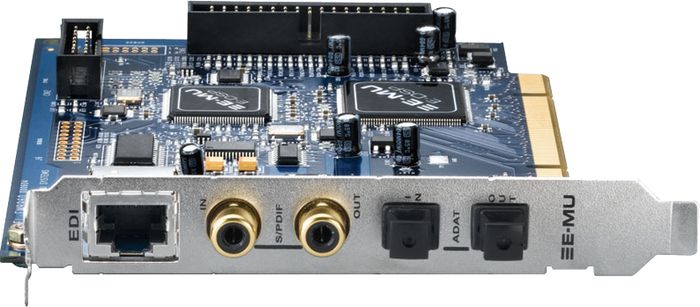

E-Mu 1616M PCIe Digital Audio System

Delivers everything you need to produce audio on a PC with professional results-

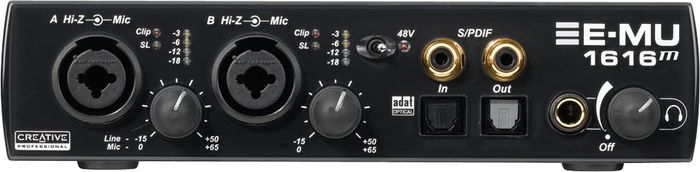

The E-MU 1616M PCIe Digital Audio System delivers everything you need to produce audio on a PC with professional results – 24-bit/192kHz converters, hardware-accelerated effects and mixing. Comprehensive sync options and seamless compatibility with your favorite PC audio/sequencer software. The MicroDock M breakout box offers a total of 16 inputs and 16 outputs plus 32 channels of MIDI I/O, including two E-MU XTC Class-A ultra-low noise mic/line/hi-Z preamps with 48V phantom power and analog soft limiting circuit for clip protection. The 1616M PCIe also ships with ASIO2 and WDM drivers for Windows XP and x64, as well as the E-MU Production Tools software bundle that includes E-MU's Proteus X LE, plus software by Steinberg, Ableton, IK Multimedia, and many more — everything you need to create, record, edit, master and burn your music. The E-MU 1616M PCIe features:
• Mastering grade 24-bit/192kHz converters – the same A/D converters used in Digidesign's flagship ProTools HD 192 I/O Interface delivering an amazing 120dB signal-to-noise ratio • Hardware-accelerated effects – over 600 standalone and E-MU Power FX VST plug-in effects with no CPU overhead • PatchMix DSP zero-latency hardware mixing and monitoring – with super-flexible patchbay – no external mixer needed • Comprehensive analog and digital I/O plus MIDI – MicroDock M offers 16 inputs/16 outputs plus MIDO I/O – everything from balanced analog and turntable inputs to ADAT and S/PDIF (switchable to AES/EBU) • Two E-MU XTC Class-A, ultra-low noise preamps (-129.5dBu) – Mic/Line and true Hi-Z inputs via Neutrik connectors, with analog soft limiter, 48V phantom power and 60dB of gain • Compatibility with most popular audio/sequencer applications *ndash; ultra-low latency 24-bit/192kHz ASIO2, WDM and 64-bit drivers • E-MU Production Tools Software Bundle – includes Cakewalk SONAR LE, Steinberg Cubase LE and Wavelab Lite, Ableton Live Lite 4 for E-MU, IK Multimedia AmpliTube LE and T-RackS EQ, Minnetonka diskWelder BRONZE, SFX Machine LT, plus E-MU's Proteus X LE Desktop Sound Module - everything you need to create, record, edit, master and burn is in the box



Features

Mastering grade 24-bit/192kHz converters
Hardware-accelerated effects
PatchMix DSP zero-latency hardware mixing and monitoring
Comprehensive analog and digital I/O plus MIDI
Two E-MU XTC Class-A, ultra-low noise preamps (-129.5dBu)
Compatibility with most popular audio/sequencer applications
E-MU Production Tools Software Bundle
I/O Configuration:
Two E-MU XTC Ultra-low Noise Mic/Line/Hi-Z Preamps with Soft Limiter and 48V Phantom Power (-129.5dBu EIN)
Four ¼" Balanced Inputs
Six ¼" Balanced Outputs
Turntable Input (w/ground lug and hardware RIAA preamp)
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/192kHz coaxial S/PDIF Out (switchable to AES/EBU)
Two sets of MIDI In/Out
Stereo 1/8" Speaker Outputs (configurable from stereo to 5.1)
Stereo Headphone Output


Get started with digital audio today! Order now.
1616M PCIe Digital Audio System Specifications:


Minimum System Requirements
Intel or AMD processor - 1 GHz or faster
Intel, AMD or 100% compatible motherboard & chipset
Microsoft Windows XP (SP 2) or Windows XP x64
256MB System RAM
900MB of free hard disk space for full installation
PCI 2.1 compliant slot for E-MU 1010 PCI card
CD-ROM/CD-RW or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)
General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depths: 24 bit I/O, 32 bit processing
PCIe Specification:
PCIe Base Specification 1.1 Compliant
Form Factor: Universal-keyed PCIe x1 Card
3.3V I/O
PCIe Bus-Mastering subsystem reduces CPU usage
E-MU E-DSP 32-bit DSP with 67-bit accumulator (double precision w/ 3 headroom bits)
Hardware-accelerated, 32-channel mixing, and multi-effects processing
Zero-latency direct hardware monitoring w/effects
ASIO2, WDM/MME/DirectSound, x64 Drivers
EDI (E-MU Digital Interface) proprietary 64-channel audio link over CAT-5 cable
Anti-Pop speaker protection minimizes noise during power on/off
Ultra-low jitter clock subsystem: < 1ns in PLL mode (44.1kHz, Opt. S/PDIF Sync)
Analog Line Inputs (4)
Type: servo-balanced, DC-coupled, low-noise input circuitry
A/D converter: AK5394A Level (software selectable):
Professional: +4dBu nominal, 20dBu max (balanced)
Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz-20kHz): +0.0/-.03dB Dynamic Range (1kHz, A-weighted): 120dB Signal-to-Noise Ratio (A-weighted): 120dB THD+N (1kHz at -1dBFS): -110dB (.0003%) Stereo Crosstalk (1kHz at -1dBFS): < -120dB Analog Line Outputs (6)
Analog Line Outputs (6)
Type: balanced, AC-coupled, 2-pole low-pass differential filter
D/A converter: CS4398 Level (software selectable):
Professional: +4dBu nominal, 20dBu max (balanced)
Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz - 20kHz): 0.0/-.06dB Dynamic Range (1kHz, A-weighted): 120dB Signal-to-Noise Ratio (A-weighted): 120dB THD+N (1kHz at -1dBFS): -105dB (.0006%)
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Combo Microphone Preamplifier/Hi-Z/Line Inputs (2)
Type: E-MU XTC combo mic preamp and Hi-Z/line input w/ Soft Limiter
Gain Range: +60dB
Frequency Response (min gain, 20Hz-20kHz): +0.0/-0.1dB
Stereo Crosstalk (1kHz min gain, -1dBFS): < -125dB Hi-Z Line Input:
Input Impedance: 1Mohm
Max Level: +18dBV (20.2dBu)
Dynamic Range (A-weighted, 1kHz, min gain): 118dB
Signal-to-Noise Ratio (A-weighted, min gain): 118dB
THD+N (1kHz at -1dBFS, min gain): -105dB (.0006%)
Microphone Preamplifier:
Input Impedance: 1.5Kohms
Max Level: +6dBV (+8.2dBu)
EIN (20Hz-20kHz, 150ohm, unweighted): -129.5dBu
Signal-to-Noise Ratio (A-weighted, min gain): 119dB
THD+N (1kHz at -1dBFS, min gain): -110dB (.0003%)
Phantom Power: 48V
Soft Limiter: 5dB max compression (software selectable)
Headphone Amplifier
Type: linear power amplifier
D/A converter: CS4398
Gain Range: 85dB
Maximum Output Power: 50mW
Output Impedance: 22ohms
Frequency Response (20Hz-20kHz): +0.0/-0.07dB
Dynamic Range (A-weighted): 118.5dB
Signal-to-Noise Ratio (A-weighted): 118dB
THD+N (1kHz, max gain): 600ohm load: -96dB
Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load): < -100dB
Phono Input (stereo)
Type: RIAA equalized phono input
Maximum level:
Professional: 60mV RMS
Consumer: 15mV RMS
Input Impedance: 47Kohm
Frequency Response (20Hz - 20kHz): +0.1/-0.3dB
Dynamic Range (A-weighted): 96dB
Signal-to-Noise Ratio (15mV RMS unbal input, A-weighted): 96dB
THD+N (1kHz, 15mV RMS input): -90dB (.003%)
Stereo Crosstalk (1kHz at -1dBFS): < -80dB
Digital I/O
S/PDIF:
2 in/2 out coaxial (transformer coupled)
2 in/2 out optical (software switched with ADAT)
AES/EBU or S/PDIF format (software selectable)
ADAT:
8 channels, 24-bit @ 44.1/48kHz
4 channels, 24-bit @ 88.2/96kHz (S-MUX compatible)
2 channels, 24-bit @ 176.4/192kHz
MIDI
2 in, 2 out
Synchronization
Internal crystal sync at 44.1, 48, 88.2, 96, 176.4, 192kHz
External sample rate sync via
ADAT (44.1 - 192kHz)
Optical S/PDIF (44.1 - 96kHz)
Coaxial S/PDIF (44.1 - 192kHz)
SMPTE/LTC/MTC (via optional Sync Daughtercard)
24, 25, 30 drop-frame, 30 non-drop
SMPTE to MTC, MTC to SMPTE Conversion
SMPTE Striping
Flywheel/Jam/Regenerate
Retail Box Contents
E-MU 1010 PCI Card
E-MU MicroDock M
EDI (E-MU Digital Interface) cable (3 meters)
Universal power adaptor
MIDI breakout cable
Quick Start installation guide
E-MU Digital Audio Systems CD-ROM
– Windows XP and XP x64 Drivers
– E-MU PatchMix DSP
– E-MU Power FX
– E-MU E-DSP Effects Library - Owner's Manual and Tutorials
E-MU Production Tools Software Bundle CD-ROM
– Cakewalk SONAR LE
– Steinberg Cubase LE
– Ableton Live Lite 4 for E-MU
– Steinberg Wavelab Lite
– IK Multimedia AmpliTube LE
– IK Multimedia T-RackS EQ
– Minnetonka diskWelder BRONZE
– SFX Machine LT
– E-MU Proteus X LE (over 1000 sounds included)
